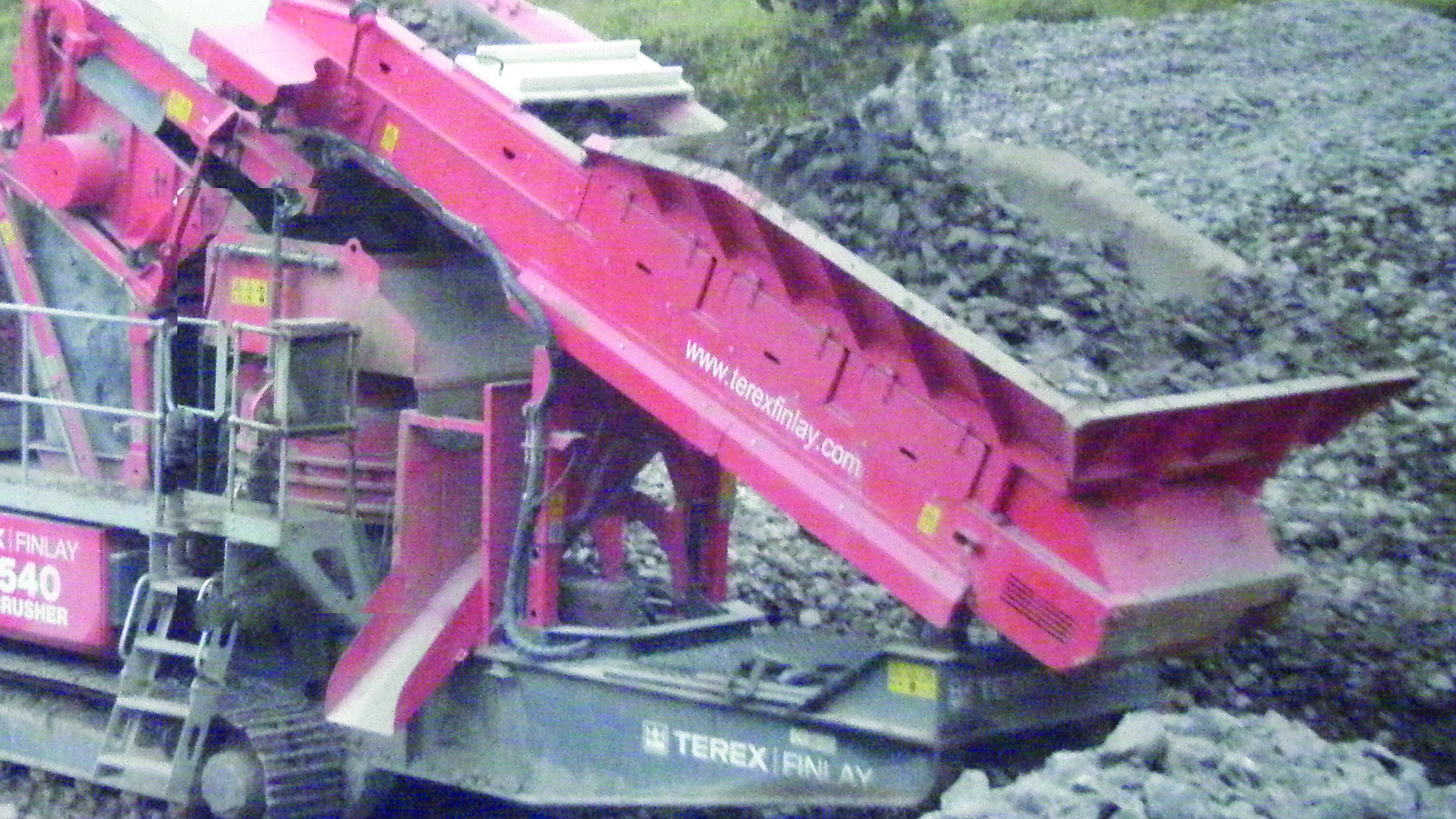

Hopper / feeder

• Hopper capacity: 5m³ (6.5yd³)
• Hopper Width at rear: 2.45m (8’)

• Hopper Width at rear with optional hopper extensions: 3.7m (12’ 2”)
• Working Angle: 24° (Pre-screen feed), 21° (Direct feed)

• Drop down rear door for auxiliary crusher feed
• Crash bar fitted to reduce impact load on feed conveyor

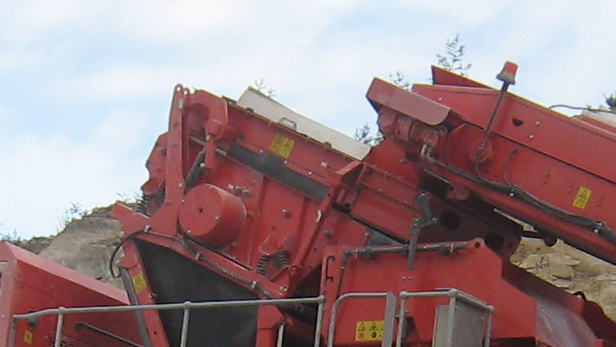

Pre-screen module

• Top deck: 1.83m x 1.22m (6’ x 4’)
• The pre-screen module will maximise production through the cone by removing as much fine material as possible before it enters the cone chamber. This will also reduce wear within the cone chamber

• Belt width: 1.4m (55”)
• Working Angle: 19° - 22°
• Hydraulically folds for transport
• Discharge Height: 3.0m (9’ 10”)
• Stockpile capacity: 44.3m³ (58yd³) @ 40°

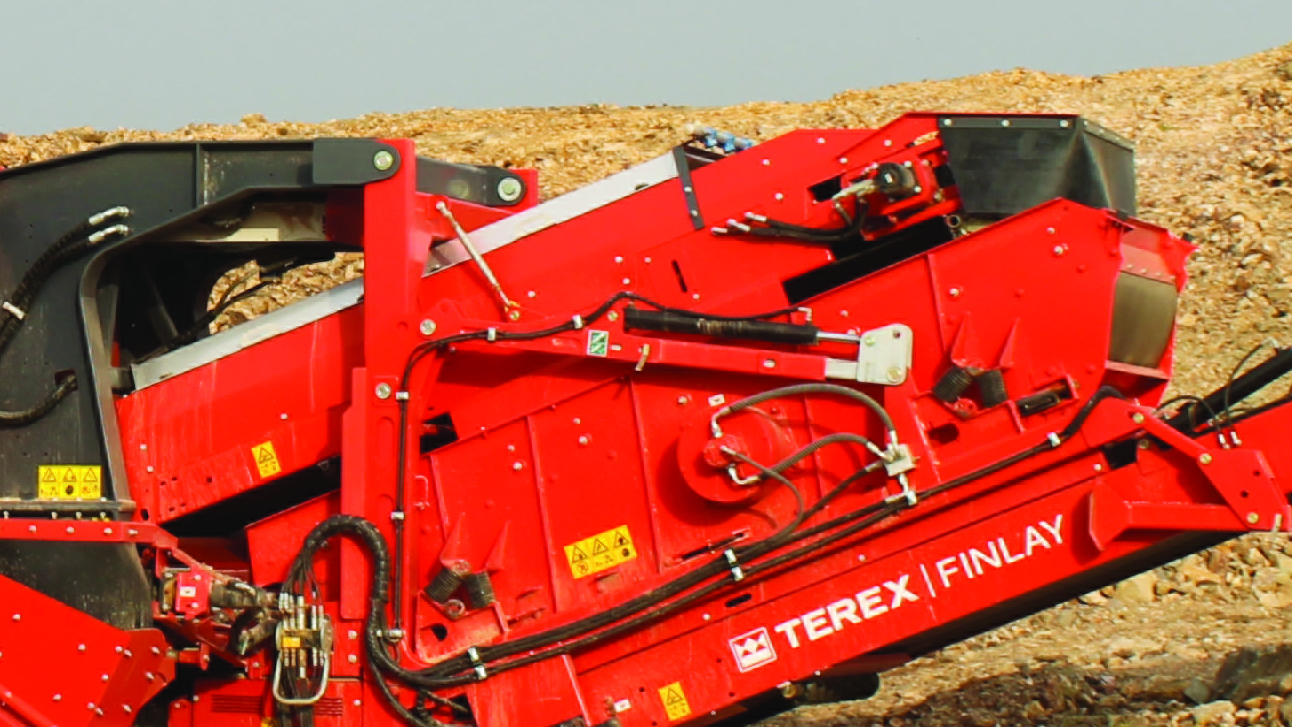

• Top deck: 3.66m x 1.53m (12’ x 5’)
• Bottom deck: 3.05m x 1. 53m (10’ x 5’)
• Total screening area: 10.1m² (110ft²)
• Screen Angle: 19° - 22°

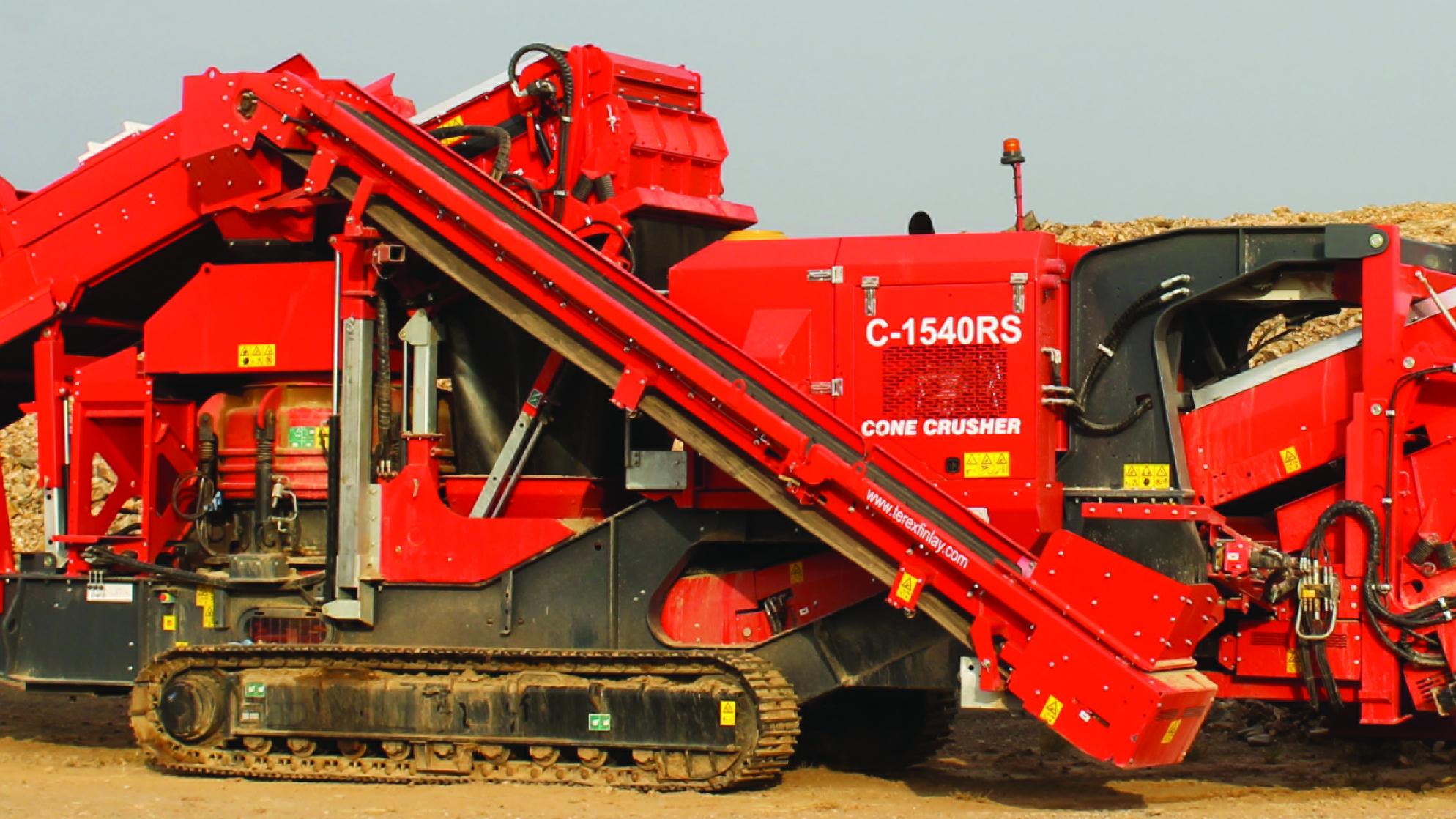

Re-circulating conveyor

• Belt width: 500mm (20”)
• Belt spec: Chevron
• Working Angle: 30°
• Hydraulically folds for transport

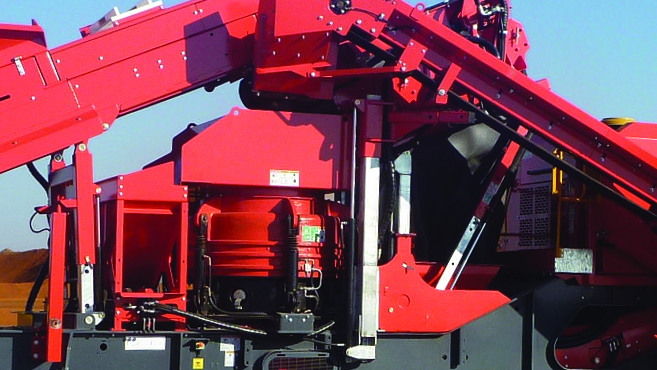

Cone chamber

• Terex® 1000mm (40”) cone chamber
• Variable speed control settings for producing a quality aggregate
• ‘On the fly’ hydraulically adjustable closed side setting with monitoring system

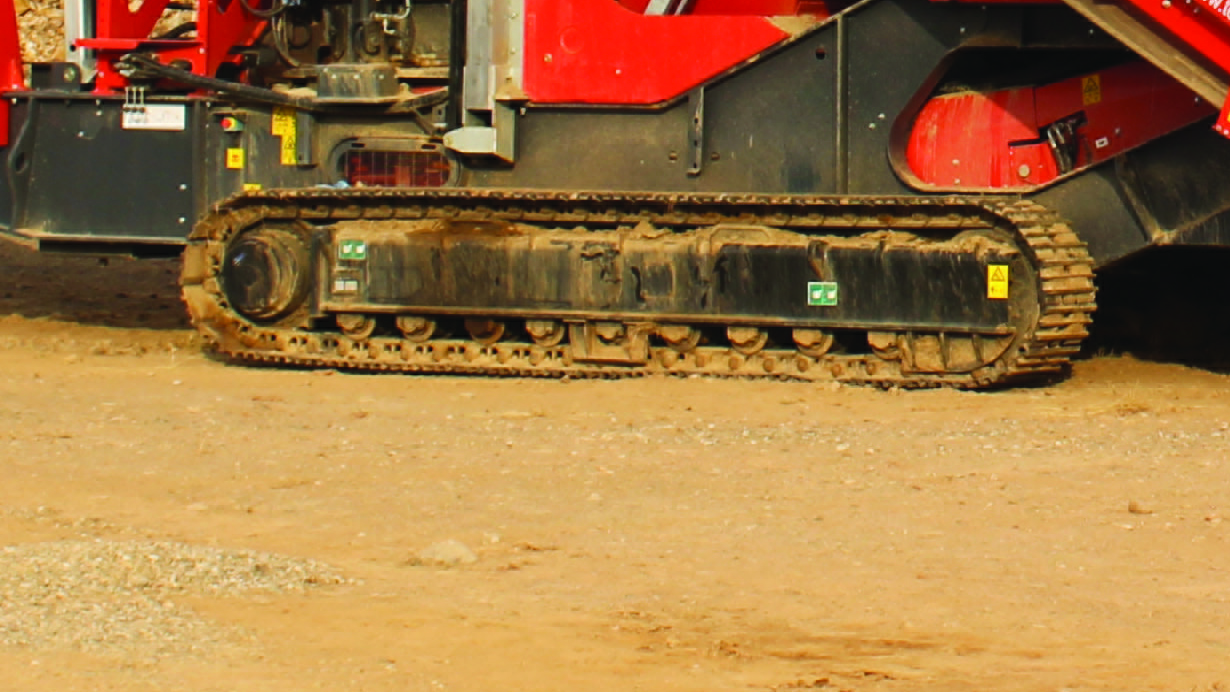

Undercarriage

• Shoe Width: 500mm (20”)
• Tracking Speed: 0.9 km/h
• Gradeability: 25°

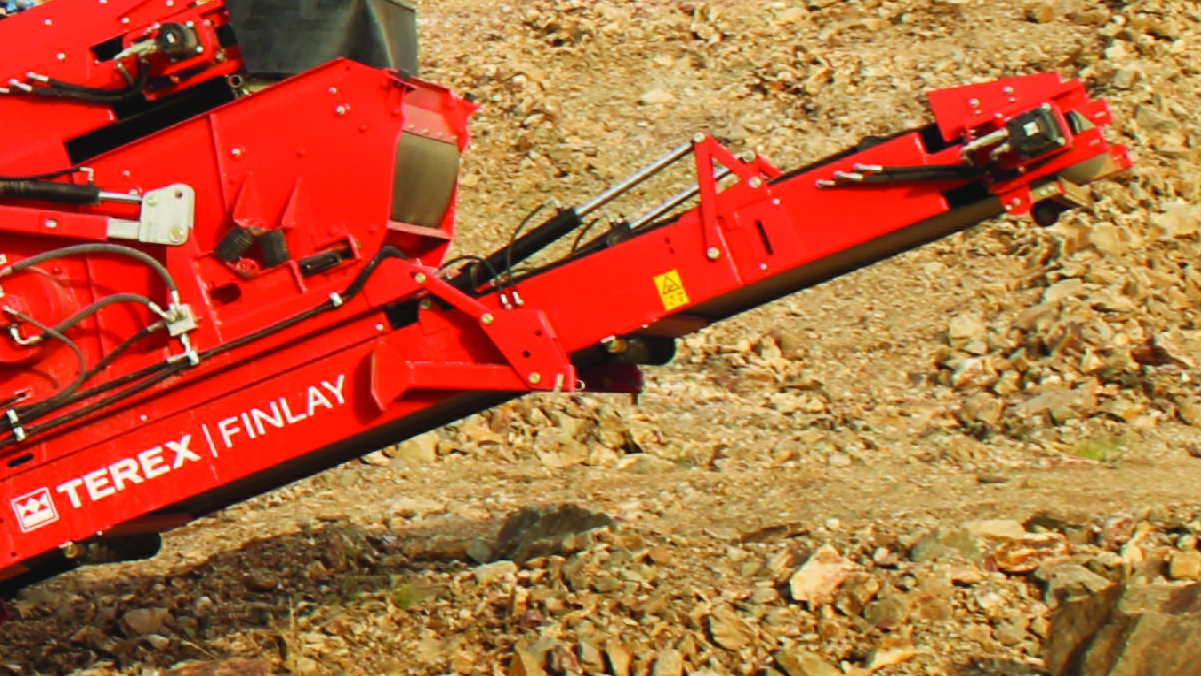

Detachable screenbox

• Quick and easy detachable screen and fines conveyor for open circuit crushing.
• The optional stacking conveyor in conjunction with the optional lower deck screen, produces a 2nd spec’d product.

T-Link Telematics

T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
