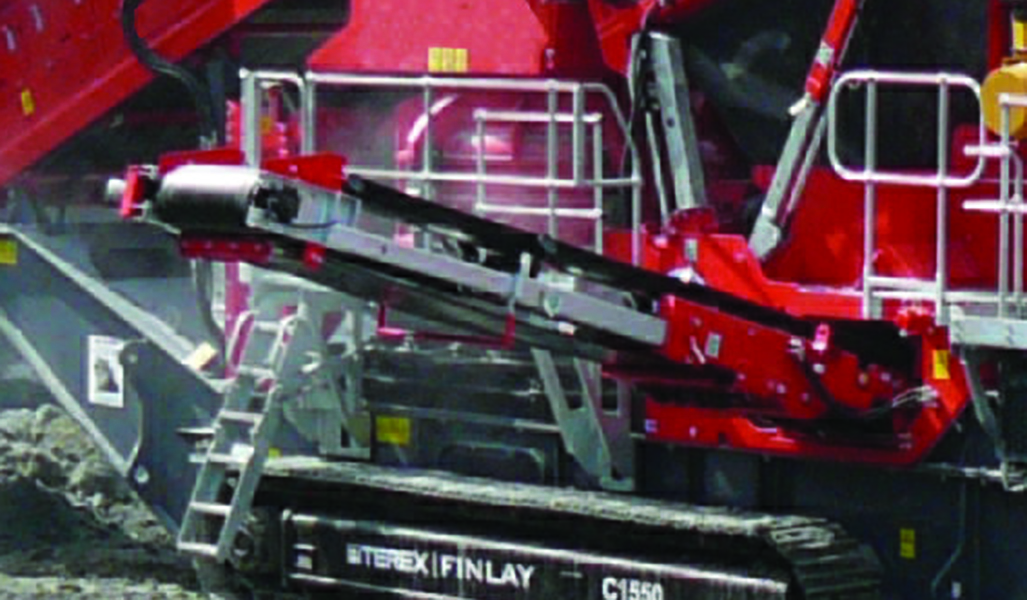

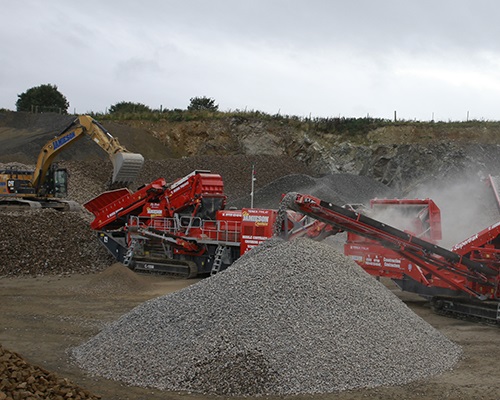

Pre-screen side conveyor

• Belt Width: 650mm (26”)
• Hydraulically folds for transport

• Discharge Height: 2.8m (9’ 2”)
• Stockpile capacity: 32.6m3 (42.6yds3) @ 40°

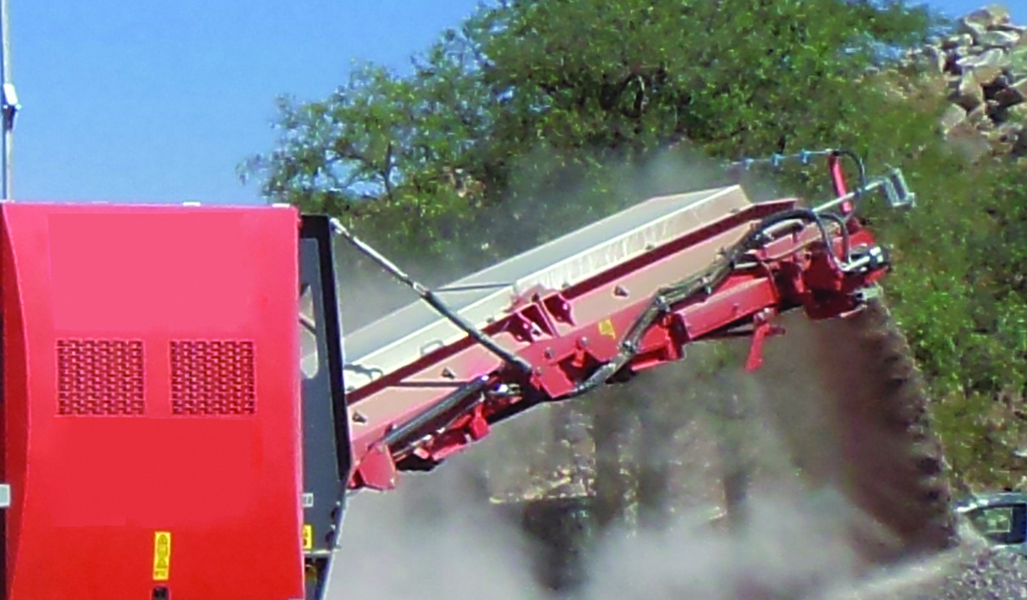

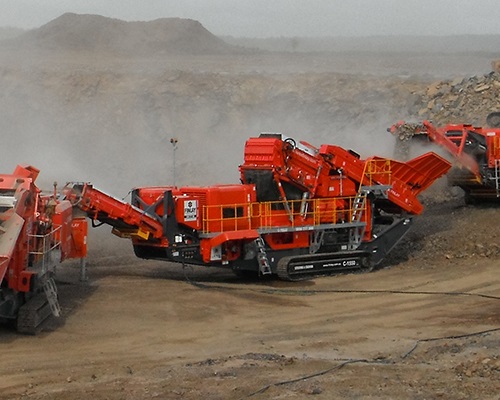

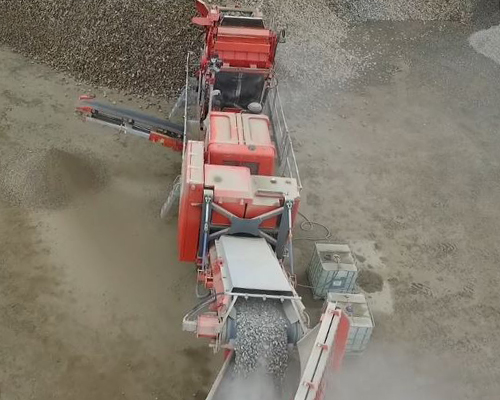

Main conveyor

• Belt Width: 1.2m (48”)
• Discharge Height: 3.8m (12’ 6”)

• Impact bars and wear resistant liners at feed point
• Dust suppression: fitted with hose and spraybars as standard (no pump supplied)
• Full length skirting to head drum
• Stockpile level sensor

• Stockpile capacity: 81.6m³ (106.7yd³) @ 40°

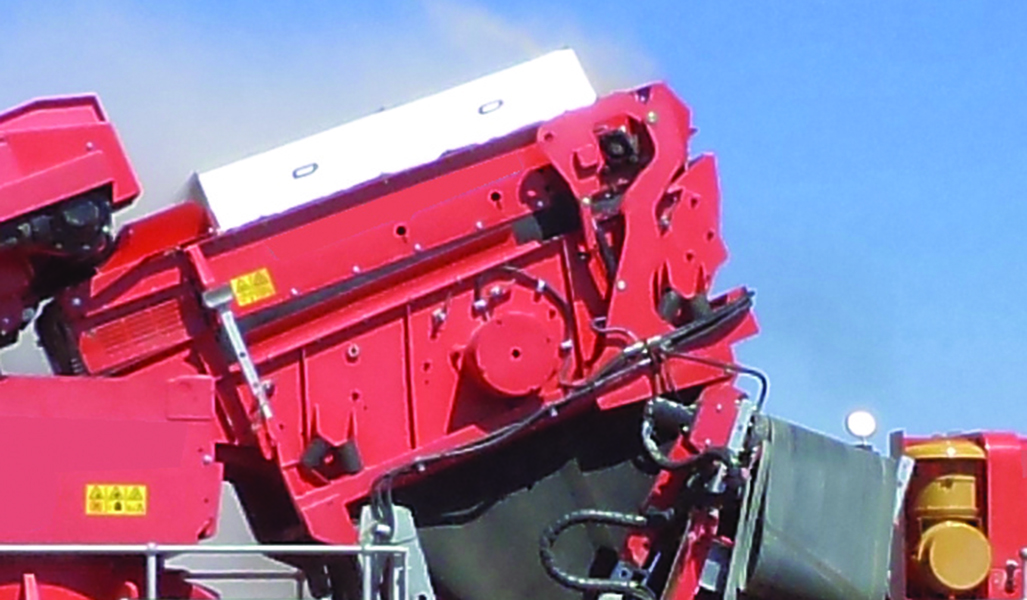

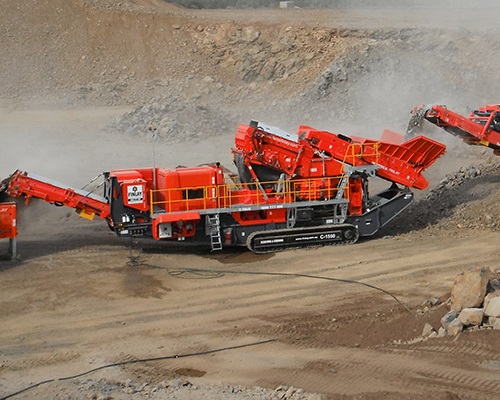

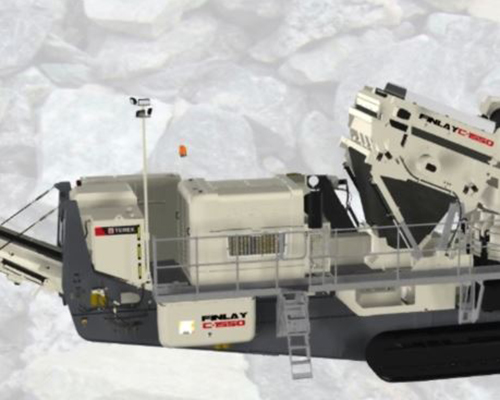

Pre-screen module

• Top deck: 2.45m X 1.53m (8’ X 5’)
• Screen Angle: 23°

• The pre-screen module will maximise production through the cone by removing as much fine material as possible before it enters the cone chamber. This will also reduce wear within the cone chamber.

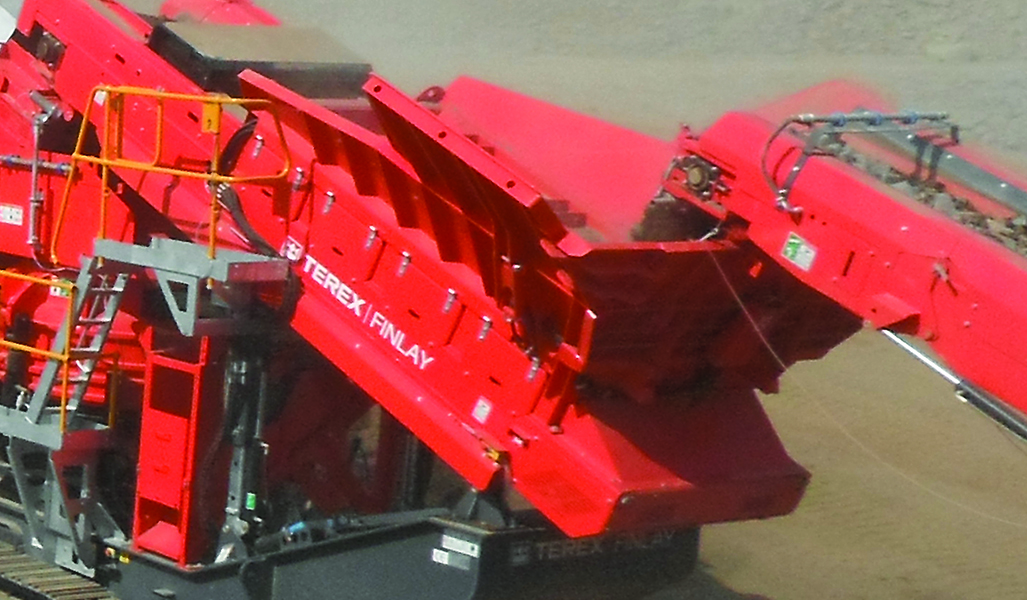

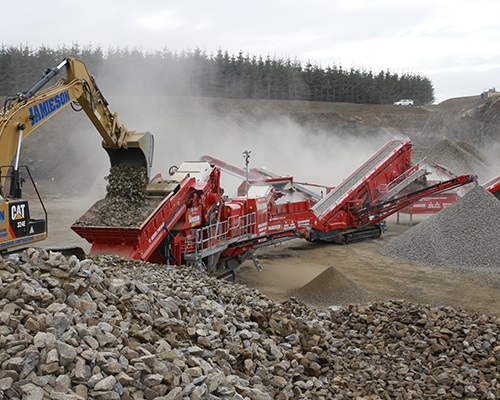

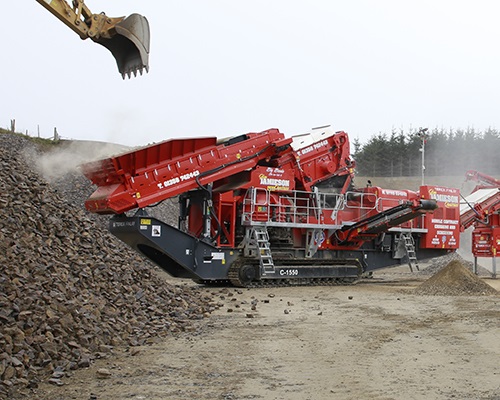

Hopper / feeder

• Hopper capacity: 8m³ (10.4yd³)
• Feed height: 3.6m (11’ 10”) (Pre-screen position), 3.3m (10’ 10”) (Direct feed position)
• Hopper Width at rear: 2.5m (8’ 2”)
• Hopper Width at rear with optional hopper extensions: 4.16m (13’ 8”)
• Belt Width: 1.2m (48”)
• Working Angle: 24° (Pre-screen feed), 22° (Direct feed)

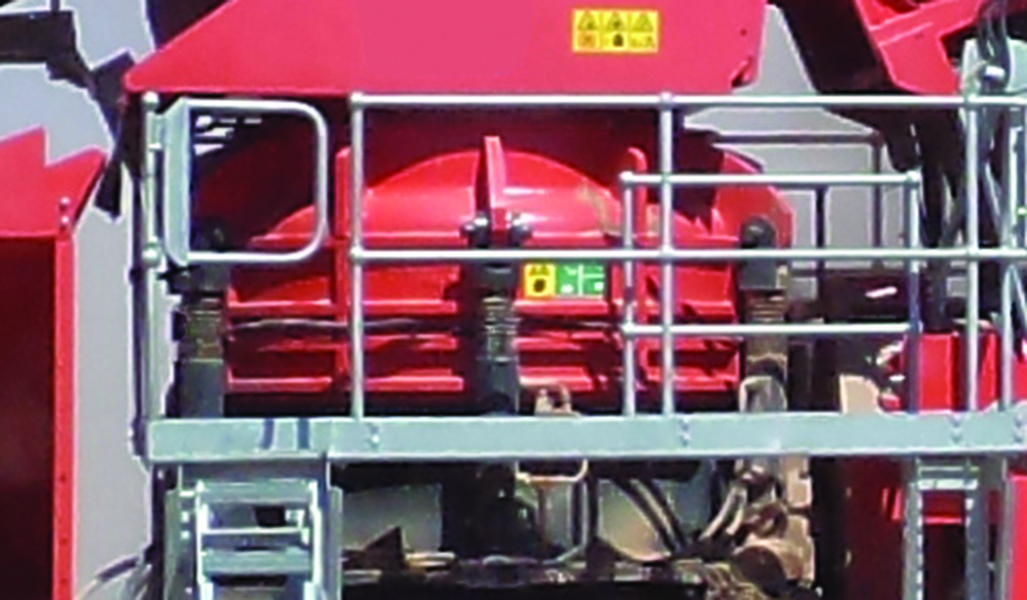

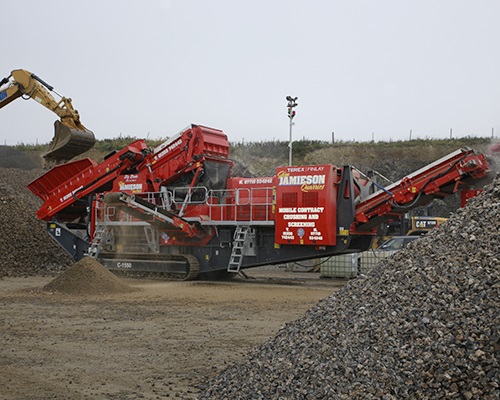

Cone crusher

• Terex® 1300mm (51”) cone chamber
• Standard medium coarse concave configuration

• Drive arrangement: Direct drive via clutch, drive shaft and v-belts
• ‘On the fly’ hydraulically adjustable closed side setting with monitoring system
• Mantle/concave wear indicator
• Maximum Closed Side Settings (CSS): 44mm (1 3/4”)
• Standard medium Coarse Configuration
• Minimum Closed Side Settings (CSS): 24mm (15/16”)

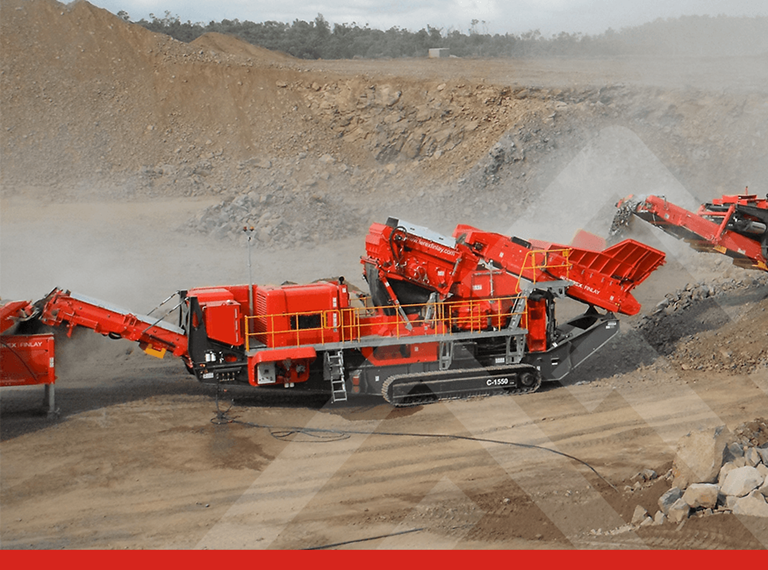

Undercarriage

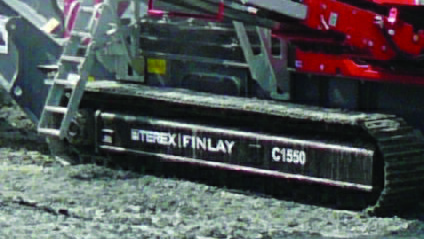

• Shoe Width: 500mm (20”)
• Tracking speed: 1.1 km/h
• Gradeability: 25°

T-Link Telematics

T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
