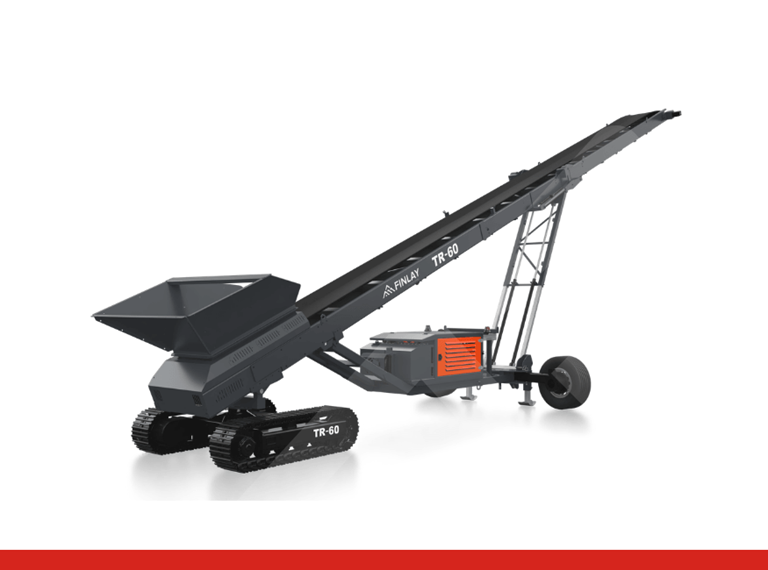

TR-60

The Finlay® TR-60 is a robust and highly mobile rotating stacker conveyor designed to maximise stockpiling efficiency across a range of applications. With a 60-foot conveyor and variable discharge heights up to 8.44m (27’ 8”), it offers exceptional flexibility and high throughput performance of up to 500 TPH, depending on material.

Key Features:

  • Maximum stockpiling capacity of up to 4574 m³ (5982 yd³)
  • Variable operating angle from 10° to 24° for precise material placement
  • 900mm (36”) wide conveyor belt with plain or optional chevron belt
  • High-performance CAT Stage V engine (37kW) for fuel efficiency and reliability
  • Track-mounted for easy mobility and site setup
  • Optional features include dual power, radial functionality, and heavy-duty belt upgrades
Request a Quote

Technical Documentation

Measurements

Belt Width 36 in 900 mm
Conveyor Length 60 ft 18 m 30 cm
Max Discharge Height 27 ft 8 in 8.4 m
Max Capacity 5,982 Cu Yd 4,574 m3
Transport Weight 19,800 lbs 9,000 kg

Power

Net Engine Power: Tier 4F / Stage V CAT C 1.7 50 HP / CAT C 2.8 Stage V 73 HP CAT C 1.7 37 kW / CAT C 2.8 Stage V 55 kW
Net Engine Power: Tier 3 CAT C2.2 50 Hp CAT C2.2 37 kW

Productivity

Output Potential 331 US tph 300 tph
