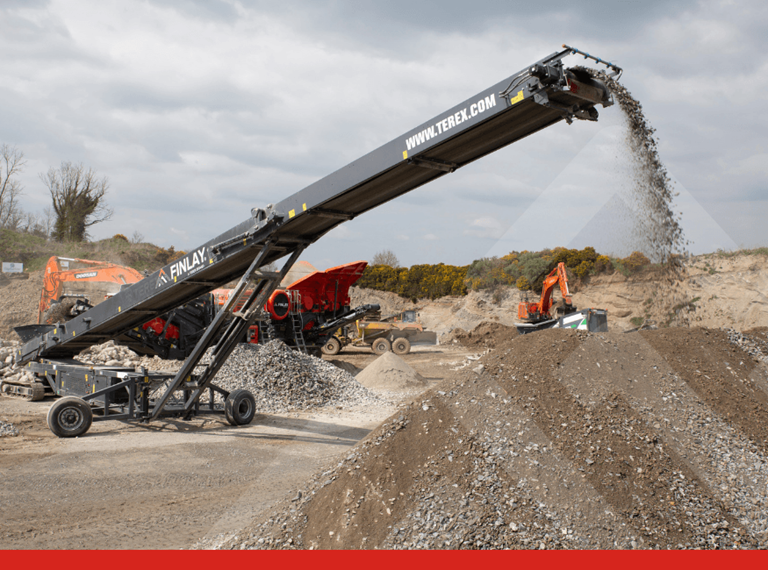

The Finlay TR-80 Radial Stockpiling Conveyor is the ideal solution for stockpiling material after mobile crushing and screening plants to build a desegregated stockpile and ensure a consistent quality product.

It can also be integrated seamlessly into stationary plants. The mobility and flexibility of the TR-80 radial conveyor reduces / eliminates the use of a wheel loader on site and the inbuilt strength of the machine means it can be utilized in a wide range of applications from heavy duty primary jaw crushing to light duty screening applications.

With a maximum discharge height of 10.18m (33’ 5’’) when operated in conical mode the machine will stockpile 1811m³ (2369yd³) of material. When configured to operate at 120° Kidney Bean mode the machine will stockpile 7566m³ (9897yd³) of material.

Key features:

• Inbuilt safety measures engineered into the machine include hydraulic feed height adjustment of the feedboot and pinless deployment of the main conveyor.
• For efficient onsite mobility the machine is fitted with crawler tracks and pendant control system as standard, optional radio remote control is also available to enable easy movement and transfer between locations.
• The machine features a 22.82m (74’ 10”) discharge conveyor that has the capacity to transfer up to 600tph (661 US tph) of material.
