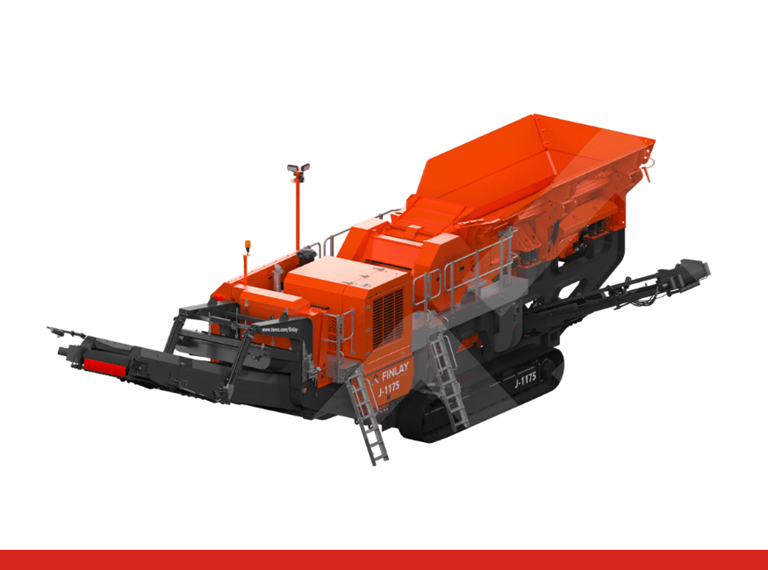

J-1175 Electric

The Finlay® J-1175 electric jaw crusher has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.

The plant’s electrically driven power systems and crushing chamber requires low energy requirements without compromising on performance and flexibility in applications.

For ease of transport and flexibility the machine is fitted with an onboard engine that can be engaged for powering the tracks to enable movement around the job site.

As the world moves towards a more environmentally friendly future investing in electric equipment can position your business to a long term sustainability and compliance with changing regulations.

Key Features:

  • Significant reduction in operating costs by powering from grid electricity.
  • Reduced carbon footprint with the elimination of Co2 gas emissions and reduction in engine noise when operating in both urban and indoor environments.
  • Electric powered equipment typically require less maintenance than diesel counterparts reducing maintenance costs.
  • Maximised machine availability and uptime as scheduled service interval periods are longer.
  • Electric crushers are generally more energy-efficient and cost effective to operate compared to diesel powered crushers.

Technical Documentation

Power

Net Engine Power: Tier 3 / Stage IIIA Caterpillar C9.3B 335 hp Caterpillar C9.3B 250 kW
Net Engine Power: Stage V Scania DC09 345 hp Scania DC09 257 kW
Net Engine Power: Tier 4F / Stage IV Scania DC9 345 hp Scania DC9 257 kW

Measurements

Transport Height 11 ft 6 in 3 m 50 cm
Working Dimensions
Transport Length 47 ft 8 in 14 m 50 cm
Inlet Opening 42" x 30" 1070mm x 760mm
Transport Width 9 ft 6 in 2 m 90 cm
Weight 111,024 lbs incl. Options 50,360 kg incl. Options

Productivity

Output Potential 496 US tph 450 tph
