J-1175

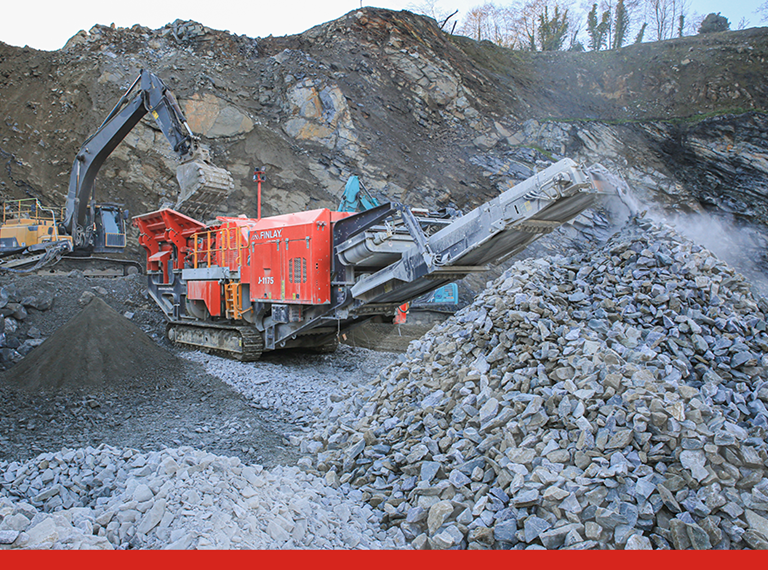

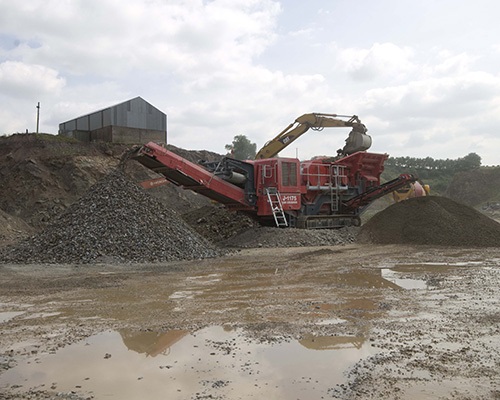

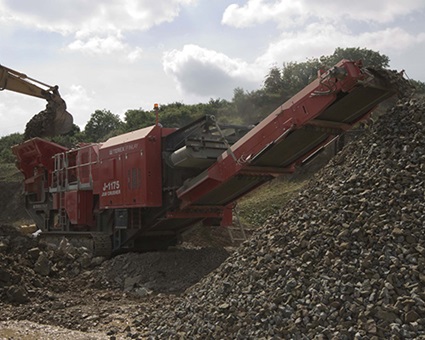

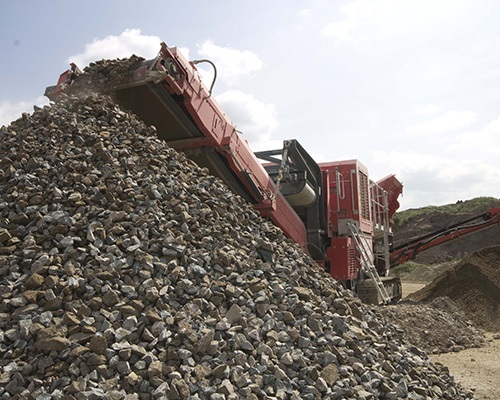

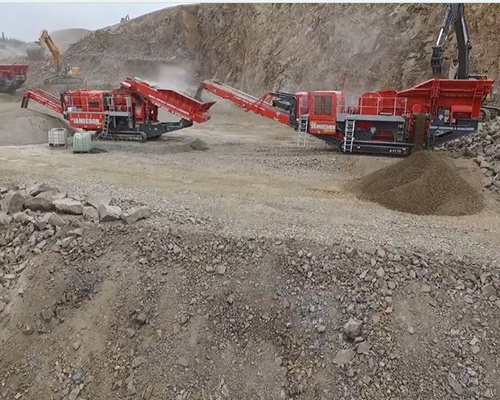

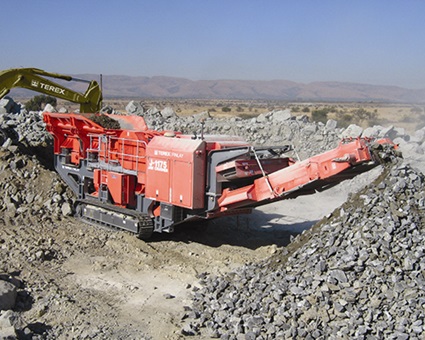

The Finlay J-1175 Tracked Jaw Crusher is a high performance and aggressive mobile crusher. Incorporating a Terex Jaques JW42 jaw crusher and a heavy duty vibrating grizzly feeder, the Finlay J-1175 gives optimum production in a range of applications.

Its compact size, quick set up times, ease of transport and simple maintenance make the Finlay J-1175 Tracked Jaw Crusher ideal for quarrying, mining, demolition and recycling applications.

Key Features:

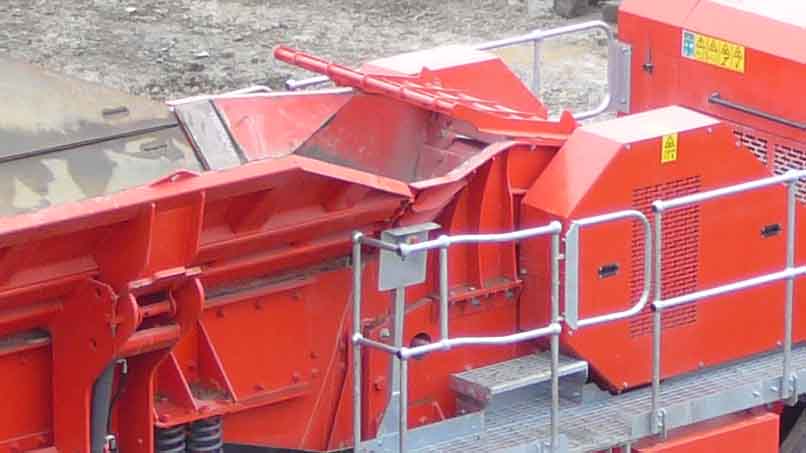

  • The robust high performance hydrostatic driven single toggle jaw chamber provides high capacity with large reduction ratio’s.

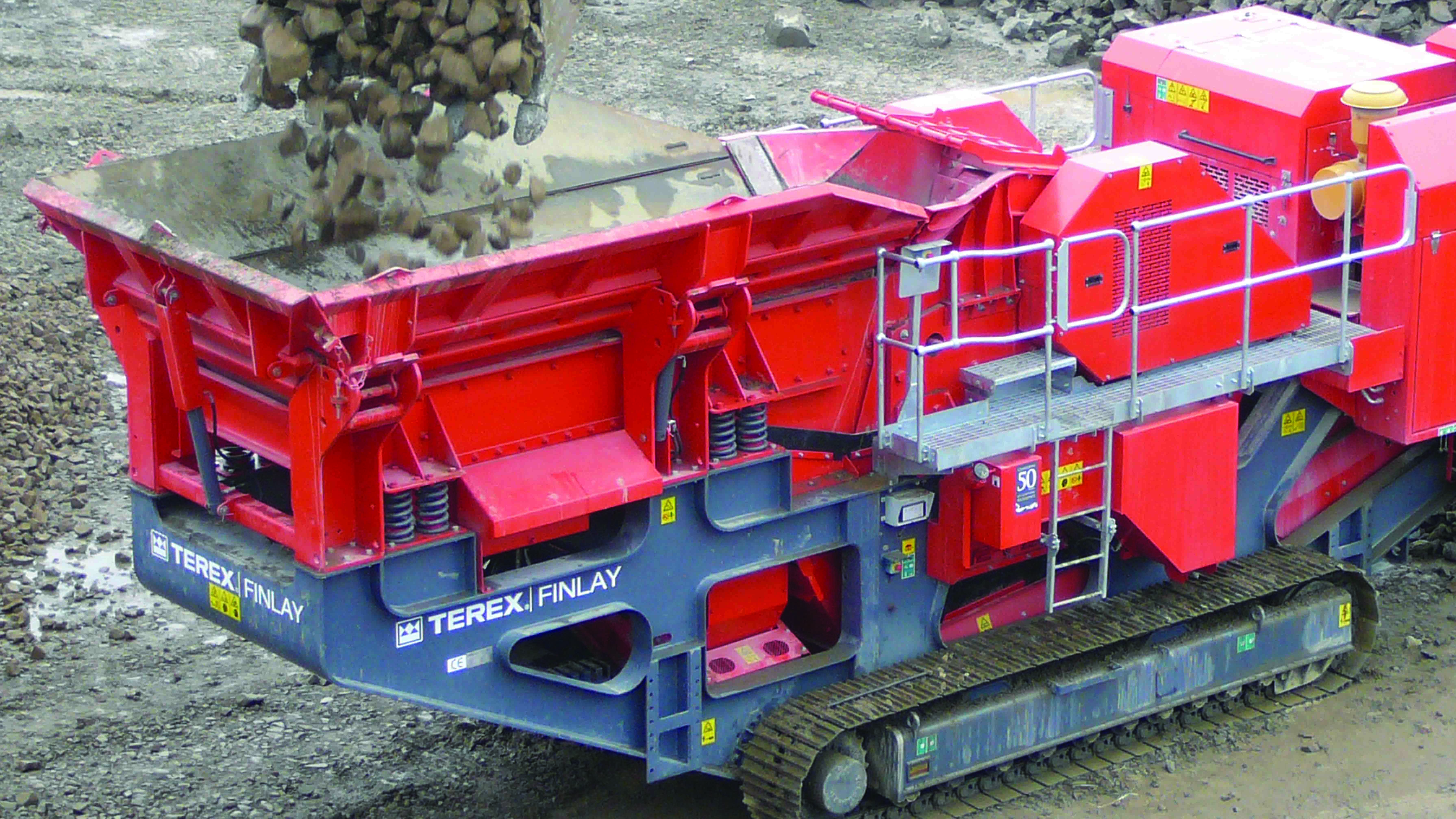

  • Automatic variable speed VGF ensures continuous choke feeding of the crushing chamber for optimal productivity.
  • High powered hydrostatic drive ensures precise chamber controls and reverse functionality for clearing blockages and assisting in demolition and recycling applications.
  • Fully hydraulic closed side setting minimises downtime and offers quick adjustment.
Request a Quote

Technical Documentation

Power

Net Engine Power: Tier 3 / Stage IIIA Caterpillar C9.3B 335 hp Caterpillar C9.3B 250 kW
Net Engine Power: Stage V Scania DC09 345 hp Scania DC09 257 kW
Net Engine Power: Tier 4 Final Scania DC9 345 hp Scania DC9 257 kW

Measurements

Transport Length 47 ft 8 in 14 m 50 cm
Weight 111,024 lbs incl. Options 50,360 kg incl. Options
Inlet Opening 42" x 30" 1070mm x 760mm
Transport Width 9 ft 6 in 2 m 90 cm
Transport Height 11 ft 6 in 3 m 50 cm
Working Dimensions Height 12' 1'' | Width 20' 4'' | Length 51' 8'' Height 3.9m | Width 20.4m | Length 15.7m

Productivity

Output Potential 496 US tph 450 tph
Download Specifications
