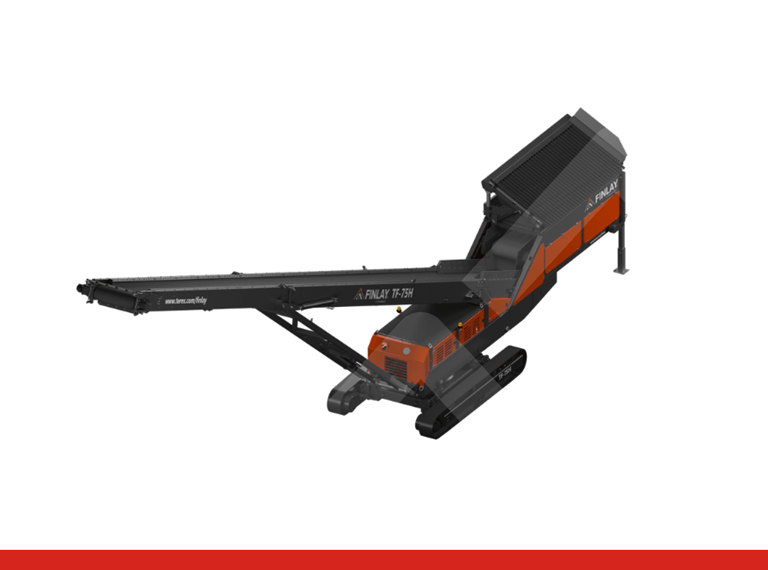

The Finlay® TF-75H high level orbital feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types. For enhanced onsite mobility and flexibility the machine is fitted with an orbital centre mounted slew bearing that enables 360° rotation and movement of the hopper/feeder.

The large hopper/feeder has a capacity of 7m³ (9.2yd³) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a ‘metered or controlled’ feed of material.

The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons.

Key features:

• 360 degree movement for accurate product placement and operations requiring the machine to move parallel to the direction of material flow.
• The pinless deployment of the main conveyor creates a safer working environment and enables rapid on site set up and tear down.
• Hydraulic variable speed control of the feeder ensures efficient transfer from the hopper to the main discharge conveyor.
• The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine
• The machine features a 22.5m (73’ 10”) discharge conveyor that has the capacity to transfer up to 600tph (US 661tph) of material.
