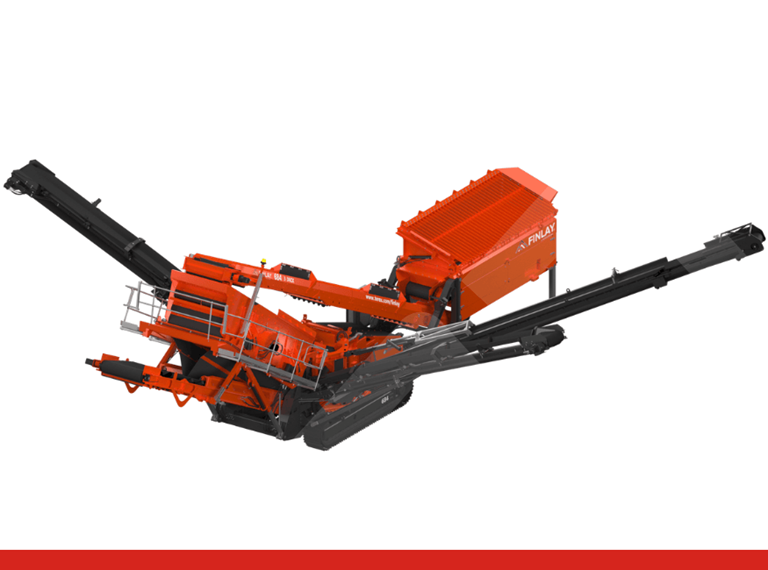

The Finlay® 684 3 deck screener is a compact easily transportable machine that offers operators rapid set up and tear down times.

The screenbox features three large 4.3m x 1.7m (14’ x 5’ 7”) inclined screens giving a large screening area of 236ft2 to provide efficient screening and high capacity. The screenbox features quick wedge tensioning, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes.

All four discharge conveyors are adjustable and hydraulically fold for transport. The fourth product ‘oversize plus’ conveyor has variable tilt and side slew to accurately discharge material for recirculation and stockpiling.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key Features:

• Triple deck 4.3m x 1.7m (14’ x 5’ 7”) screen with full catwalk access.
• The fourth (oversize plus) conveyor provides variable tilt and slide slew capability to accurately discharge materials for recirculation to crushers or for stockpiling.
• Maximum utilisation of three 4.3m x 1.7m (14’ x 5’ 7”) decks provides ultra-effi cient screening capabilities even at small aggregate sizes.
• A combination of quick wedge tensioning, convenient access holes and hydraulic tensioning on the bottom deck ensure mesh set up and change out times are kept to an absolute minimum.
• T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
