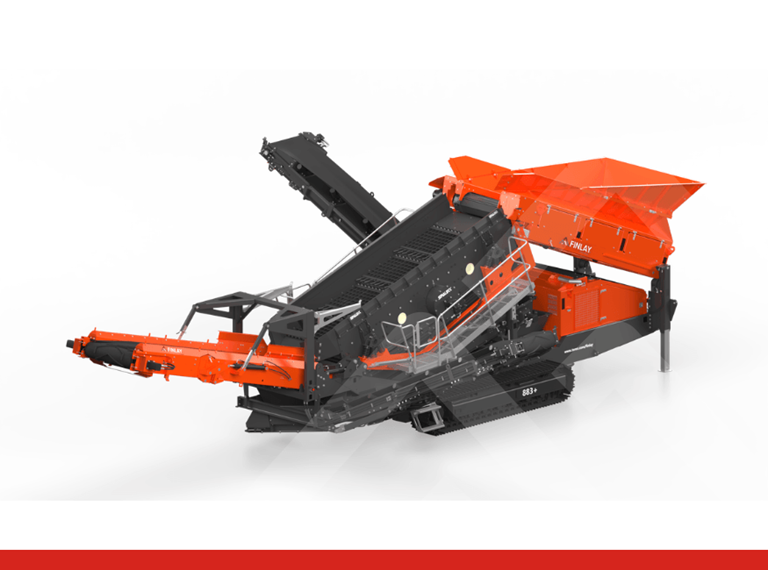

883+ Spaleck Hybrid



The Finlay® 883+ Spaleck Screener is the ultimate in mobile scalping screening and separation technology. At the heart of the screen is the 2 deck German designed and constructed high performance recycling waste screen with Flip-Flow-Screen Elastica.

The unique stepped top deck design combined with state of the art flip flow technology on the bottom deck catapults the 883+ Spaleck Screener into a class of its own. Its processing capabilities and application flexibility make the machine the only all in one mobile solution for the processing and separation of recycling materials such as incineration slag, shredder light and heavy fraction, scrap metal, electronic scrap, C&D, C&I, bulky waste, compost, plastic fractions, biomass, topsoil etc.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key Features:

  • Nearly blockage-free screening in the upper and lower deck thanks to tried and tested 3D and Flip-Flow technology.
  • The 3D screening segments guarantee correct grain size with no long pieces or extraneous material for the tension shaft screen on the lower deck.
  • The Flip-Flow screen with screwless mounted screen mats avoids unnecessary cleaning.
  • This combination of 2 system solutions in 1 machine enables you to make enormous savings on conveying equipment, steel structures and space.
  • T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Technical Documentation

Measurements

Screen 16’ x 5’ 4.8m x 1.53m
No. Stockpilers 3 3
Weight 73,414 lbs 33,300 kg

Power

Net Engine Power: Tier 3 Equivalent Caterpillar C4.4 130hp Caterpillar C4.4 97kW
Net Engine Power: Tier 3 / LRC CAT C4.4 - 130 hp CAT C4.4 - 97kW
Net Engine Power: Tier 3 CAT C4.4 - 111.3 hp CAT C4.4 - 83 kW
Net Engine Power: Tier 4F / Stage V DEUTZ TCD 3.6L4 - 123 Hp Dual Certified DEUTZ TCD 3.6L4 - 92 kW Dual Certified

Productivity

Output Potential 661 US tph 600 tph
