I-130RS

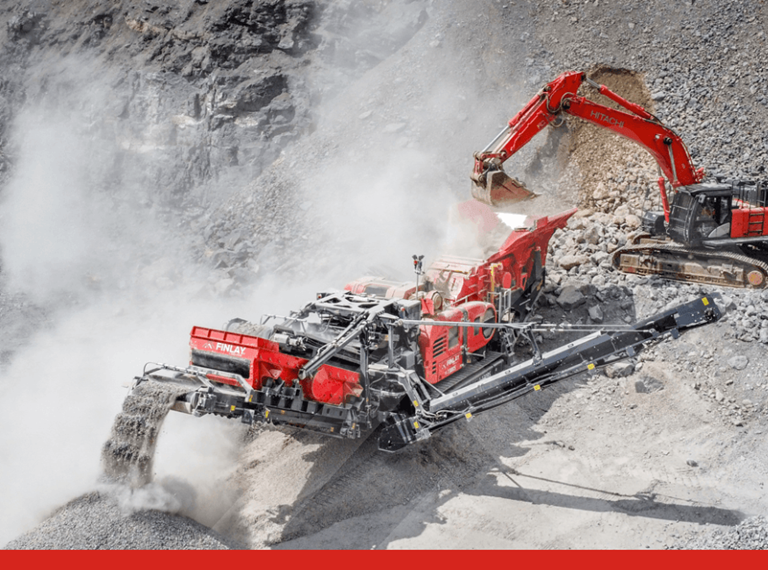

The Finlay I‑130RS is the ultimate in versatility, combining high-performance crushing with an advanced 2‑deck afterscreen and recirculation system in one mobile platform.

Designed for operators who demand flexibility, it delivers multiple product outputs and adaptable configurations — from closed-loop operation to straight-through crushing — all from a single machine.



Key Features:

  • Crush, screen and recirculate in one platform: Reducing the need for additional equipment.


  • High-capacity 2-deck afterscreen: Enables efficient material separation and increased throughput.



  • Multiple product configurations: With recirculation, stockpiling and optional mid-grade conveyor for added output streams.



  • Quick-detach afterscreen module: Allows rapid conversion to open-circuit crushing.



  • Advanced recirculating system: With slewing conveyor for flexible material handling and stockpiling.



  • Direct drive impact chamber: Delivering powerful reduction, efficiency and consistent performance.



  • Highly versatile machine:  With a wide range of options to suit quarrying, recycling, asphalt and C&D applications.



  • Improved productivity and site efficiency: By producing up to 4 products from a single machine.

Technical Documentation

Productivity

Output Potential 529 US tph 480 tph

Power

Net Engine Power: Tier 2 Scania DC13 335kW (450hp) Scania DC13 335kW (450hp)
Net Engine Power: Tier 4F/Stage V Scania DC13 335kW (450hp) Dual Certified Scania DC13 335kW (450hp) Dual Certified

Measurements

Weight 137,788 lbs 62,500 Kgs
Transport Length 63 ft 40 in 19 m 6 cm
Transport Height 11 ft 10 in 3 m 60 cm
Rotor Size 49” x 42” 1245mm x 1065mm
Working Dimensions Height 16' 10'' | Width 20' 5'' | Length 60' 9'' Height 5.14m | Width 6.24m | Length 18.5m
Transport Width 10 ft 11 in 3 m 33 cm
