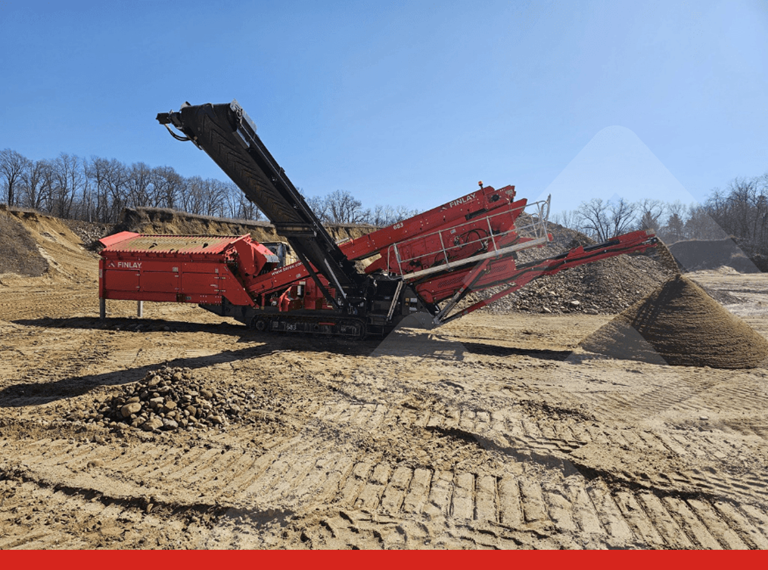

683



The Finlay® 683 inclined screen is one of the most popular screening products and is ideally suited for small to medium sized operators and contractors who require a versatile product capable of operating in a number of applications such as sand and gravel, aggregates and recycling.

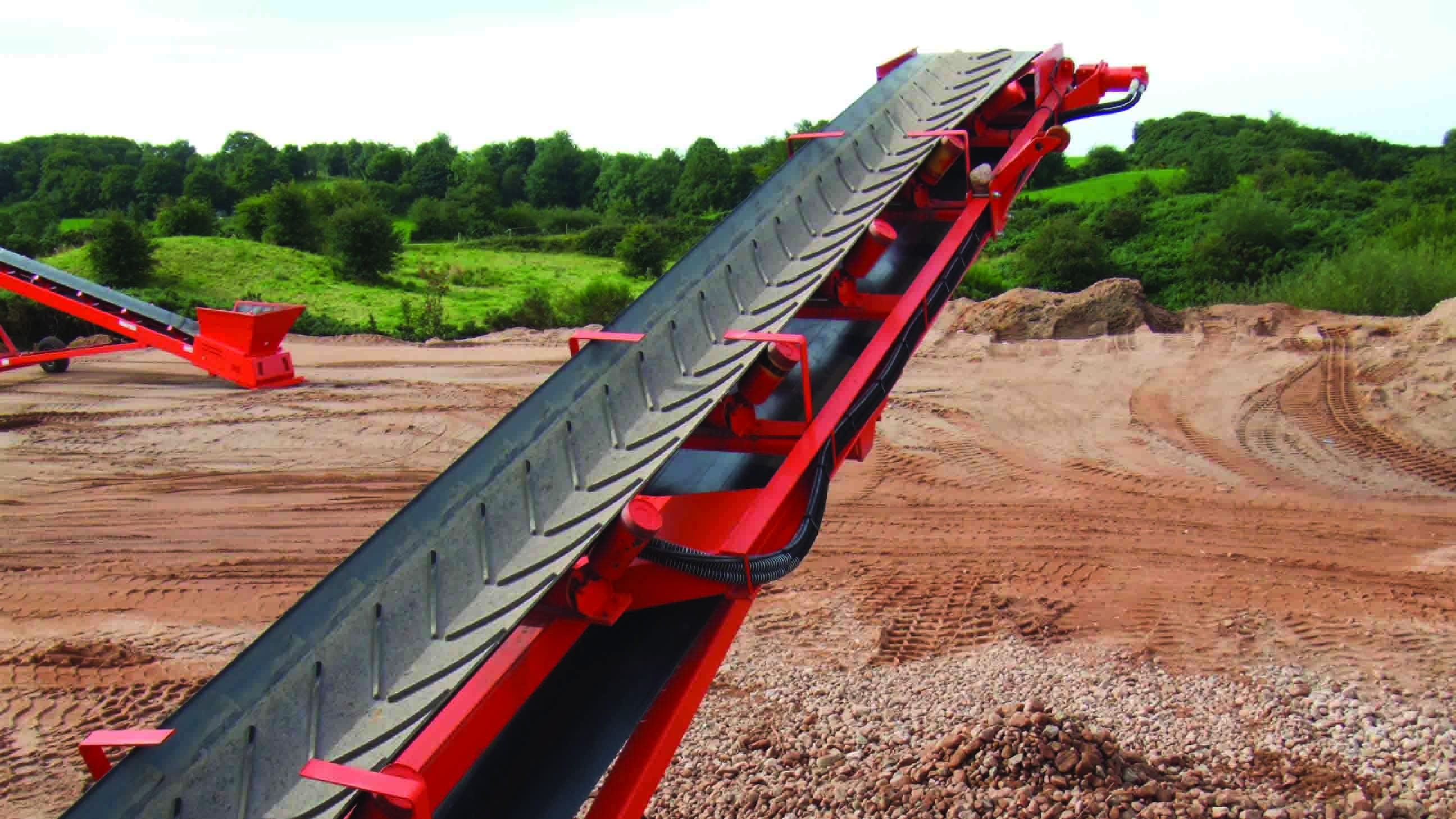

Remote tipping reject grid, hydraulic screen tensioning of bottom deck mesh and three on-board hydraulic folding conveyors are standard.

Key Features:

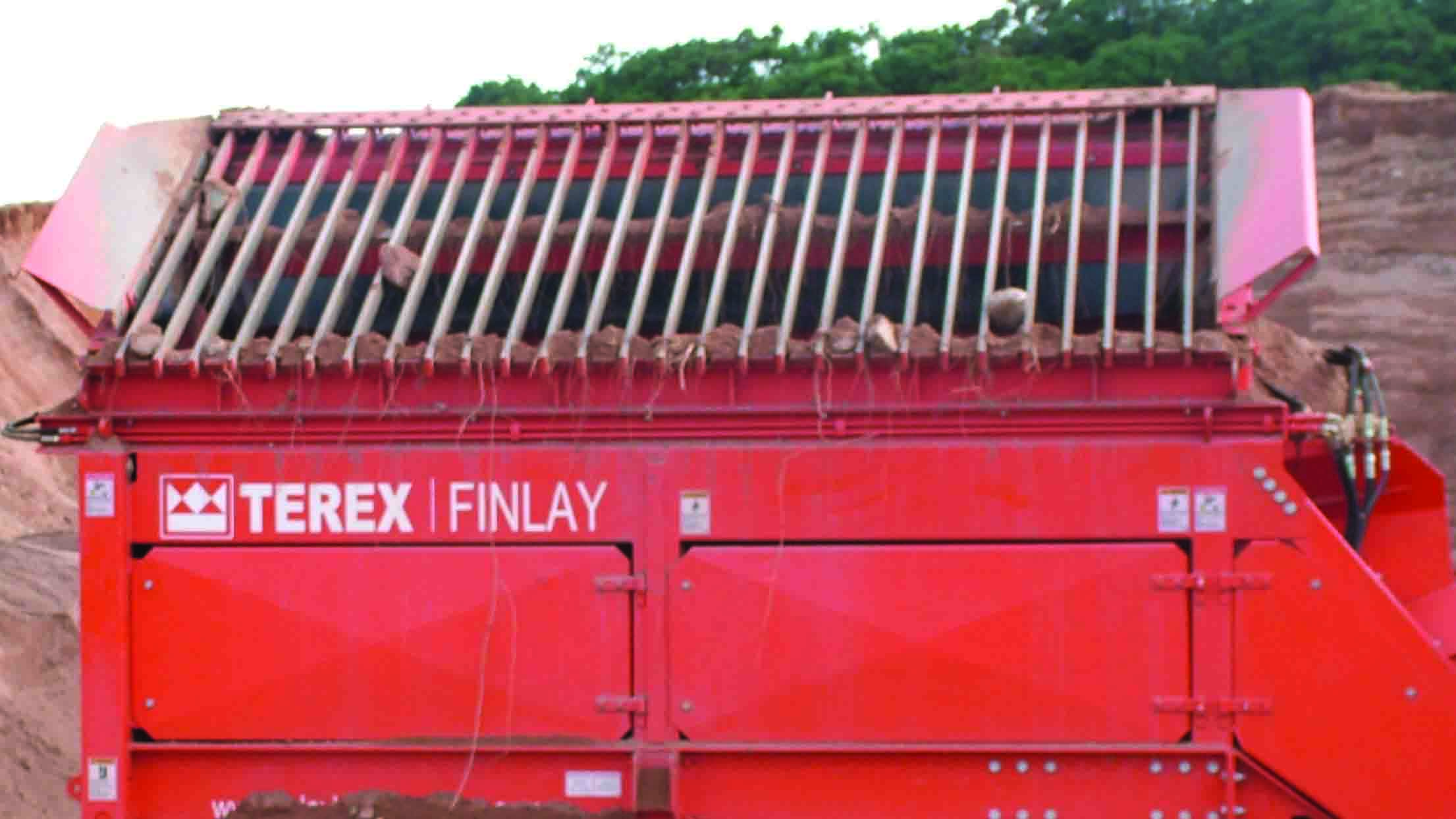

  • 8m³ hopper (10.5yd3) with 4.25m (14’) tipping grid.
  • Remote control hydraulic tipping reject grid c/w grouser bars 4.25m x 100mm spacing (14’ 0” x 4”).
  • 3.66m x 1.52m (12’ x 5’) top deck screen and 3.00m x 1.52m (10’ x 5’) bottom deck screen Hydraulic tensioning (bottom deck screen mesh).

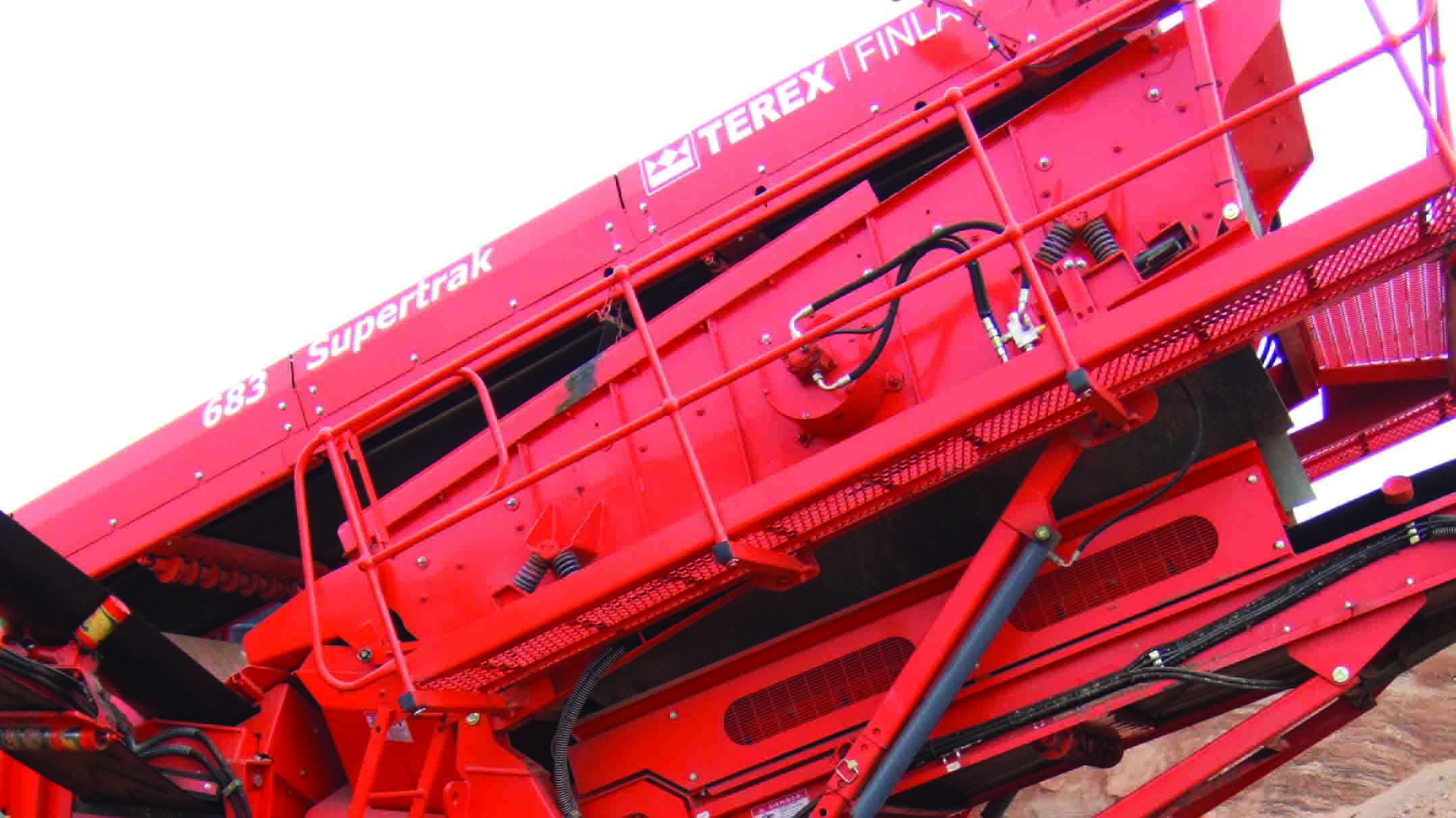

  • Catwalk around screen c/w handrail, kick board and access ladder.
  • Screen box reject chute (1).

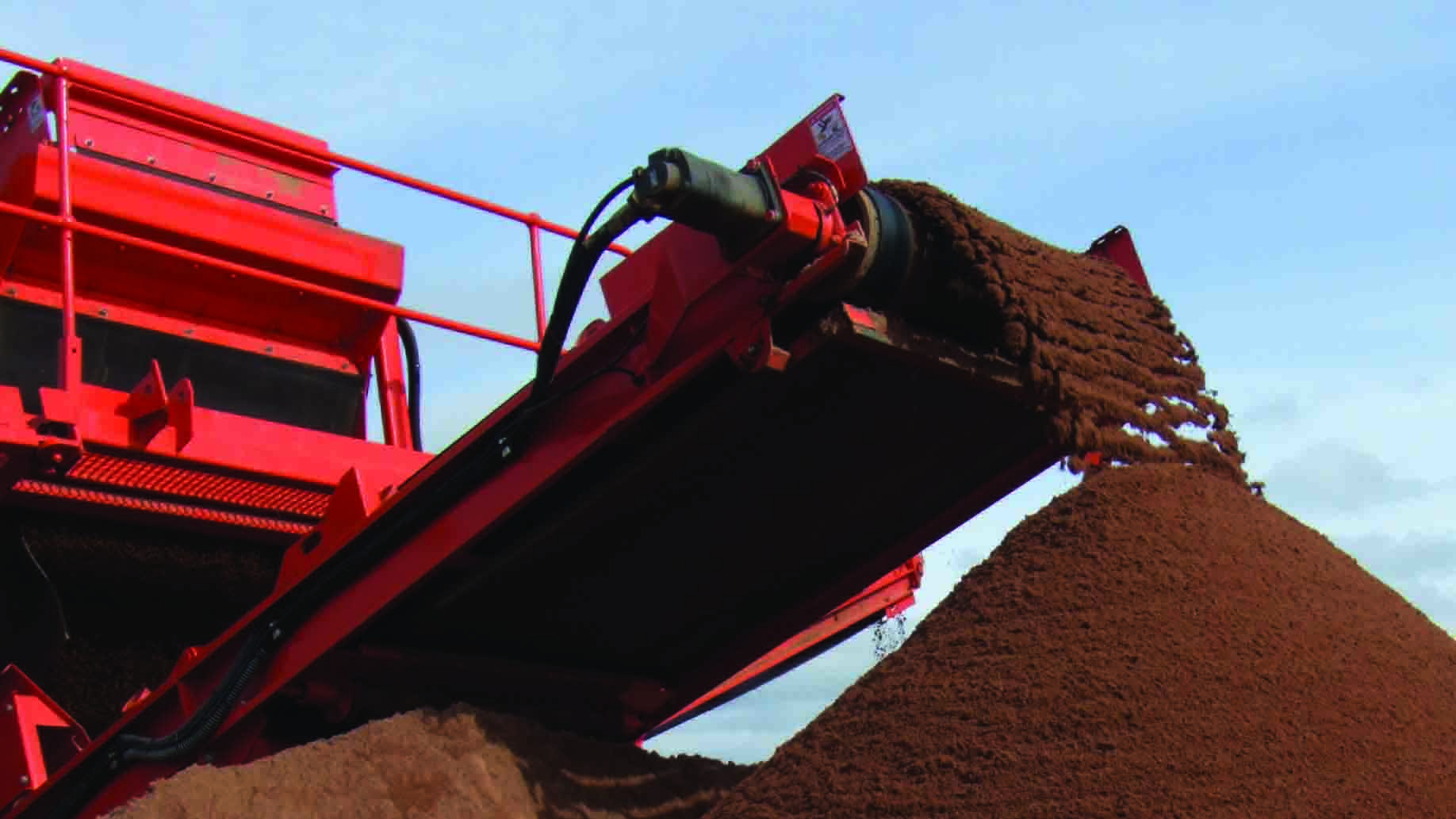

  • Skirting on main conveyor.
  • Heavy duty undercarriage unit with 400mm wide tracks.
  • Control operation of tracks via hand-held set with 5m connection lead with heavy duty square connector.
  • Guards to M & Q specification.
  • Low level greasing & emergency stops (4).

Technical Documentation

Measurements

Transport Length 49 ft 3 in 15 m
Transport Height 10 ft 8 in 3 m 25 cm
Screen 12’ x 5’ 3.7m x 1.5m
Transport Width 9 ft 10 in 3 m
Weight 53,462 lbs incl. Options 24,250 kg incl. Options
Working Dimensions Height 17' 5'' | Width 56' 7'' | Length 54' 0'' Height 5.3m | Width 17.25m | Length 16.5m

Power

Net Engine Power: Tier 3 / Stage IIIA T3 CAT C4.4 111 hp or T3 CAT C4.4 130 hp T3 CAT C4.4 83 kW or T3 CAT C4.4 97 kW
Net Engine Power: Tier 4 Final / Stage V CAT C3.6 110 hp Dual certified CAT C3.6 82 kW Dual certified

Productivity

Output Potential 441 US tph 400 tph
