TC-80

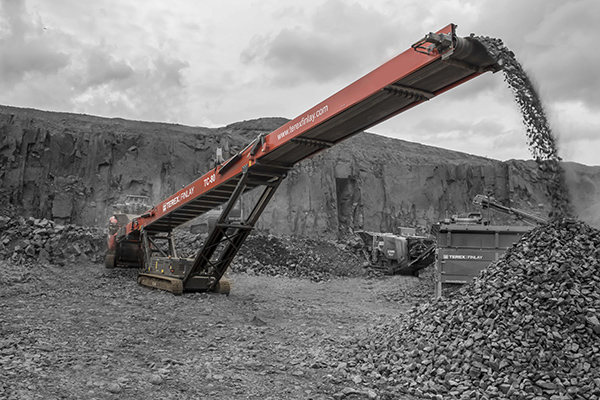

The TC-80 is a self-powered 80ft tracked stockpiler with impressive features and conveying capacities. The intelligent design allows the machine to be folded small enough to fit inside a 40ft container and be shipped cost effectively globally. The track in and out design lets operators simply track the machine out and fold into working position and start conveying material. Hydraulic angle adjustment and belt speed adjustment ensure optimum performance in every application. A maximum discharge height of 10.5m (34’ 6”) and capacities of up to 500+ tph position the TC-80 as a leader in the industry.
Galeria de VIDEOS
Terex Finlay TC-100 and TC-80 video
-jaw-crusher-tc-100-and-tc-80-conveyors.tmb-768v.jpg?Culture=en&sfvrsn=ab331ef_1)

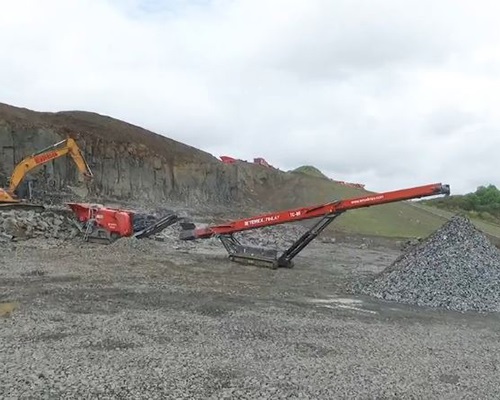

Terex Finlay TC-80 Conveyor working with J-1160 Jaw Crusher (Quarry)

Terex Finlay TC-80 Conveyor working with J-1170 jaw crusher and C-1540 cone crusher (Quarry)

Terex Finlay TC-80 Conveyor working with I-120RS impact crusher (quarry)

Terex Finlay TC-80 Conveyor working with a J-1170 direct drive jaw crusher (Quarry)
.tmb-768v.jpg?Culture=en&sfvrsn=a10b1ab1_1)
Specification | Value |
---|---|
Longitud del transportador | 77’ / 23.5m |
Anchura de la cinta | 42” / 1050mm |
Altura de descarga máx. | 33’ 2” @ 25° / 10.1m @ 25° |
Dimensiones de transporte | |
Potencial de salida |
