C-1554
コーンクラッシャー

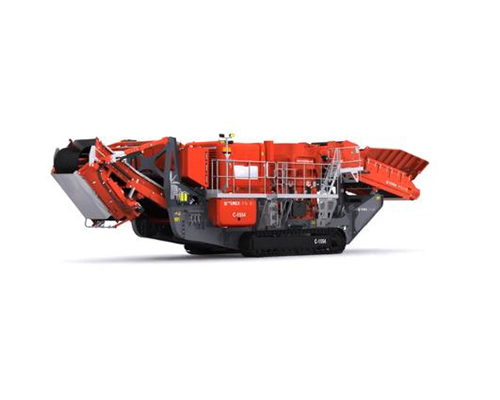

The Finlay® C-1554 secondary cone crusher is the ultimate mobile solution for any aggregates producer or contractor looking for a high output capacity machine that provides large reduction ratios and an excellent cubical shape.
This aggressive machine incorporates the proven Finlay® MVP450x cone crusher that can accept an all in feed and features direct variable speed clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.
The large hopper/feeder on the plant has an automated metal detection and a purge system designed to protect the cone and reduce downtime by removing metal contaminants via the purge chute.
Features
- Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation.
- Fuel efficient direct drive transmission through wet clutch.
- Hydraulic Tramp Relief System with automatic reset protects the chamber and minimizes downtime.
- Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.
ダウンロード
ビデオギャラリー
Terex Finlay C-1554 cone crusher (set up / tear down sequence)
Terex Finlay C-1554 cone crusher (Quarry)
イメージギャラリー
Specification | Value |
---|---|
正味エンジン出力 | Caterpillar C18 Acert 765hp / Caterpillar C18 Acert 571kW |
コーンヘッド直径 | 54” / 1380mm |
輸送時重量 | 134,614lbs / 61,060kg |
輸送時寸法 | |
輸送時寸法 |
