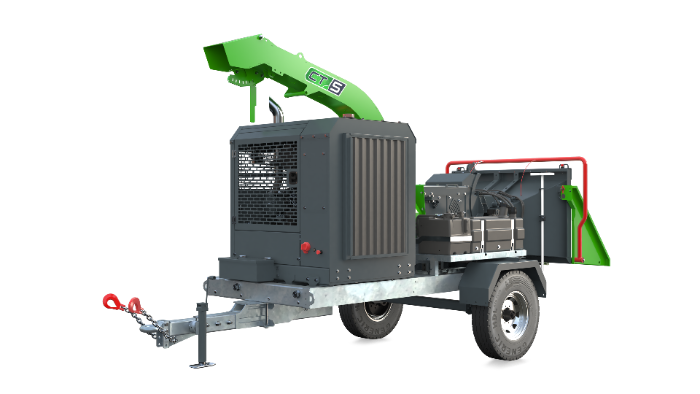

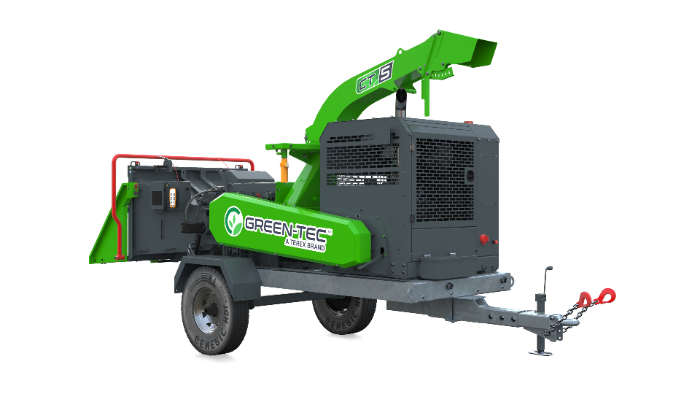

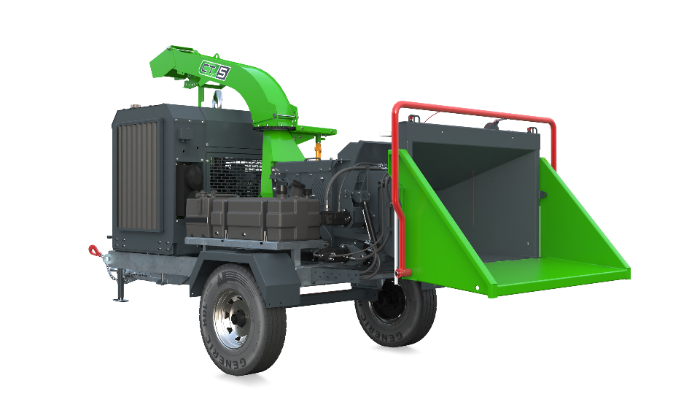

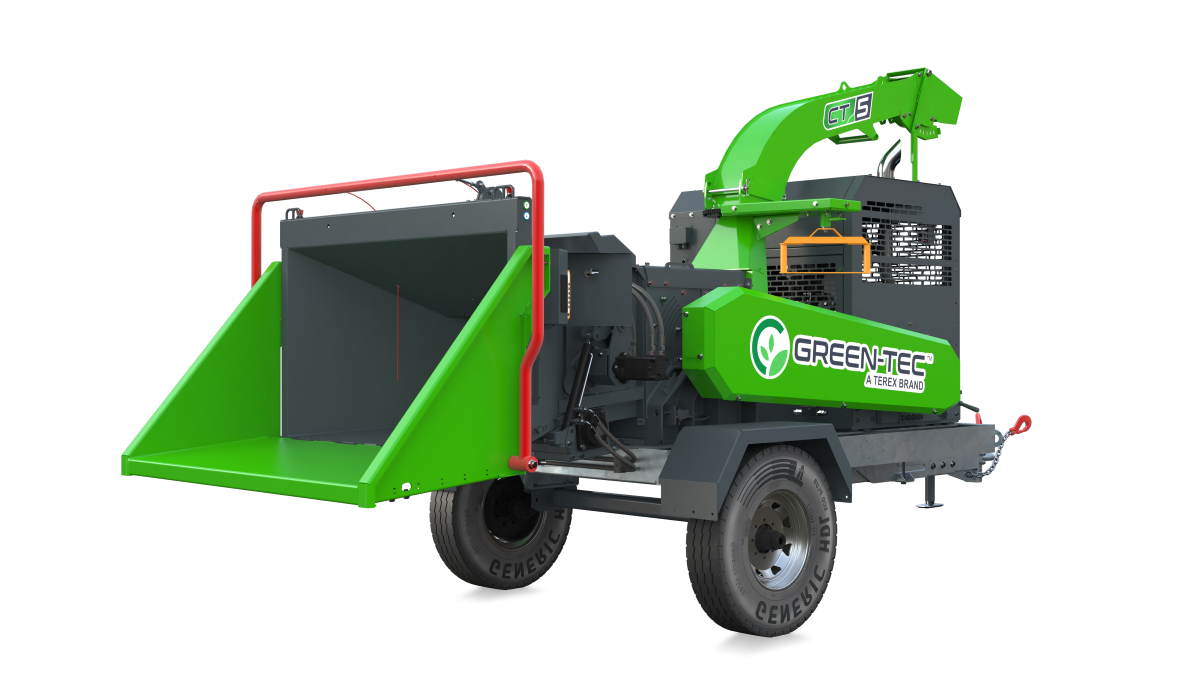

CT5 Wheeled - North America

Built for productivity. Engineered for safety.

The Green‑Tec CT5 turns tough clearance work into a fast, controlled process. Fitted with a single 7,000 pound torsion axle with 235/85R 16" tires mounted on 16x6 865 HD Steel wheels. Every detail is designed to help crews finish more jobs per shift—with less effort and greater confidence.


Get more done per shift



A high‑efficiency chipping system teamed with a powerful rear pivot dual‑roller infeed, providing market leading pulling power, keeps material moving. The result is rapid processing of bulky, irregular timber and green waste—so you clear sites faster and keep revenue jobs on schedule.


Work smarter, not harder



Operate from the intuitive touchscreen or the wireless remote to fine‑tune settings on the fly. Material pre‑sets help new operators get great results quickly, while experienced users can dial in performance for specific jobs.


Total control over your output



Choose your chip size and direct material exactly where you want it. A fully adjustable, discharge chute makes it easy to pack a truck cleanly and tightly, stockpile mulch neatly, or feed downstream equipment with minimal re‑handling.


Safety as standard



Multiple emergency‑stop locations, infeed safety bars and intelligent guarding support safe working practices and compliance with the relevant industry standards. Operators get clear, predictable responses—so the team can focus on the job, not the risk.


Lower cost of ownership



Choose the robust Cat C2.2 industrial diesel engine, with no AdBlue requirement to simplify daily checks and reduce consumable costs, or step up to the powerful Cat C3.6 for maximum performance in demanding chipping applications. A WPT Power industrial clutch completes the powertrain. Both engine options are backed by a 24-month Caterpillar engine warranty, providing added confidence wherever the job takes you.


Confidence where it counts



The CT5 combines 12-month / 1,000-hour standard machine cover with three-year / 3,000-hour warranty protection on the drum, main shaft and chipping chamber. A clear commitment from Green-Tec, giving you added reassurance when choosing your next chipper.

Technical Documentation

Measurements

Wheeled Operating Weight 6217 - 7319lbs 2820 - 3320kg
Machine Length 12 ft 8 in 3 m 85 cm
Transport Height 8 ft 7 in 2 m 63 cm
Machine Width 6 ft 5 in 1 m 95 cm
Tracked Operating Weight 6283 - 7275lbs 2850 - 3300kg

Specs

Chipping Rotor 2 Pocket, Staggered Knife 2 Pocket, Staggered Knife
Feed Rollers Top & Bottom Top & Bottom
Chipping Capacity ø 13” ø 330 mm
Clutch Manual or hydraulic Manual or hydraulic
Drum Size 24" x 18" 610mm x 457mm

Power

Power Unit C3.6 Caterpillar, 134hp, Stage V / Tier 4 Final C3.6 Caterpillar, 100kw, Stage V / Tier 4 Final
Power Unit C2.2 Caterpillar, 74hp, Stage V / Tier 4 Final C2.2 Caterpillar, 55kw, Stage V / Tier 4 Final
