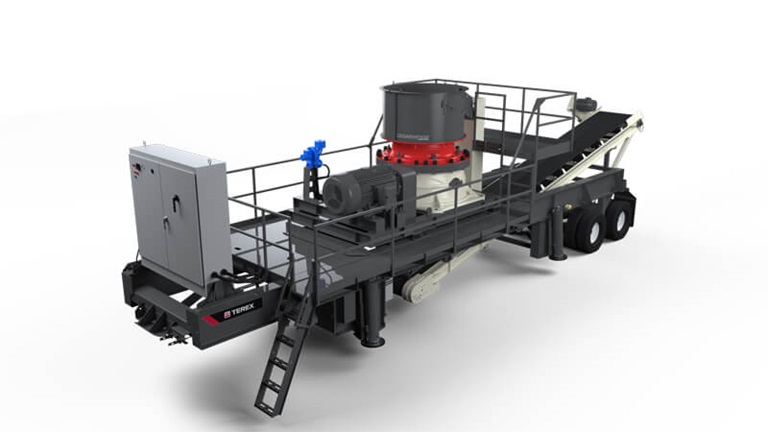

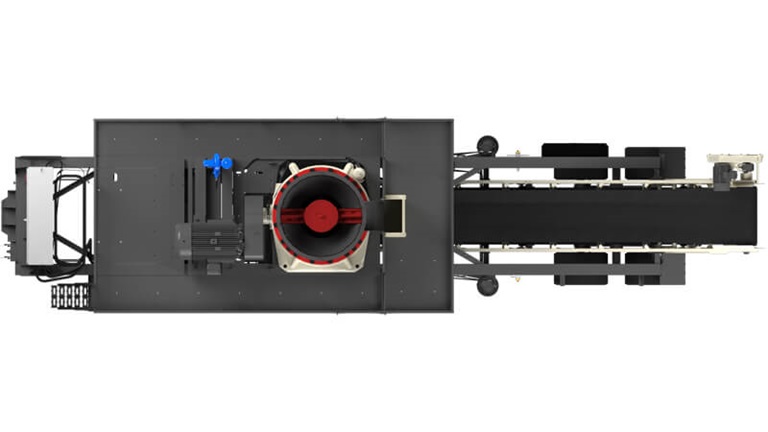

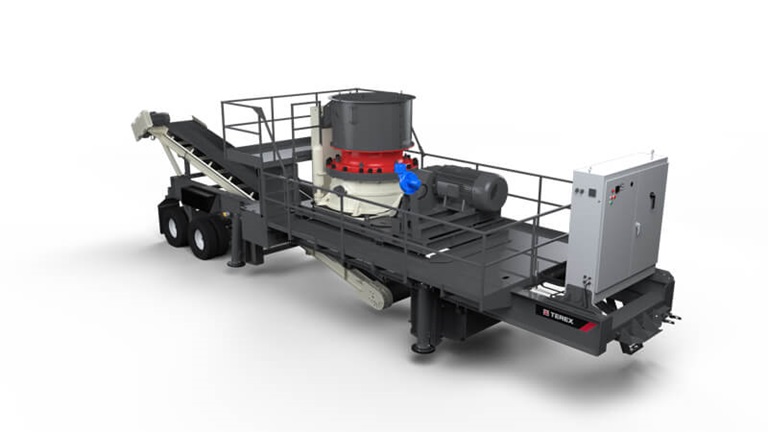

CRC320

The CRC320 combines the TG320 cone and a 15 hp, 42” wide discharge conveyor on a portable all electric chassis. The crusher is fitted with an overflow chute and removable overflow panel so the overflow can buffer feed surges in a closed circuit application. The trailer width and length allow easy movement from site to site. The plant has a variety of jack options available from simple crank landing to unique patent pending "canted" run-on jacks that stabilizes the movement of the crusher.

Technical Documentation

Measurements

Axles 2 2
Transport Dimensions 46'10" x 11'11" x 13'9" 14275 x 3632 x 4191 mm
Weight 75650 lbs 34314 kg
Working Dimensions 45'4" x 11'11" x 14'9" 13818 x 3632 x 4496 mm
Capacity 419-452 tph 380-410 mtph
