Static Jaw Crushers

Rugged, field proven designs and almost 200 years of combined jaw crusher manufacturing experience provide the foundation for our Terex Jaques jaw crusher lines. With rated capacities from 50 tph to well over 1500 tph, rest assured we have the jaw to suit your needs.

TJ2440 Jaw Crusher Cedarapids

TJ2440

Capacity 220-320 tph 200-290 mtph

CSS Range 1.6”-5.7” 40-146 mm

Feed Opening 24” x 40” 600 x 1000 mm

Motor Size 150 hp 110 kW

Weight 26914 lbs 12208 kg

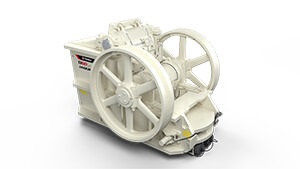

D60 double toggle jaw

D42

Feed Opening 42" x 36" 1070 x 915 mm

Motor Size 150 hp 110 kW

Weight 109,130 lbs 49,500 kg

JW42_thumbnail

JW42

Capacity 155-480 tph 135-430 mtph

CSS Range 3"-7" 75-210 mm

Feed Opening 30" x 42" 760 x 1070 mm

Motor Size 150 hp 110 kW

Weight 39100 lbs 17740 kg

D60 double toggle jaw

D48

Feed Opening 48" x 42" 1220 x 1070 mm

Motor Size 177 hp 132 kW

Weight 157,190 lbs 71,300 kg

JW55_thumbnail

JW55

Capacity 255-760 tph 230-680 mtph

CSS Range 3.5"-9" 85-225 mm

Feed Opening 32" x 55" 820 x 1400 mm

Motor Size 200 hp 150 kW

Weight 57860 lbs 26250 kg

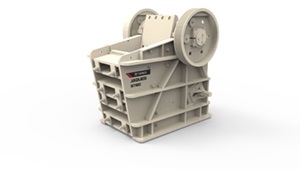

ST60_thumbnail

ST47

Capacity 209-590 tph 190-535mtph

CSS Range 4" - 8" inches 101mm - 203mm

Feed Opening 36" x 48" 915mm x 1220 mm

Motor Size 200 hp 150 kW

Weight 88,800 lbs 40,300 kg

D60 double toggle jaw

D60

Feed Opening 60" x 48" 1525 x 1220 mm

Motor Size 215 hp 160 kW

Weight 259,043 lbs 117,500 kg
