Conveyors

MAGNA’s range of stockpiling conveyors is expertly designed to integrate seamlessly with the entire range of MAGNA crushing and screening equipment. These conveyors are built to enhance the efficiency of your operations by providing reliable, high-capacity stockpiling solutions.

MC170

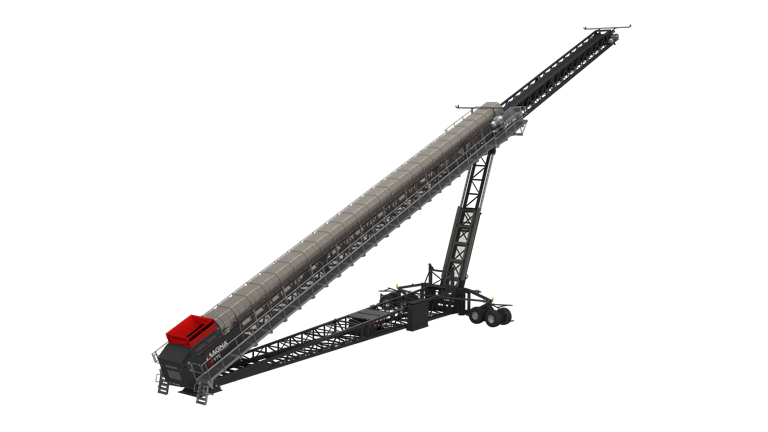

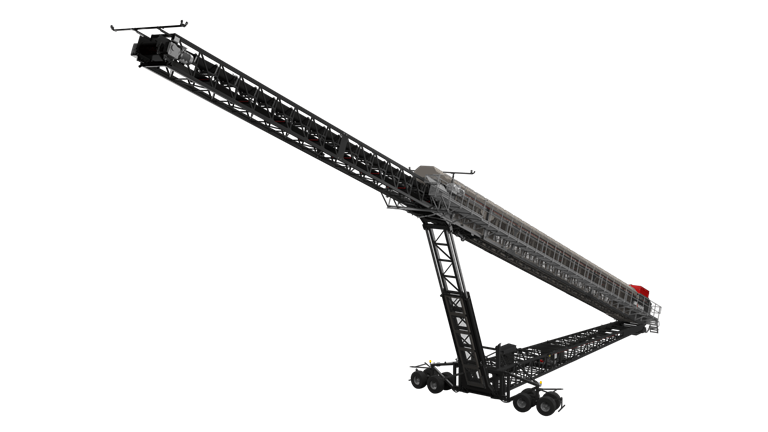

The MAGNA MC170 stockpiling telescopic conveyor has a working length of 52 metres (170’) and can be tailored to meet our customer’s needs. A transport length of 34.2 metres (112’) makes this a highly portable radial stacker conveyor.

Capable of 270° of radial movement and a max working angle of 20° to allow for maximum stockpile capacity.

With a stockpile height of 18 metres (59’) and maximum stockpile capacity of 182,176 tonnes the MAGNA MC170 radial telescopic conveyor provides a heavy-duty solution to bulk material handling.

Features

  • Stinger Drive
  • Swing Axle Undercarriage
  • Folding Axle
  • Hydraulic Wheel Drives
  • Deployment Engine
  • On Board Hydraulic Powerpack
  • PLC Controller

Technical Documentation

Measurements

Stockpile Height 56 ft 17 m
Conveyor Length 170 ft 70 in 52 m
Belt Width 42 Inches 1050 mm

Productivity

Stockpile Capacity 162619 US ton 147835 tonnes
Maximum Stockpile Capacity 113,730m³ (148,750 Yd³) at 18° and 270° Radial 113,730m³ (148,750 Yd³) at 18° and 270° Radial

Downloads

Others

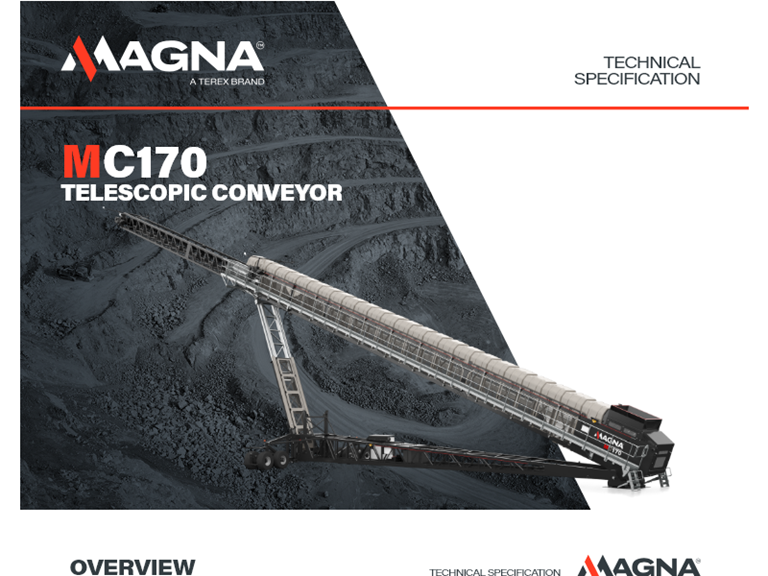

.pdf Magna_MC170(Tech_Spec)_0dd2c9e7-f3f1-4f80-bd7c-eaebe94eff6e
Magna MC170 Technical Specification
