MT620HR

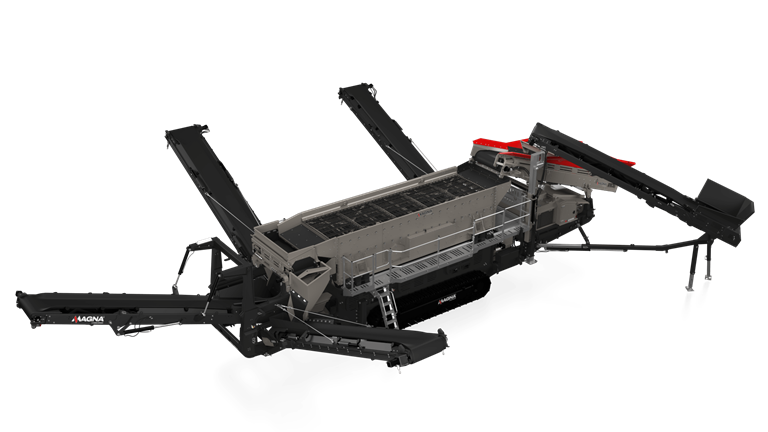

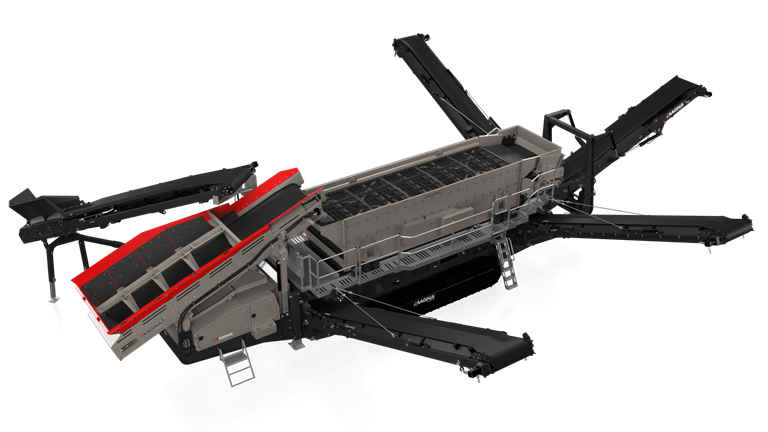

The MAGNA MT620HR Horizontal Screener is ideal for handling high volumes of sticky materials and for the exact, fine sizing demanded in many construction contracts. The MT620HR model features an recirculating swivel conveyor for oversized product. The conveyor is used to return product back to the feeder. Adjustable elliptical throw combines linear and circular amplitude producing an aggressive screening action. This is a heavy duty screener designed to excel in a variety of applications such as concrete, iron ore, aggregate, and asphalt.

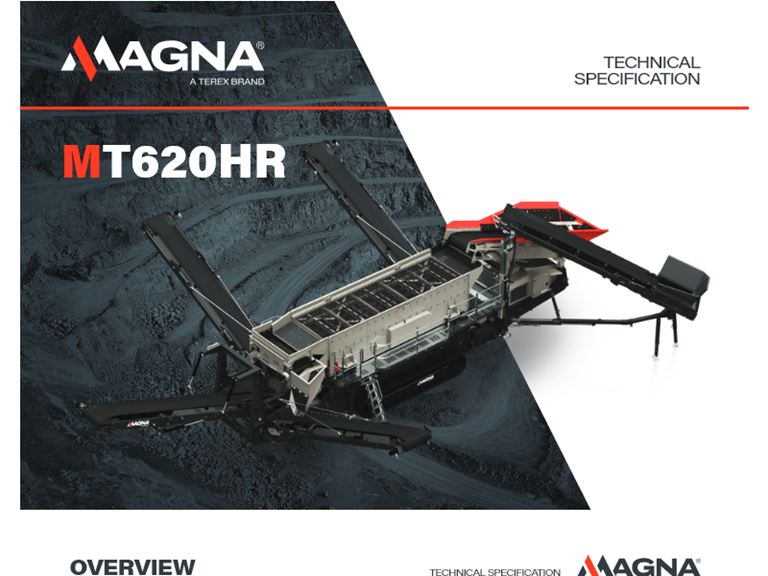

Technical Documentation

Measurements

Weight 99208 lbs 45000 kg
Transport Dimensions 65'3" (L) x 10'8" (W) x 13' (H) 19.9m (L) x 3.24m (W) x 3.96m (H)
Working Dimensions 69'9" (L) x 53'5" (W) x 16'3" (H) 21.27m (L) x 16.28m (W) x 4.96m (H)

Productivity

Output Potential 881 US tph 800 tph
