MT6S

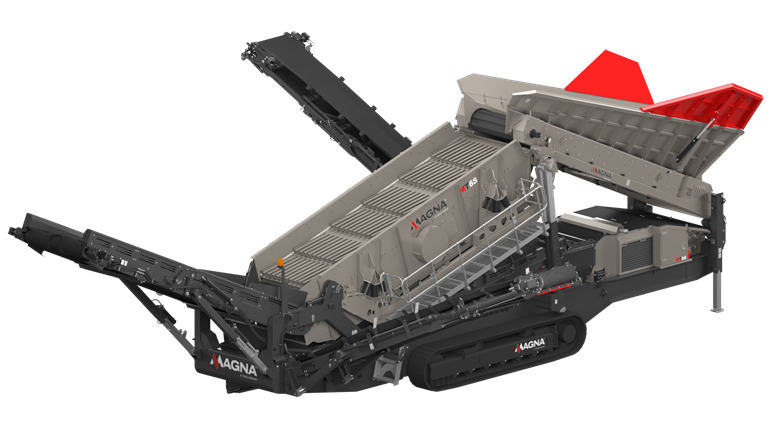

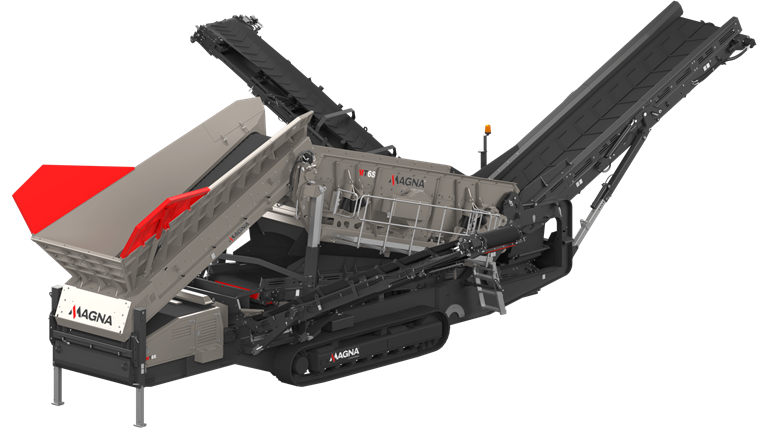

The MAGNA MT6S is a highly versatile and aggressive mobile scalping screen engineered and built for working in large scale quarrying, mining, construction and demolition debris, topsoil, recycling, sand, gravel, coal, ore and aggregate applications. This portable scalping screen plant has the capacity to process at a rate of up to 800 tonnes per hour and can be fed either by a tracked mobile crusher, shovel or an excavator. The machine features an aggressive 6100mm x 1830mm (20’ x 6') screenbox.

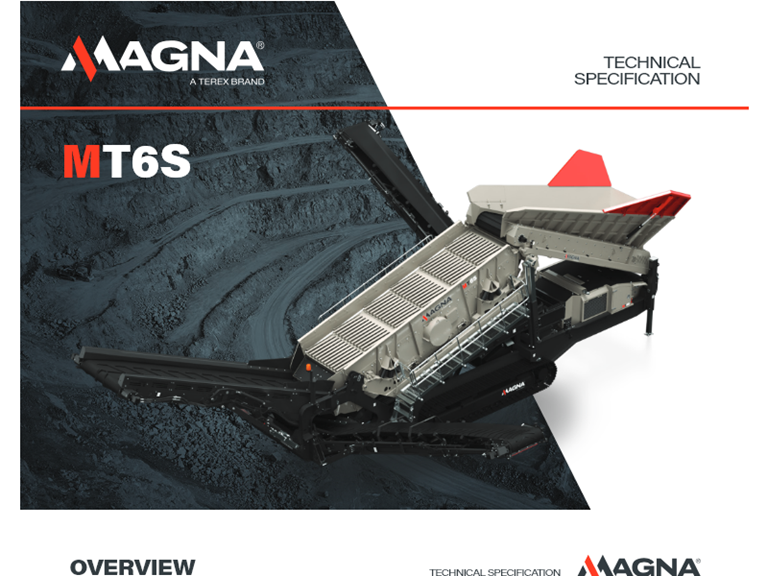

Technical Documentation

Measurements

Working Dimensions 60' 8'' (L) x 53'8 (W) x 18' 5'' (H) 18.3m (L) x 16.4m (W) x 5.6m (H)
Transport Dimensions 58' (L) x 9' 10'' (W) x 11' 9'' (H) 17.9m (L) x 3m (W) x 3.6m (H)
Weight 107365 lbs 48700 kg

Productivity

Output Potential 881 US tph 800 tph
