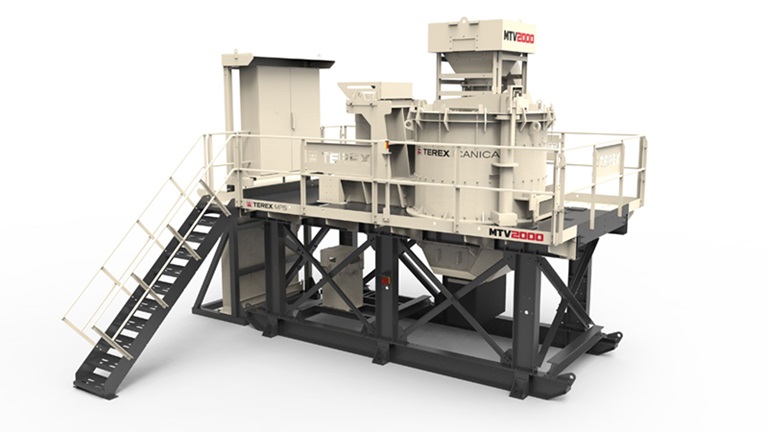

MTV2000

The MTV2000 Modular VSI features a high performance Canica VSI2000SD single
drive vertical shaft impactor, powered by a 300 hp (224 kW) electric motor with soft start. This robust VSI is a vital tool for producing highly cubical products in small sizes and eliminating soft material.

Technical Documentation

Measurements

Weight 39,558 lbs 17,943 kg
Working Dimensions 23'4"x12'2"x16'5" (LxWxH) 7100x3700x5000 mm (LxWxH)
Capacity 190 tph 175 mtph
Motor Size 300 hp 225 kW
