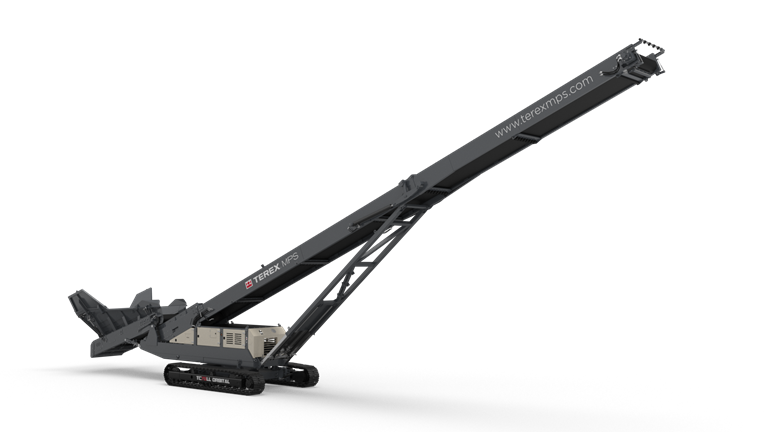

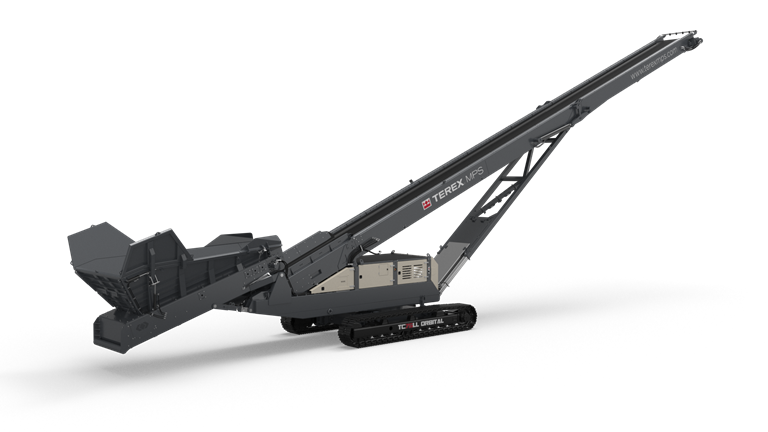

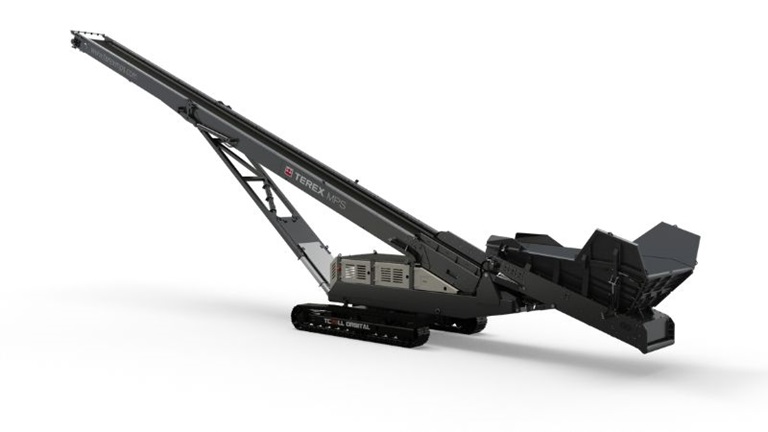

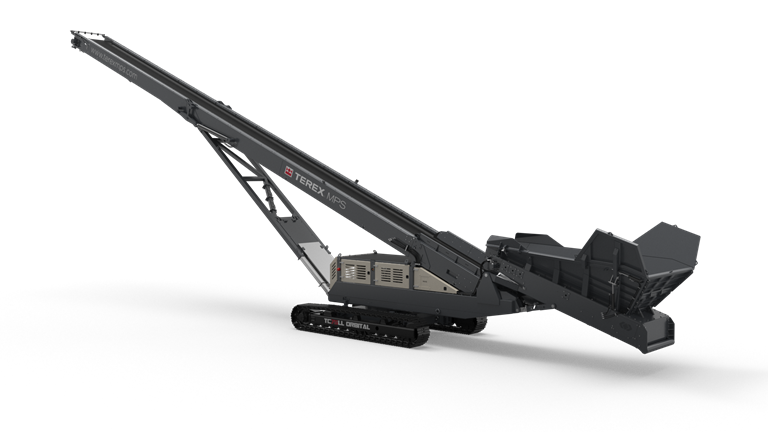

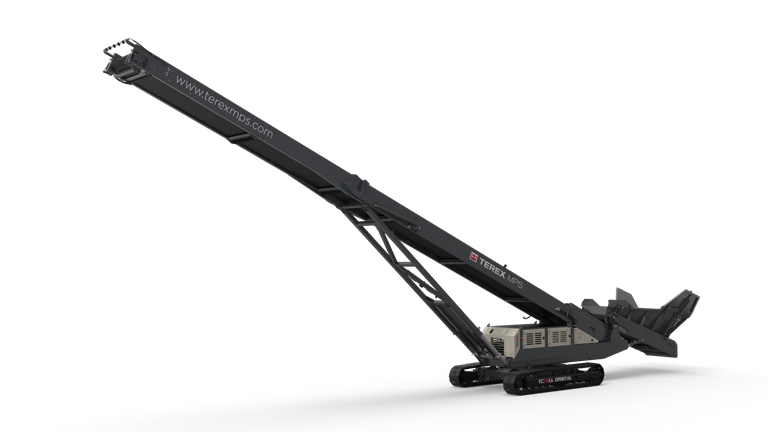

TC-75-LL Orbital

The TC-75-LL Orbital Low Level Orbital Feeder Conveyor enables operators to discharge directly from wheel loaders and excavators at a much lower feed-in height compared to alternative hopper feeders, eliminating the need for double material handling on site. Additionally, the TC-75-LL Orbital includes a 75-foot long stacker for efficient stockpiling. Its unique orbital configuration allows the conveyor to rotate independently from the undercarriage, enhancing on-site efficiency and coordination.

Technical Documentation

Measurements

Conveyor Length 75 ft 22 m 60 cm
Belt Width 48 inches 1200 mm
Max Discharge Height 33 ft 10 in 10 m 10 cm

Productivity

Rated Tonnage 661 UStph 600 tph
