Portable Screeners

Terex MPS portable screening plants feature the triple shaft, oval stroke, horizontal screens which are well known for their performance and longevity. Our portable plants are designed to get the most out of these high performance screens and make it easy to transport the plants from site to site. These plants are designed for scalping and finish screening applications and with their unmatched blending capabilities, they can produce many different product specifications.

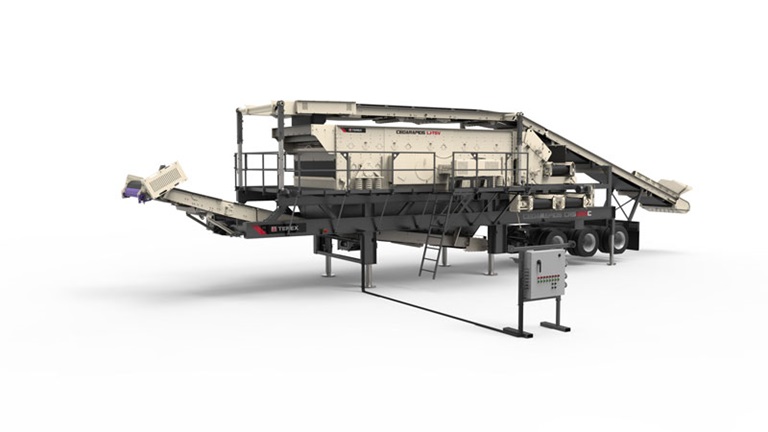

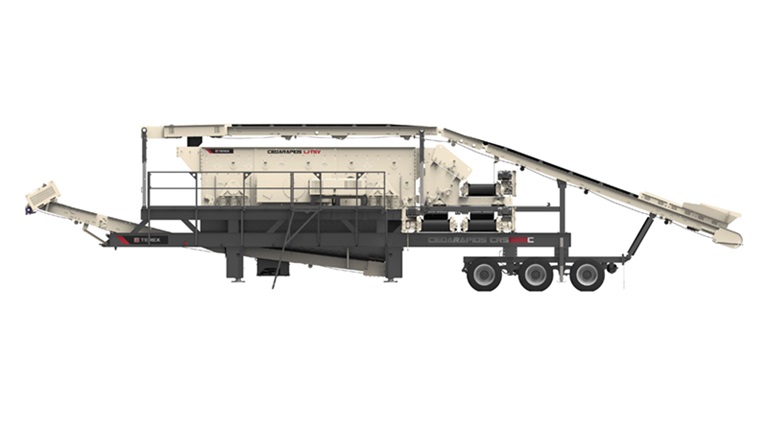

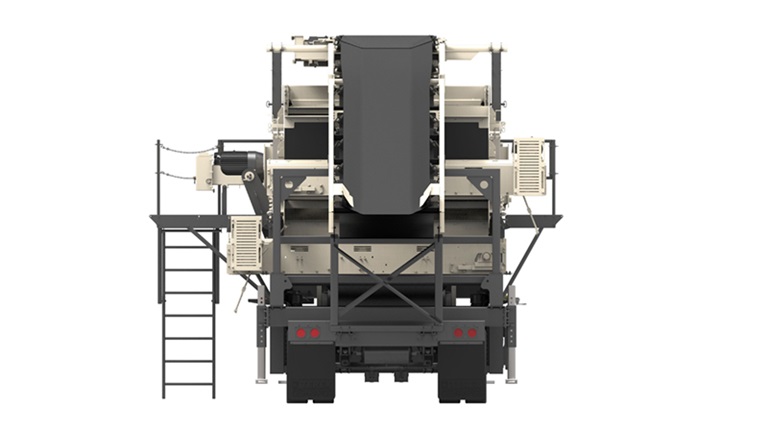

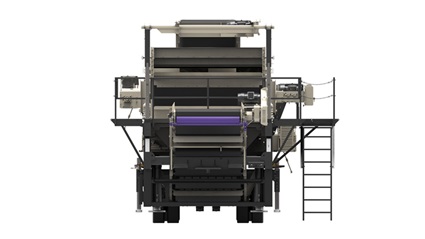

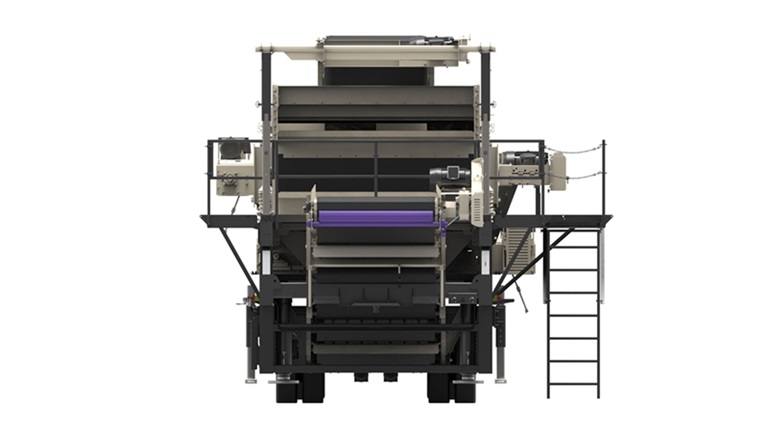

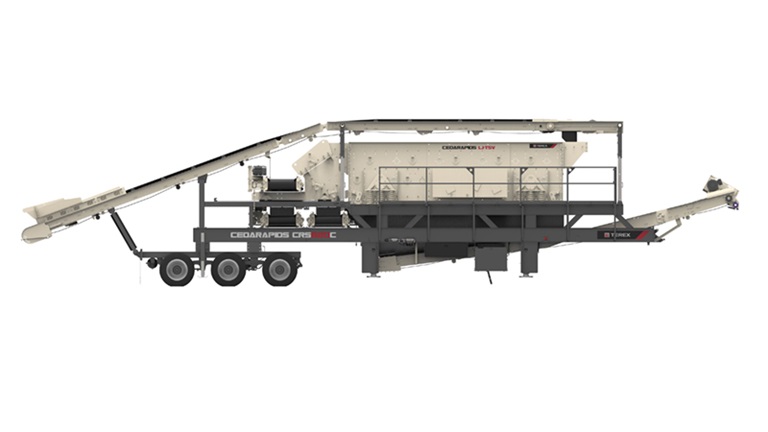

CRS820C

The Cedarapids® CRS820C screen plant features the popular 8' x 20' (2438mm x 6096mm) TSV8203 screen, along with a flex shaft screen drive and roll-away blending chutes, make this a leader in the screen plant market. The wide overhead conveyor allows for easy incorporation into any crushing operation without the need for external conveyors.

Technical Documentation

Measurements

Transport Dimensions 65'4" x 11'11" x 14' 18686 x 3641 x 4259 mm
Axles 3 3
Weight 85367 lbs 38722 kg
Working Dimensions 61'4" x 16'10" x 16'5" 19907 x 5140 x 5004 mm
