CRH1316

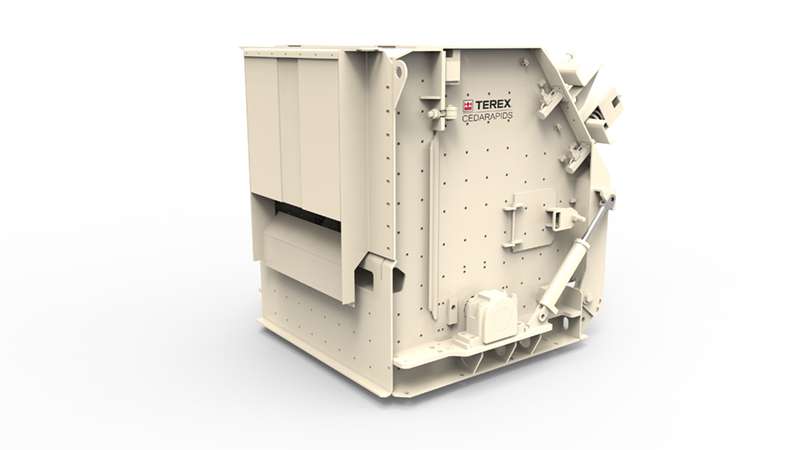

The Cedarapids® CRH1316 features the Terex® Cedarapids IP1316 impact crusher
IP1316
With their large feed openings, heavy duty aprons and rugged rotors, the IP1316 series crushers are designed to handle big feed sizes and high capacity crushing.
The patented wedge bar system is just one of many features that ensure reliable operation. Maintenance is fast and easy, which helps minimize downtime.
The patented wedge bar system is just one of many features that ensure reliable operation. Maintenance is fast and easy, which helps minimize downtime.
| Specification | Value |
|---|---|
| Weight | 38,500 lbs / 17,465 kg |
| Capacity | 250-400 tph / 225-365 mtph |
| Max Feed Size | 34" / 865 mm |
| Rotor Dimensions | 50"x64" / 1270x1625 mm |
| Motor Size | 400 hp / 300 kW |
