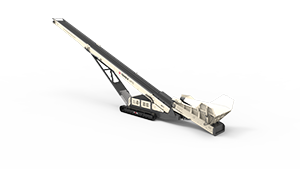

TC-75-LL
The TC-75-LL features a conveyor length of 22.6m and a capacity of up to 600 tph and features a low level feeder hopper

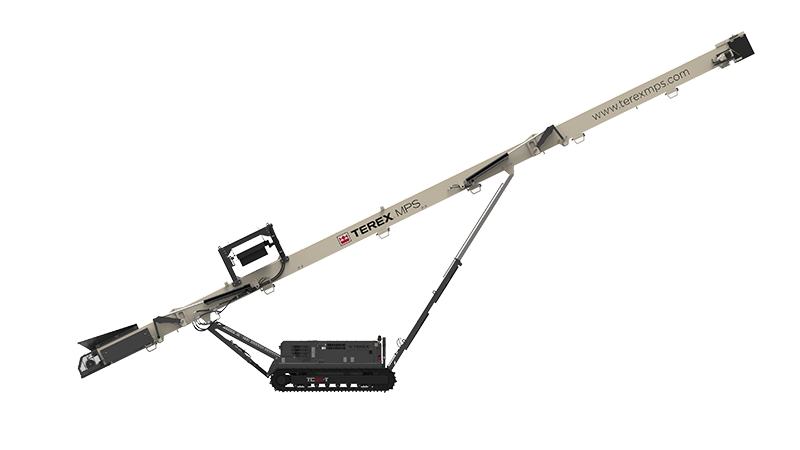

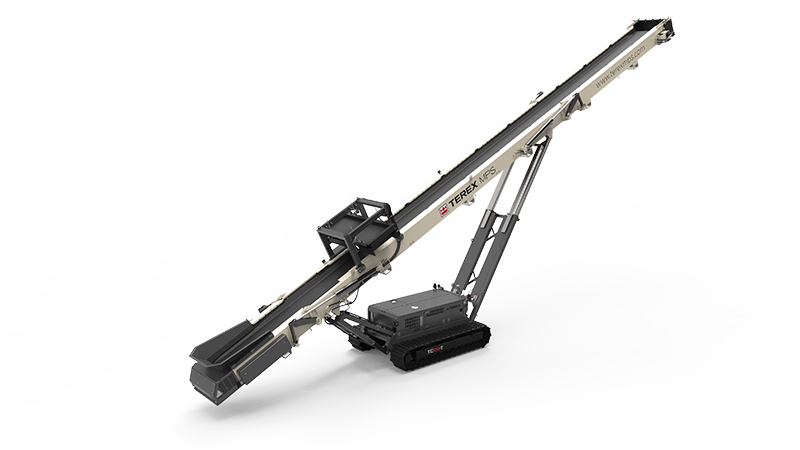

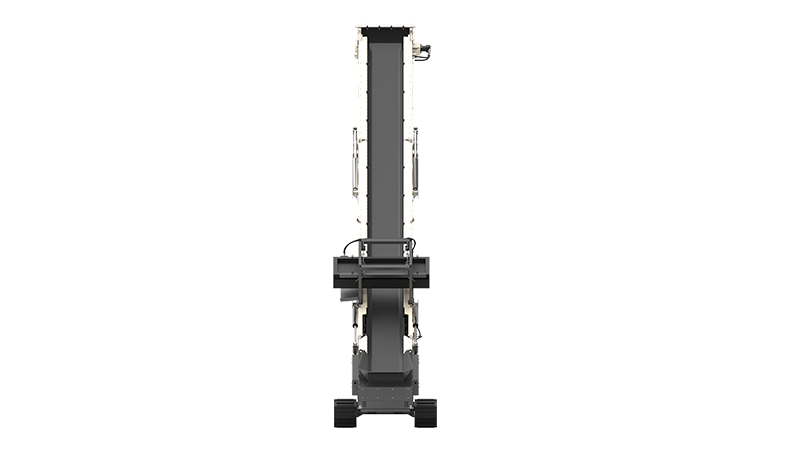

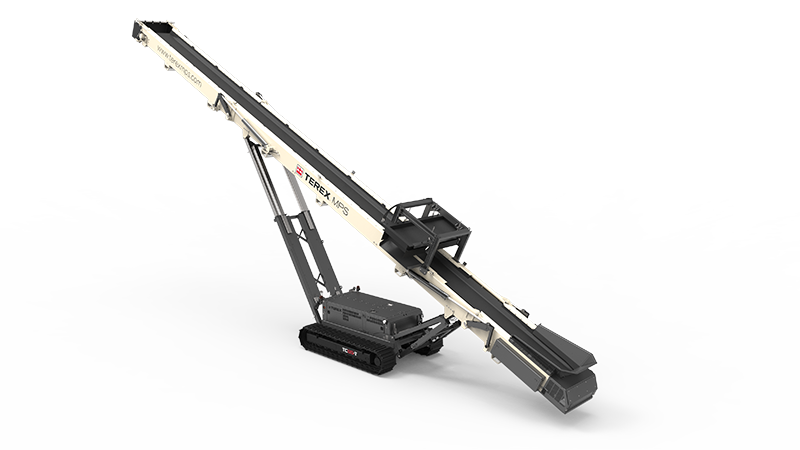

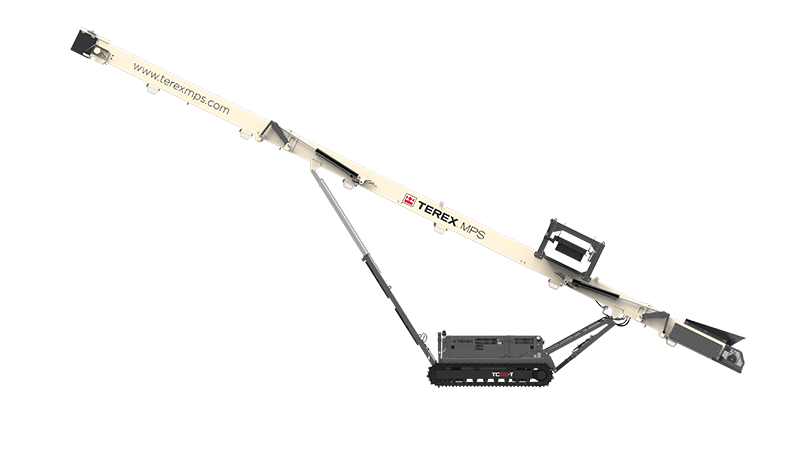

TC-65-T
Tracked Conveyor
The TC-65-T features a conveyor length of 20m and a capacity of up to 500 tph. With built in hydraulics adjustment are quick and easy with a maximum angle of 28 degrees and max height of 10m.
It hydraulically folds for transport and can be loaded into a single container thanks to its for roll on roll off design.
It hydraulically folds for transport and can be loaded into a single container thanks to its for roll on roll off design.
| Specification | Value |
|---|---|
| Conveyor Length | 65 ft / 20m |
| Belt Width | 42" / 1050mm |
| Engine | (Tier 3) Deutz D2011 L04I 49hp / (Tier 4F) Deutz TD 2.9 L4 56hp / (Tier 3) Deutz D2011 L04I 36.4kW / (Tier 4F) Deutz TD 2.9 L4 41kW |
| Capacity | 551 UStph / 500 tph |
Image and Video Gallery
Related Products
-
![75FT Low Level Feeder_2_thumbnail]()
-
![100ft Tracked Conveyor-Camera 4_thumbnail]()

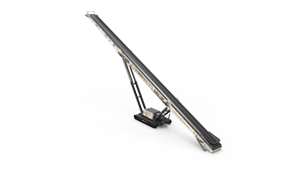

TC-100-T
The TC-100-T features a conveyor length of 30m and a capacity of up to 600tph
-
![75FT Radial-Camera 4_thumbnail]()
TC-75-TR
The TC-75-TR features a conveyor length of 22.9m and a capacity of up to 600 tph
-
![75FT High Level Feeder_2_thumbnail]()

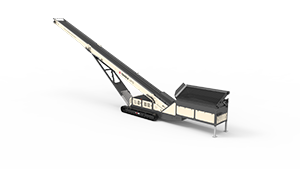

TC-75-HF
