TC-65-T
The TC-65-T features a conveyor length of 20m and a capacity of up to 500 tph

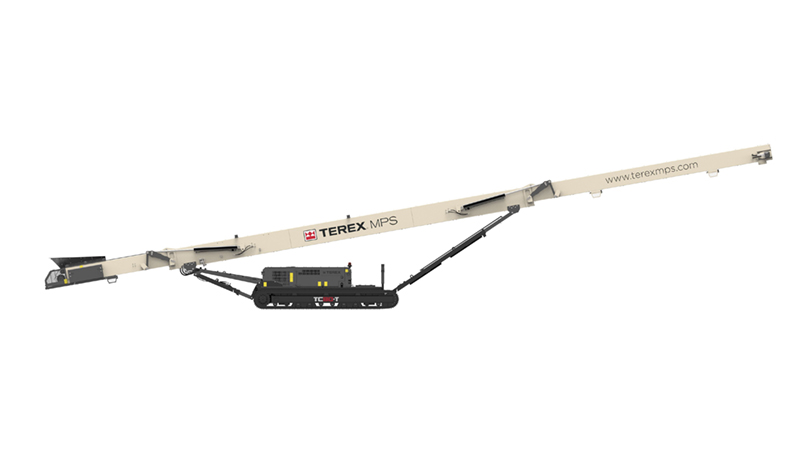

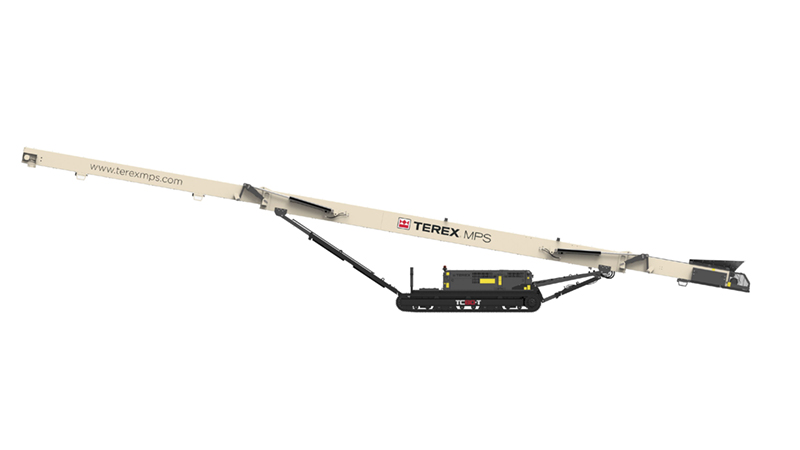

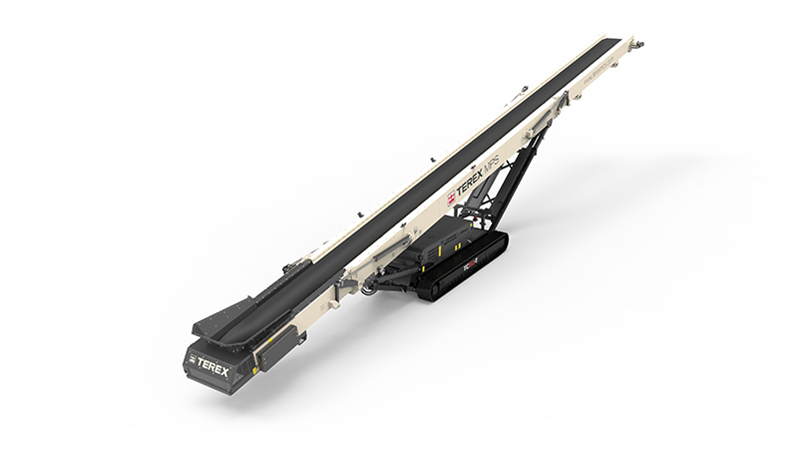

TC-80-T
Tracked Conveyor
The TC-80-T features a conveyor length of 23.5m and a capacity of up to 500 tph. With built in hydraulics adjustment are quick and easy with a maximum angle of 28 degrees and max height of 10.5m.
It hydraulically folds for transport and can be loaded into a single container thanks to its for roll on roll off design.
It hydraulically folds for transport and can be loaded into a single container thanks to its for roll on roll off design.
| Specification | Value |
|---|---|
| Conveyor Length | 80 ft / 23.5m |
| Belt Width | 42" / 1050mm |
| Engine | (Tier 3) Deutz D2011 L04I 49hp / (Tier 4F) Deutz TD 2.9 L4 56hp / (Tier 3) Deutz D2011 L04I 36.4kW / (Tier 4F) Deutz TD 2.9 L4 41kW |
| Capacity | 551 UStph / 500 tph |
