Cone Crusher Module

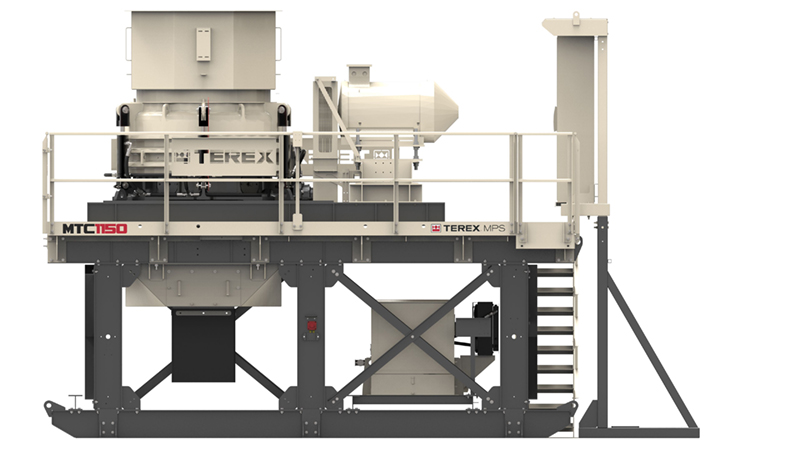

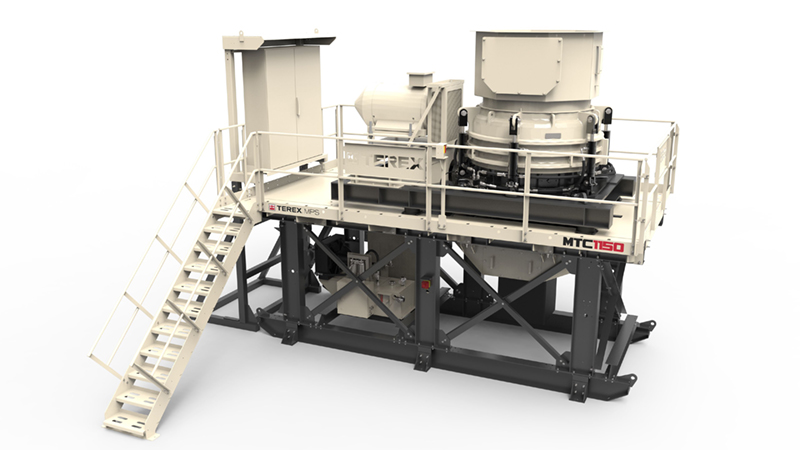

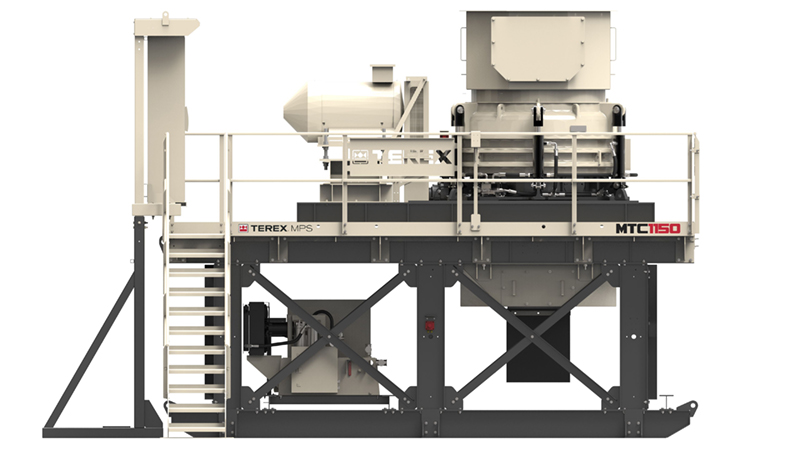

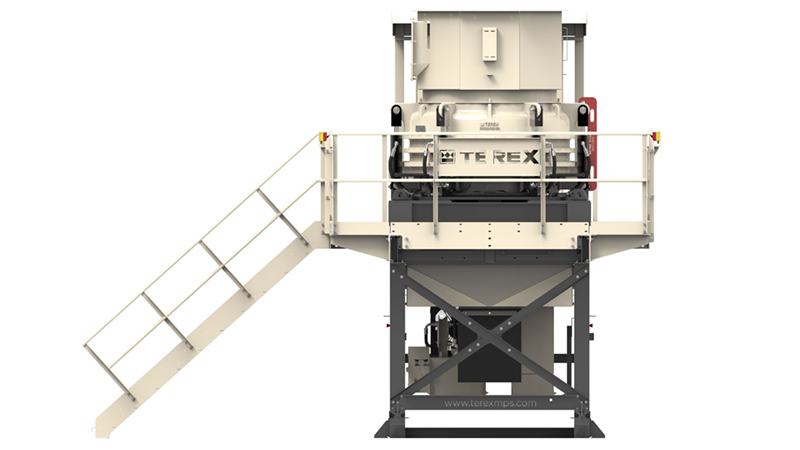

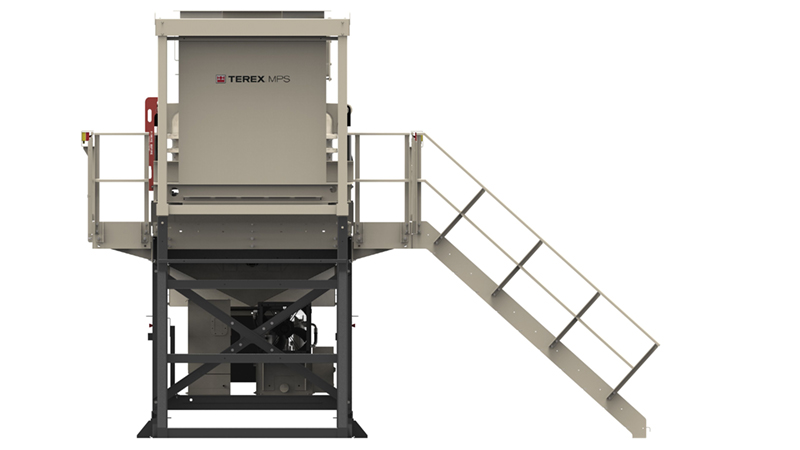

The MTC1150 offers a nominal cone head diameter of 45”(1150mm). It features a one-piece upper frame for all liner configurations, a no-hit concave and new mantle liner retention systems. Other enhancements include greater tramp clearance and increased clamp hold down pressure. Options include an anti-spin device and an upgraded platform offering wider walkways plus easier maintenance access.
Specification Value
Weight 52,910 lbs / 24,000 kg
Working Dimensions 23'4"x12'2"x17' (LxWxH) / 7100x3700x4900 mm (LxWxH)
Motor Size 300 hp / 225 kW
Capacity 240-285 tph / 220-260 mtph
