JW42
The JW Series is engineered for portability and ease of use. The rugged design delivers the reliability you can expect from Terex MPS.
WJ3042
WJ3042

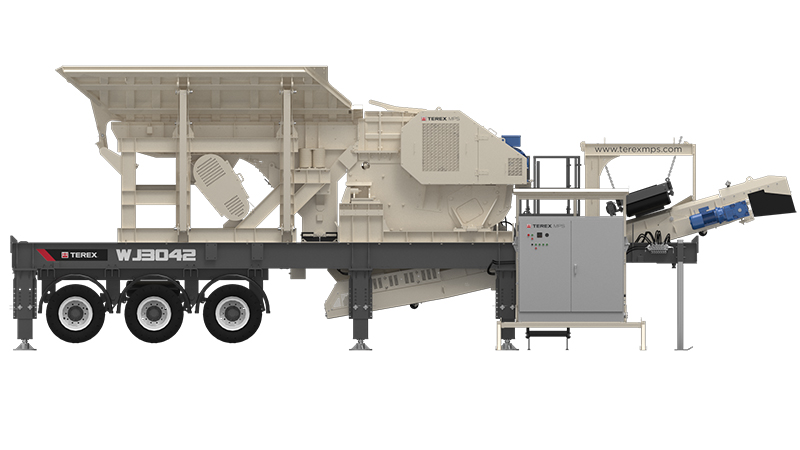

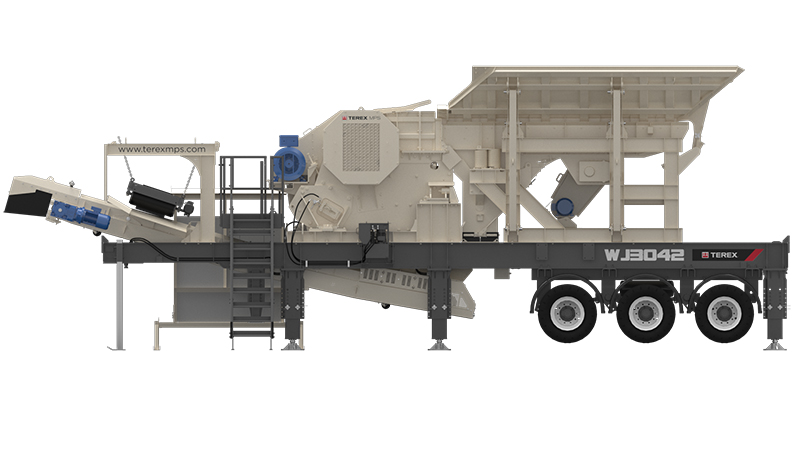

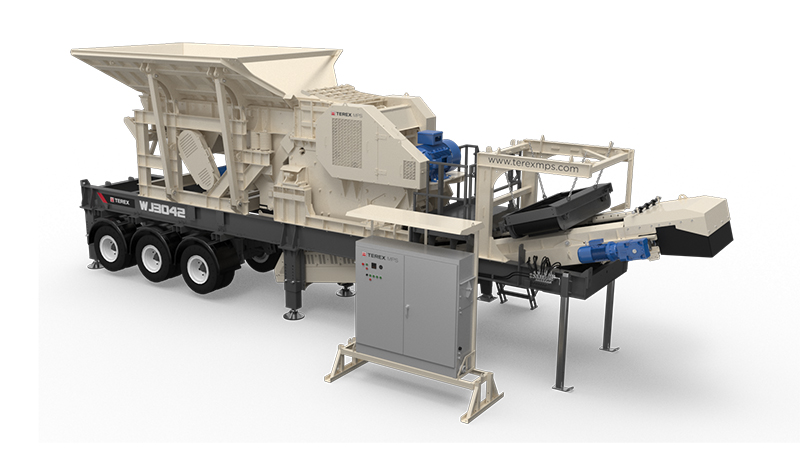

The Terex® MPS WJ3042 is a high performance and aggressive wheeled jaw crusher plant. Incorporating a JW42 jaw crusher and a heavy duty vibrating grizzly feeder, the WJ3042 gives optimum production in a range of applications. Plant installation is assisted with hydraulic legs. Its compact size, quick set up times, ease of transport and simple maintenance make the WJ3042 ideal for quarrying, mining, demolition and recycling applications.
| Specification | Value |
|---|---|
| Weight | 99,890 lbs / 45,310 kg |
| Transport Dimensions | 45'2"x10'2"x13'7" (LxWxH) / 13754x3100x4149 mm (LxWxH) |
| Working Dimensions | 45'2"x10'2"x16'2" (LxWxH) / 13754x3100x4928 mm (LxWxH) |
| Axles | 3 axles / 3 axles |
| Capacity | 155-480 tph / 135-430 mtph |
Image and Video Gallery
Related Products
-

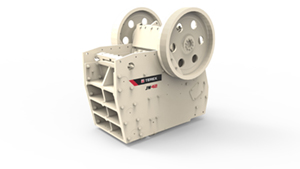

![JW42_thumbnail]()
-
