CRJ3255 Jaw Plant
The Cedarapids CRJ3255 jaw plant combines the popular JW55 jaw crusher with the high stroke 52”x20’ vibrating grizzly feeder making this plant a high production portable crushing machine. This quarry duty JW55 crusher, with its large 32”x55” opening, long jaws, and aggressive stroke, is in a class by itself in a portable crushing plant.
Besides high production, the crusher has a modern hydraulic wedge adjustment and tension rod system making adjustments quick and safe. The action of the large stroke feeder provides high feed rates along with efficient fines separation on the grizzly section. The wide belt conveyor has large clearance below the crusher and is a straight line design without curves so the belt can maintain maximum tension, minimizing drive slippage. The conveyor also has a heavy duty shock absorbing impact bed under the jaw and continuously supported side flashing along its diverging hopper to minimize spillage and maintenance.
Multiple options are available so customers can configure the CRJ3255 plant to their specific needs.
Rock Crusher
Request A Quote

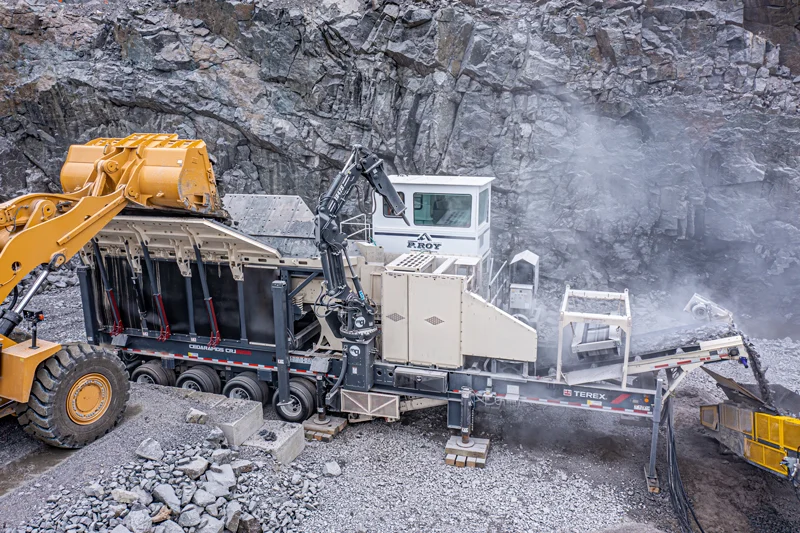

The Cedarapids CRJ3255 Mobile Rock Crushing Plant is shown breaking it up in this Canadian Quarry. It is the ideal Rock Crusher Machine within this application type.
Features & Benefits
Specifications
| Weight | 135,585 lbs / 61,500 kg |
| Transport Dimensions | 51'6" x 11'1" x 13'5" (LxWxH) / 15697 x 3378 x 4090 mm (LxWxH) |
| Working Dimensions | 51'6" x 15'2" x 14'10" (LxWxH) / 15697 x 4623 x 4521 mm (LxWxH) |
| Axles | 4 Axle |
| Capacity | 255-760 tph / 230-680 mtph |
