MHS8203

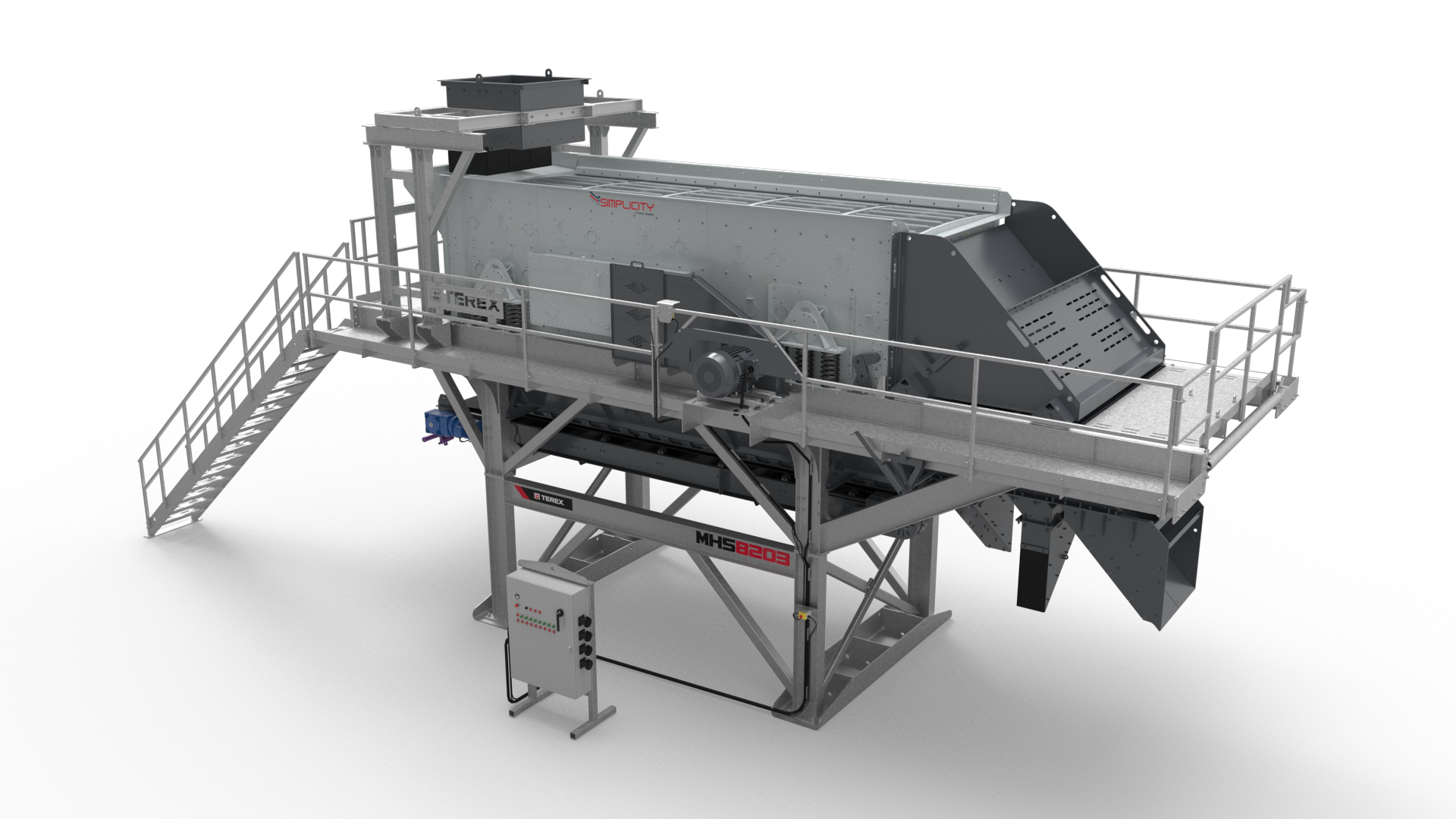

The MHS8203 Modular Screen features the large capacity 8' x 20' triple shaft horizontal screen with its legendary oval stroke action.
MHFS2618
Screen Module

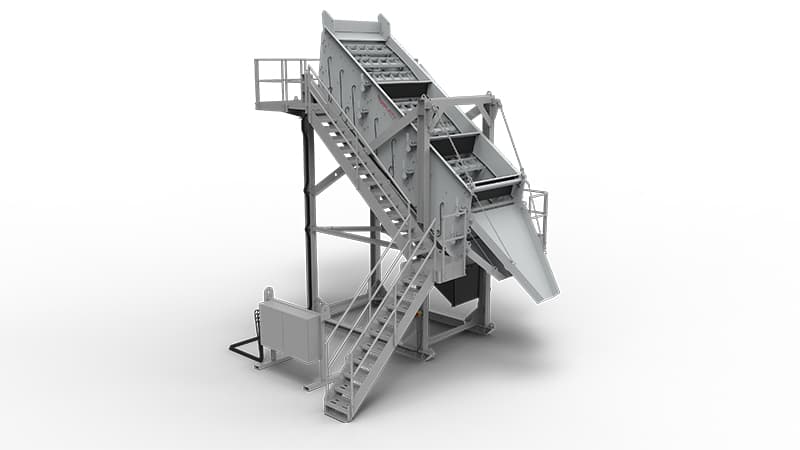

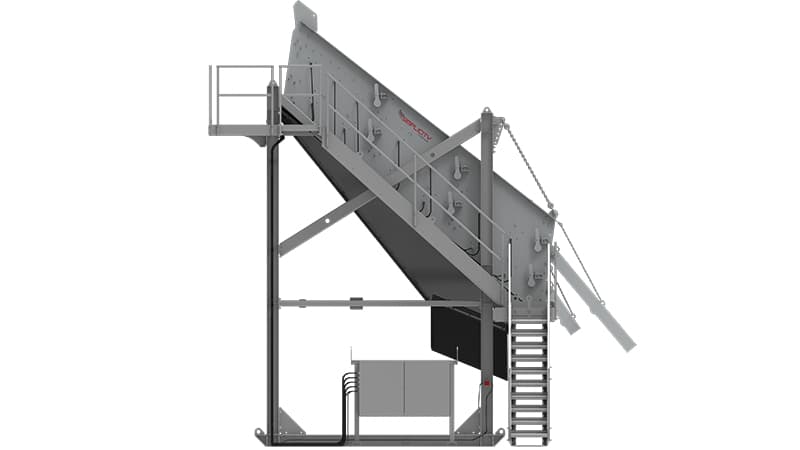

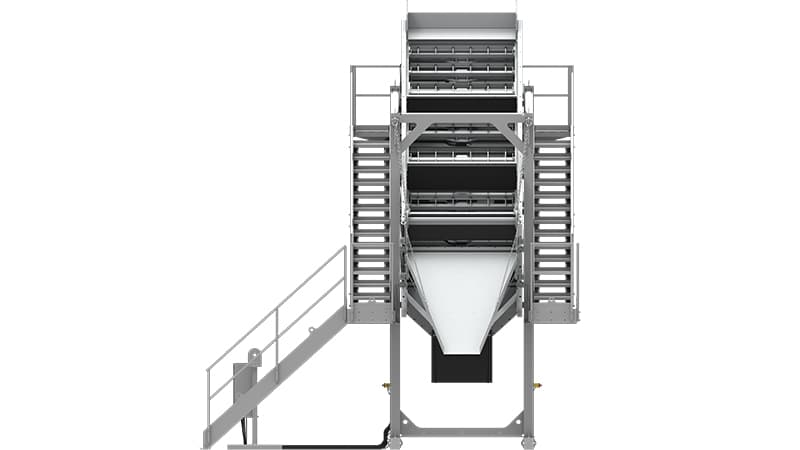

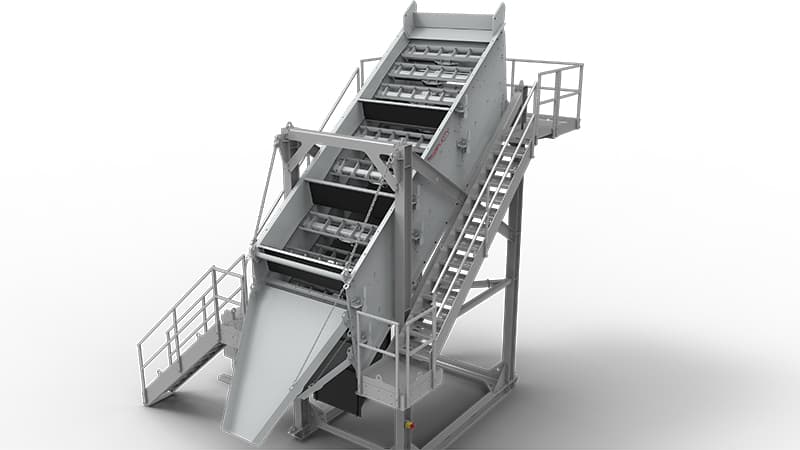

The MHFS2618 features the Simplicity® FM Series two deck incline screen, specially engineered for fines material screening. With easy adjust variable slope and a bolt together, easy to build modular structure, the MHFS2618 can be up and running quickly, and efficiently.
| Specification | Value |
|---|---|
| Weight | 23,240 lbs / 10,540 kg |
| Working Dimensions | 23'7"x20'11"x24'7" (LxWxH) / 7194x6374x7500 mm (LxWxH) |
- FM2618 6’ x 18’ (1829 x 5486 mm) two-deck screen
- Easy-adjust variable slope operation, 38° to 43°
- Bolts together on site, quick set-up time with basic tools
- Pre-wired “plug and play” design, minimal on-site wiring
- Complete user-friendly starter panel
- Steel structure including walkways, steps and guard rails
- Repositionable access stair locations
- Transports easily in a 40’ (12,192 mm) shipping container and is systematically packed for quick site set up
Image and Video Gallery
Related Products
-
![Simplicity_MHS8203_Modular_Triple_Shaft_Horizontal_Dry_Screen]()
-
![simplicity_mhs6203_triple-shaft-horizontal_screen_module]()
MHS6203
The MHS6203 features the triple shaft 6' horizontal screen on a simple, easy-to-use, galvanized modular frame.
