MHS620X
Modular Screen

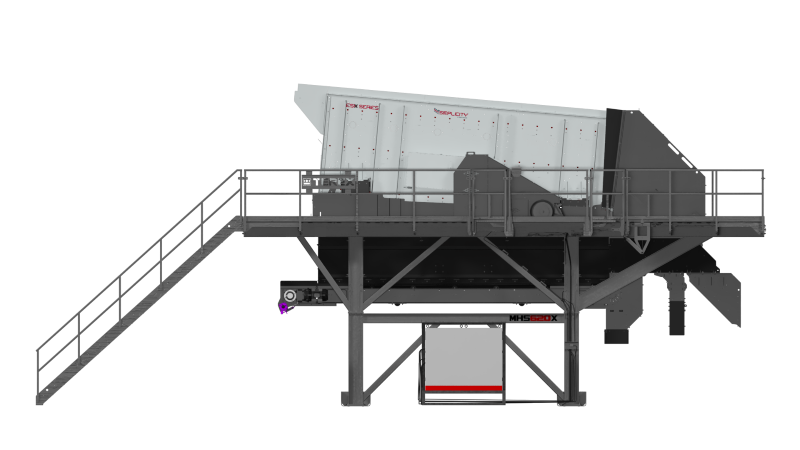

The MHS620X modular screen features the ESX “Extra Clearance” 6’ x 20’ horizontal screen with elliptical stroke design. The ESX screen will produce high quality materials with accurate sizing, is designed to eliminate screen bottlenecks and improve maintenance safety. In addition to the set-up time and ease of operation complimented by the simplicity of the modular product range, all MPS modular crushers and modular screens, bolt together on site with basic hand tools. Designed with logistics in mind, the MHS620X module ships in two 40’ shipping containers plus the screen.

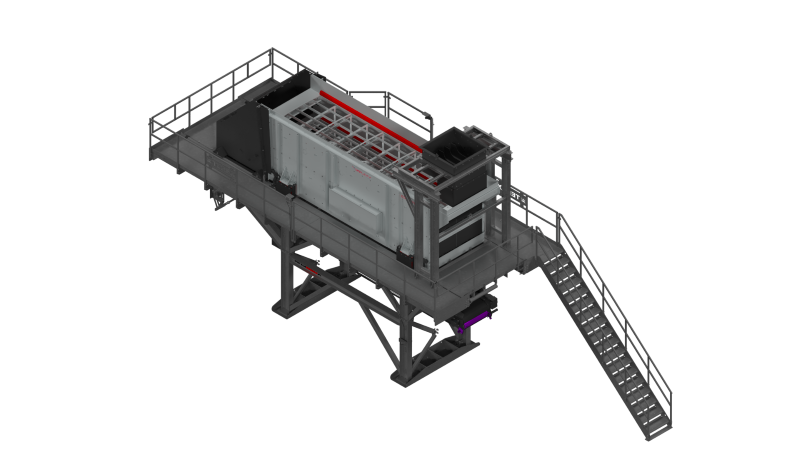

Feed Box Option for Dry and Wet
ESX "Extra Clearance" 6x20 Horizontal Screen
Roll-away bend chute capable of blending for 0-5 deg. Screen angle
Product Discharge Chute
Electrical Switchgear Option - Minimal on-site wiring
Bi-directional Conveyor with ability to convey fines off plant or forward into the lower chute work
Galvanized steel with walkways, stairs and guard rails
| Specification | Value |
|---|---|
| Weight | 63,600 lbs / 28,848 kg |
| Working Dimensions | 49'9" x 18'6" x 23'6" (LxWxH) / 15216mm x 5674mm x 7134mm (LxWxH) without Feedbox |
| Working Dimensions | 49.9" x 18'6" x 25'7" (LxWxH) / 15216mm x 5674mm x 7838mm (LxWxH) Feedbox and 5 Degree |
Image and Video Gallery
Related Products
-

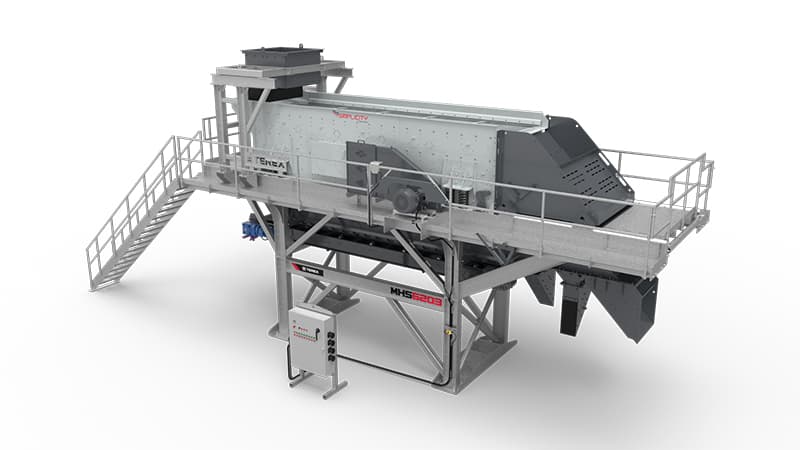

![Simplicity MHS6203 screen module]()
-
![Simplicity MHS8203 screen module]()

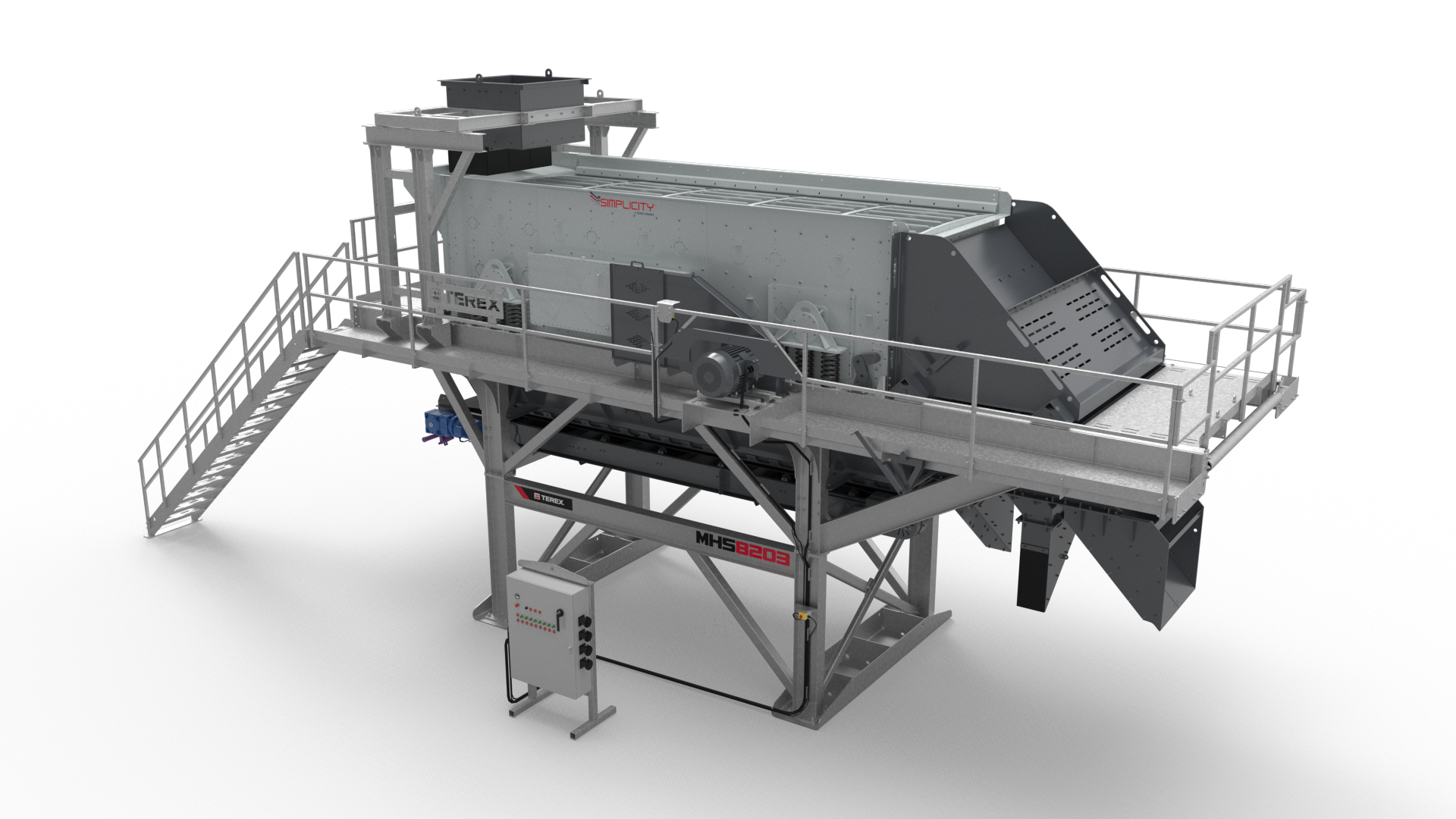

MHS8203
