Cone Plant

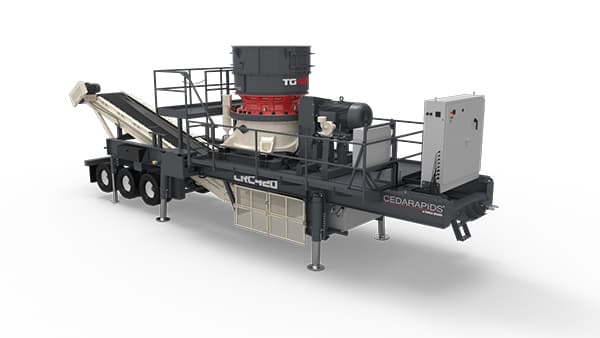

CRC420 cone plant
The CRC420 portable cone plant features the TG420 cone with a large feed opening. The all electric plant fits a variety of layouts and applications and is designed for easy transport on the road or on site. Service platforms with wide walkways allow easy and safe access for maintenance and inspection. The bronze bushing technology of the TG420 cone enables the operator to quickly and easily alter the eccentric throw of the cone, on site, simply by rotating the eccentric bushing.
CRC420 cone plant
Specification Value
Weight 98,665 lbs / 44,754 kg
Transport Dimensions 48' x 11'11" x 13'11" (LxWxH) / 14630x3632x4242 mm x (LxWxH)
Working Dimensions 48' x 16'8" x 13'11" (LxWxH) / 14630x5080x4242 mm x (LxWxH)
Axles 3 Axle / 3 Axle
Capacity 705-750 tph / 640-680 mtph
