Cedarapids® Portable Cone Crushers



Cedarapids Portable Cone Crushers deliver powerful crushing performance and efficient material handling in a highly mobile design. Available in a range of configurations and crushing capacities, these plants are engineered for portability, flexibility, and high-production output, making them ideal for secondary and tertiary crushing across a variety of applications.

Untitled design (6)

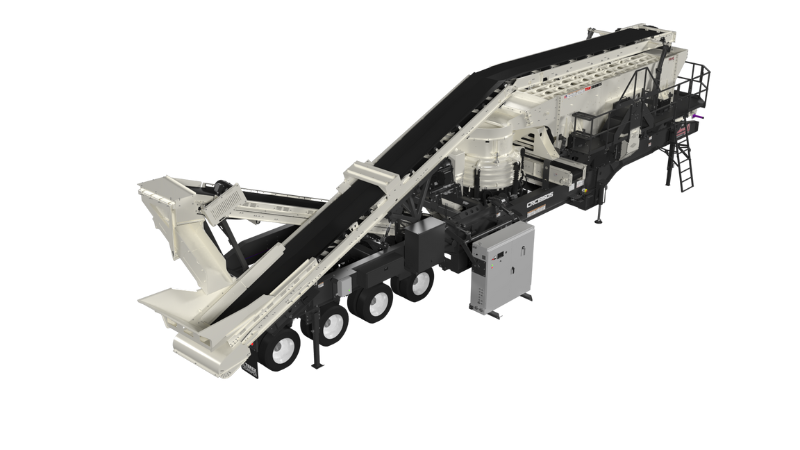

CRC1350S

Axles 4 4
Capacity 325-375 STPH 295-340 MTPH
Transport Dimensions 68'9" x 12'0" x 14'0" 20955 x 3657 x 4267 mm
Weight 133351 lbs 60487 kg
Working Dimensions 69'4" x 14'11" x 17'2" 21133 x 4546 x 5232 mm
Untitled design

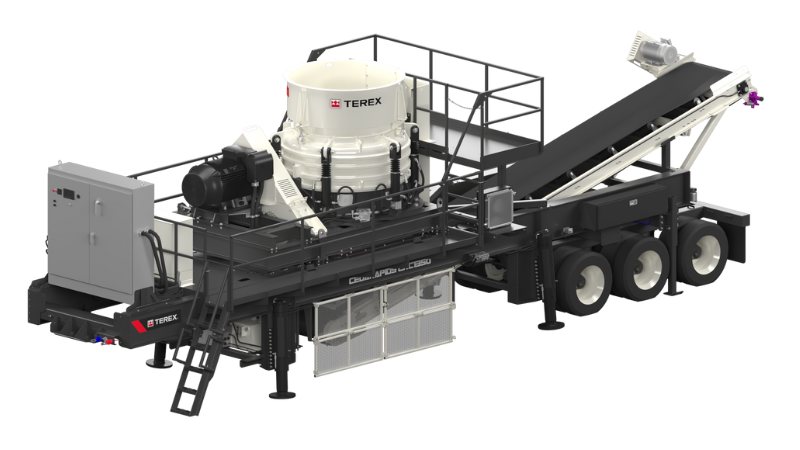

CRC1350

Axles 3 3
Capacity 325-375 STPH 295-340 MTPH; Capacity @ 1" setting
Transport Dimensions 46'10" x 11'11" x 13'11" 14274 x 2896 x 4242 mm
Weight 82944 lbs 37625 kg
Working Dimensions 46'10" x 11'11" x 15'3" 14274 x 2896 x 4648 mm
CRC1150_thumbnail

CRC1150

Axles 2 2
Capacity 165-320 tph 150-290 mtph
Transport Dimensions 46'11" x 11'11" x 13'6" 14300 x 3353 x 4115 mm
Weight 60900 lbs 50800 kg
Working Dimensions 46'11" x 11'11" x 14'6" 14300 x 3353 x 4420 mm
CRC1150S_1_thumbnail

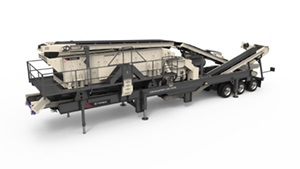

CRC1150S

Axles 3 3
Capacity 165-320 tph 150-290 mtph
Transport Dimensions 61'3" x 11'11" x 13'11" 18669 x 3632 x 4242 mm
Weight 110,800 lbs 50,258 kg
Working Dimensions 61'3" x 11'11" x 16'7" 18669 x 3632 x 5055 mm
Cedarapids CRC320 cone plant

CRC320

Axles 2 2
Capacity 419-452 tph 380-410 mtph
Transport Dimensions 46'10" x 11'11" x 13'9" 14275 x 3632 x 4191 mm
Weight 75650 lbs 34314 kg
Working Dimensions 45'4" x 11'11" x 14'9" 13818 x 3632 x 4496 mm
CRC380X_thumbnail

CRC380X

Axles 3 3
Capacity 450-500 tph 500-560 mtph
Transport Dimensions 52'6" x 11'5" x 13'1" 16000 x 3480 x 3988 mm
Weight 93150 lbs 42250 kg
Working Dimensions 52'6" x 11'5" x 14'3" 16000 x 3480 x 4344 mm
CRC380XHLS_thumbnail

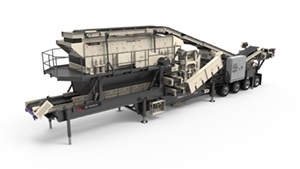

CRC380XHLS

Axles 4 4
Capacity 450-500 tph 500-560 mtph
Transport Dimensions 70'3" x 11'11" x 13'11" 21412 x 3632 x 4242 mm
Weight 138300 lbs 62731 kg
Working Dimensions 69'10" x 11'11" x 19'3" 21285 x 3632 x 5867 mm
CRC420 cone plant

CRC420

Axles 3 3
Capacity 705-750 tph 640-680 mtph
Transport Dimensions 48' x 11'11" x 13'11" 14630 x 3632 x 4242 mm
Weight 98665 lbs 44754 kg
Working Dimensions 48' x 16'8" x 13'11" 14630 x 5080 x 4242 mm
CRC450X_thumbnail

CRC450X

Axles 3 3
Capacity 460-585 tph 505-645 mtph
Transport Dimensions 52'6" x 11'5" x 13'5" 16002 x 3480 x 4089 mm
Weight 103600 lbs 47000 kg
Working Dimensions 52'6" x 11'5" x 14'7" 16002 x 3480 x 4445 mm
