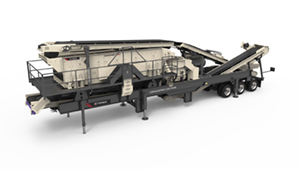

CRC1150S
The Cedarapids CRC1150S Portable Cone and Screen Plant delivers big capacity features in an economical highly portable plant. The cone and screen plant features the TC1150 Cone Crusher and the TSV Horizontal Sc...

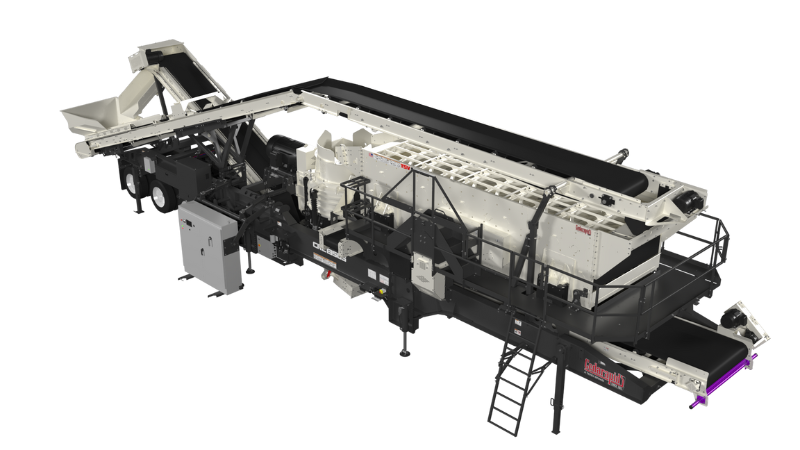

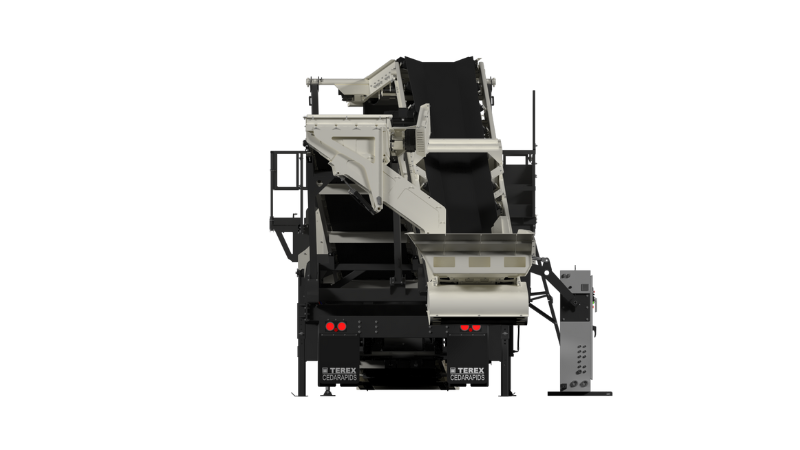

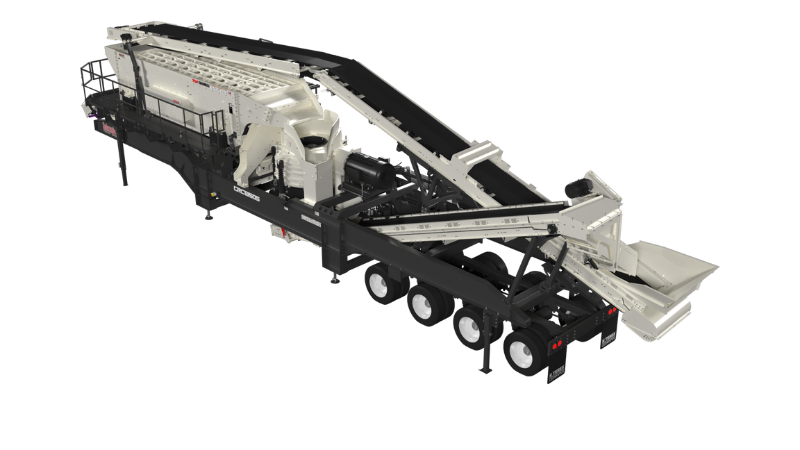

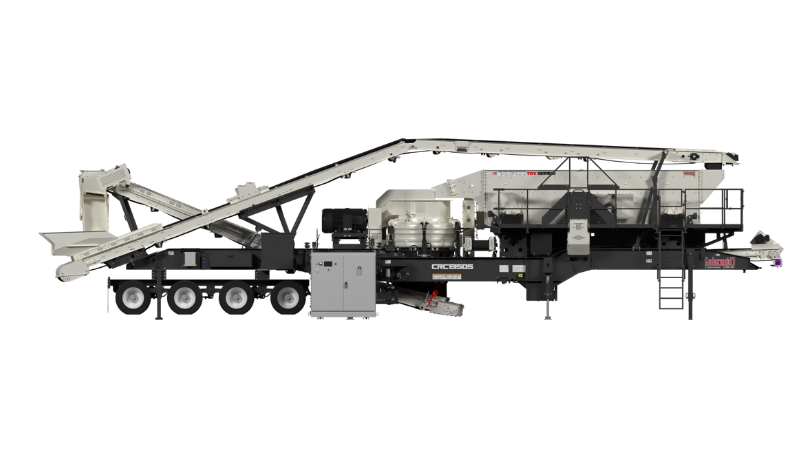

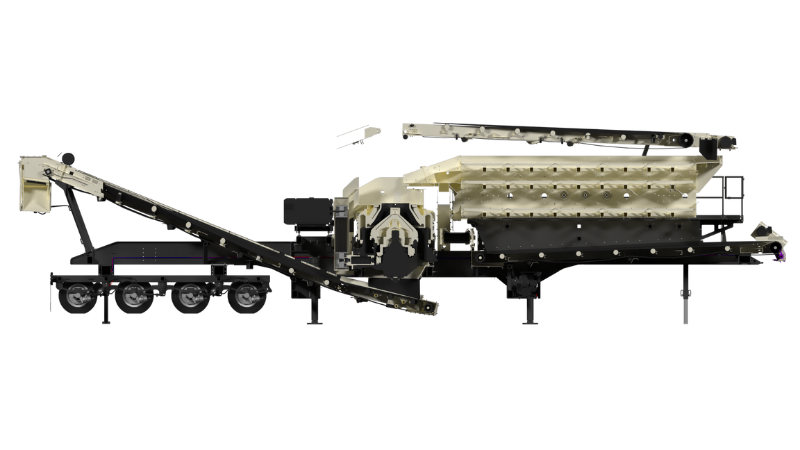

CRC1350S
Closed Circuit Cone Crusher and Screen Plant
.png?sfvrsn=c794d4b3_1)
The Cedarapids CRC1350S is the largest Portable Closed-Circuit Cone Crusher and Screen Plant on the market. It delivers high production, lower cost per ton, and superior portability. At just 14 feet wide, it remains easily transportable while offering unmatched efficiency in demanding applications.
At its core, the Cedarapids TC1300X Cone Crusher features high-efficiency roller bearings and advanced design enhancements for superior crushing performance. Powered by a 400 hp (300 kW) motor, this crusher is paired with a TSV 7’ x 3-deck Horizontal Screen, ensuring precision screening and maximum throughput.
Featuring an oversized cone feed hopper with an overflow chute promotes smooth material flow, while the straight-line under crusher conveyor and hydraulically powered transfer chute optimize efficiency. Integrated service platforms offer easy access for maintenance, and the built-in metal detector provides enhanced protection. Available in quad or 3+1 axle configurations, the CRC1350S is permitted in all states, making it the ultimate solution for high-capacity portable crushing and screening.
.png?sfvrsn=c44a7fc2_1 "Untitled design (6)")
| Specification | Value |
|---|---|
| Weight | 133,351 lbs / 60,487 kg |
| Transport Dimensions | 68'9" x 12'0" x 14' 0" (LxWxH) / 20955x3657x4267 (LxWxH) |
| Working Dimensions | 69'4" x 14'11" x 17'2" (LxWxH) / 21133x4546x5232mm (LxWxH) |
| Axles | 4 Axles / 4 Axles |
| Capacity | 325-375 STPH / 295-340 MTPH |
