ES Series
The Simplicity ES Series Horizontal Screen combines the efficient, high g-force El-Jay™ oval stroke motion with variable slope operation to handle larger deck loads.
TXS720H
Portable Screen Plant

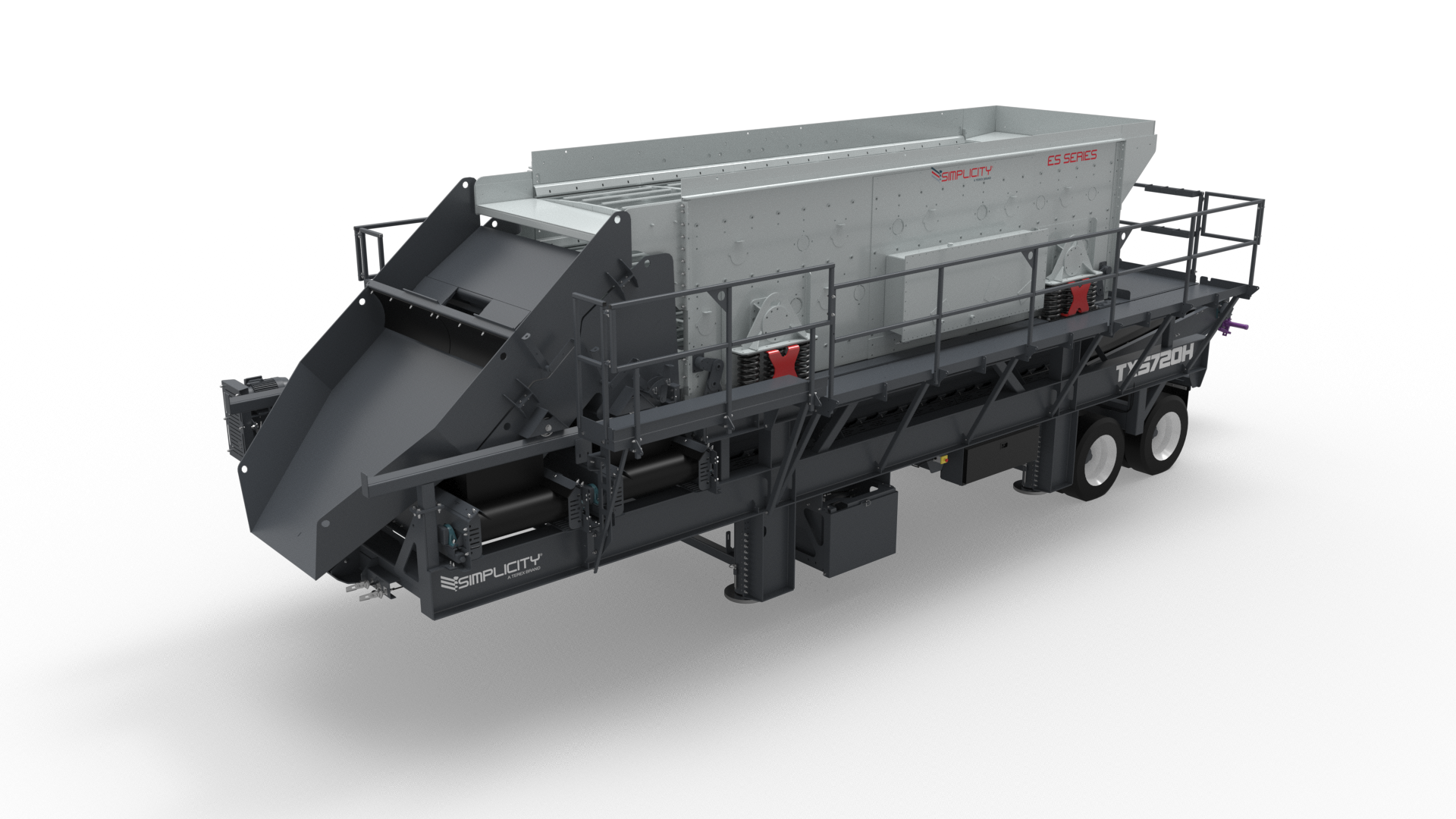

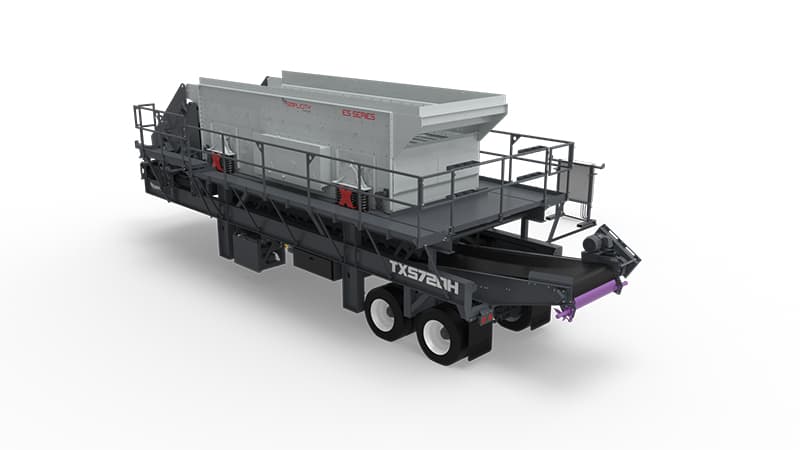

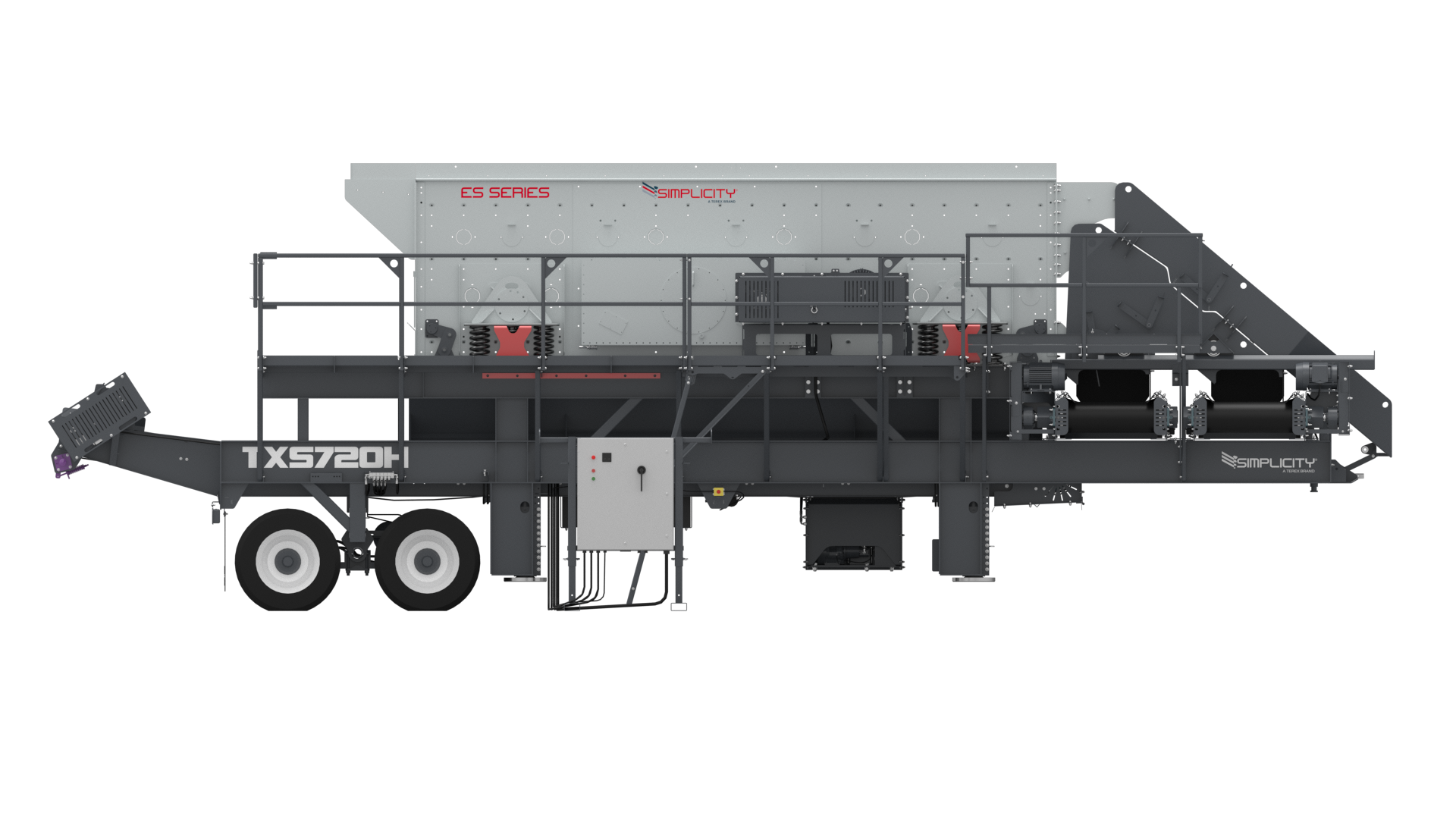

The Simplicity® TXS720H Portable Screen Plant combines high-capacity performance with smart design features for easy transport and operation. The 7' x 20' ES Series Horizontal Screen is driven by a flex shaft system that folds for travel, while roll-away blending chutes provide quick access and simplified maintenance.
Designed to keep production flowing, the plant features wide conveyor belts that easily manage peak load conditions, ensuring consistent throughput. Built to maximize the output of the screen, the TXS720H screen plant delivers such strong performance that it pushes the crushers to become the bottleneck in the circuit, not the screen.
| Specification | Value |
|---|---|
| Weight | 64,174 lbs / 29,110 kg |
| Transport Dimensions | 41'11"x11'10"x13'6" (LxWxH) / 12776x3612x4255 mm (LxWxH) |
| Working Dimensions | 40'11"x15'10"x14'6" (LxWxH) / 12471x4822x4568mm (LxWxH) |
| Axles | 2 Axle / 2 Axle |
