TXW516S
The Simplicity TXW516S combines a 5’ X 16’ incline wash screen with a single screw fine material washer.
TXW620HT
Triple Shaft Horizontal Wash Plant | Simplicity | TXW620HT

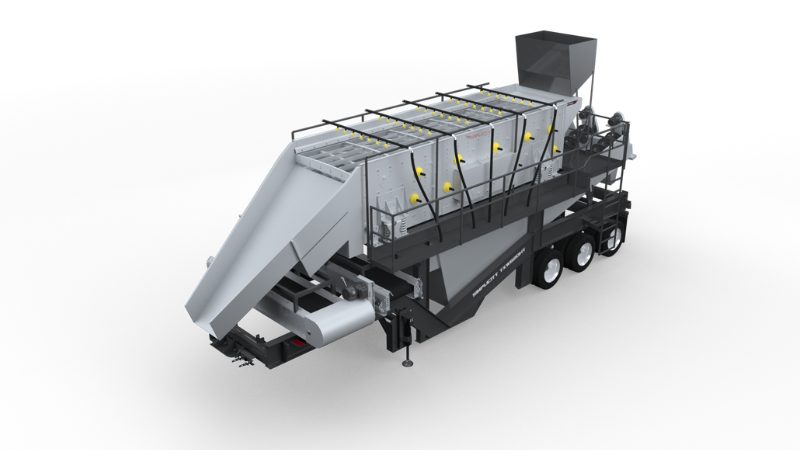

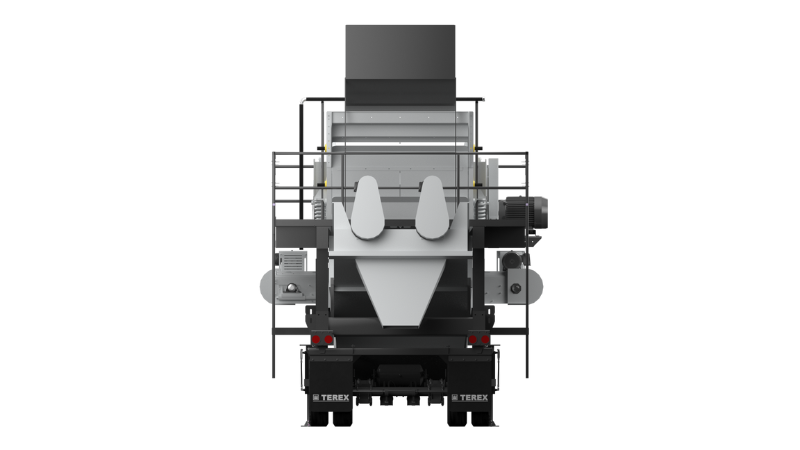

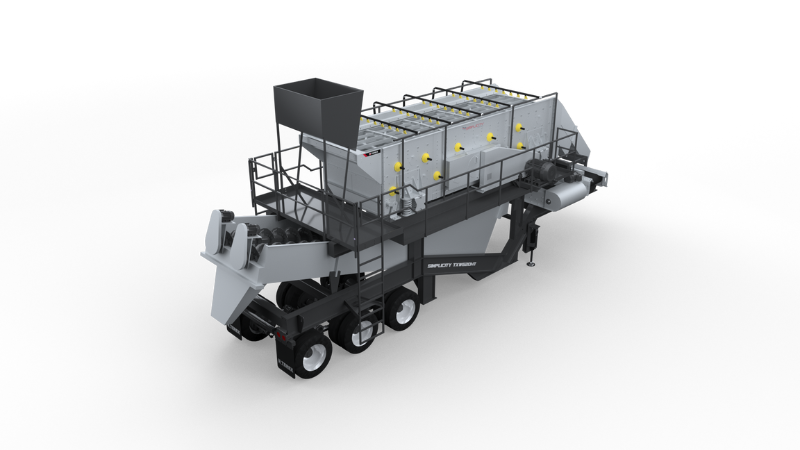

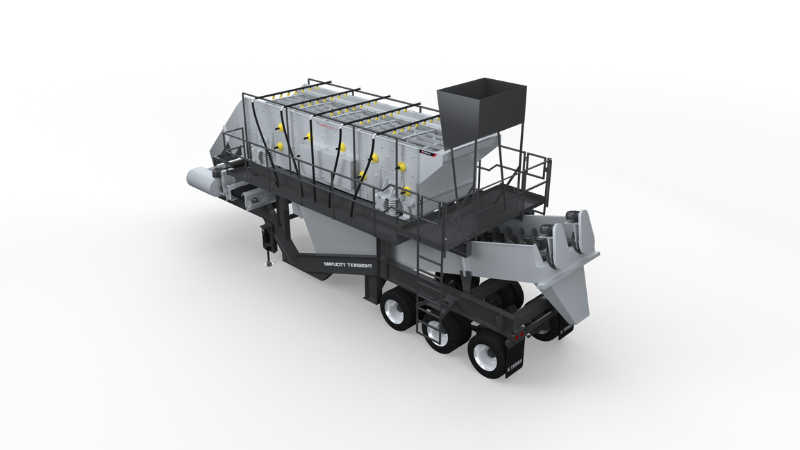

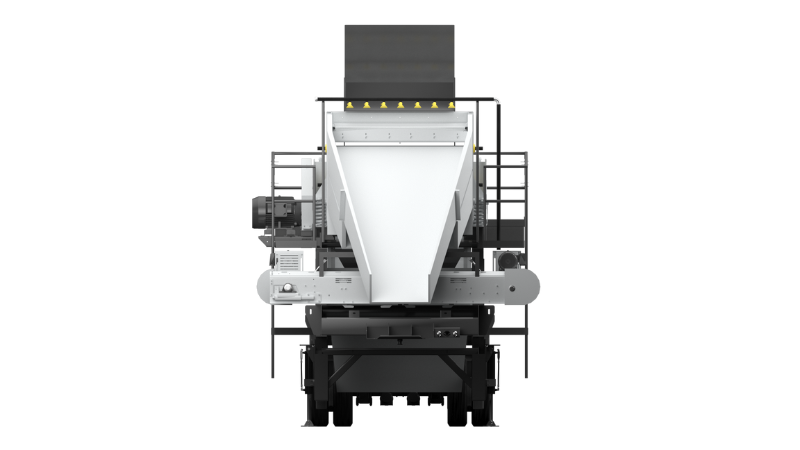

The Simplicity® TXW620HT Horizontal Wash Plant is the ultimate portable screening and washing solution. Engineered for efficiency and ease of transport, this plant features the trusted Simplicity ES Series Triple Shaft Horizontal Screen, equipped with spray bars on all three decks for thorough material washing. Additional spray bars in the feed box and under-screen collection flume ensure optimal material flow and cleaning throughout the process.
Paired with a 36" x 25' Twin-screw fine material washer, this portable wash plant delivers effective removal of excess fines while maximizing production flexibility. This powerful combination allows you to produce up to four products simultaneously, with three washed and sized aggregates plus a high-quality sand product from the fine material screw washer. The adjustable spray system will accommodate a variety of applications is built to handle demanding jobs.
| Specification | Value |
|---|---|
| Weight | 69,750 lbs / 31,638 kg |
| Transport Dimensions | 46'6"x13'1"x14'8" (LxWxH) / 14173x 3988x4470 mm (LxWxH) |
| Axles | 3 Axle / 3 Axle |
Image and Video Gallery
Related Products
-
![Cedarapids TXW516S Portable Wash Plant]()
-
![Cedarapids TXW616T Portable Wash Plant]()
TXW616T
The Simplicity TXW616T combines a 6’ X 16’ incline wash screen with a twin screw fine material washer.
