Cedarapids^® Triple Shaft Horizontal Screens

Triple Shaft Horizontal Screens deliver strength, smooth operation, and long life, and are engineered for consistent performance across a variety of screening applications.

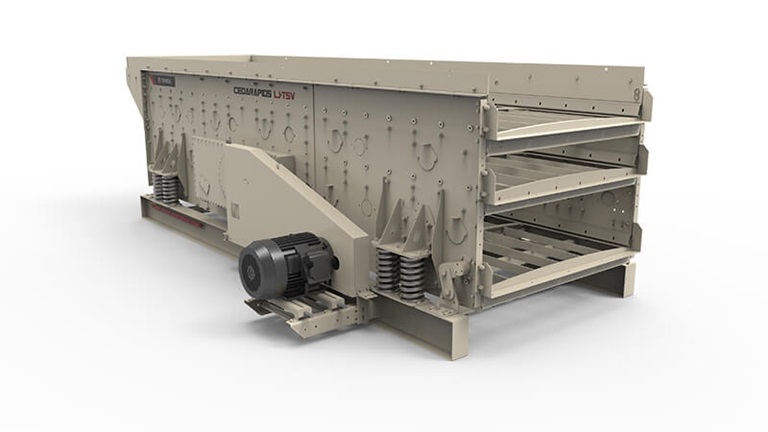

Cedarapids Triple Shaft Horizontal Static TSV

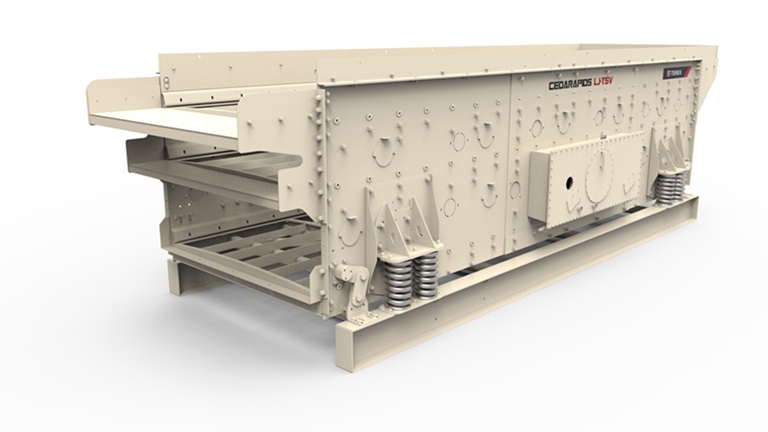

Static Triple Shaft Horizontal TSV Screen Cedarapids

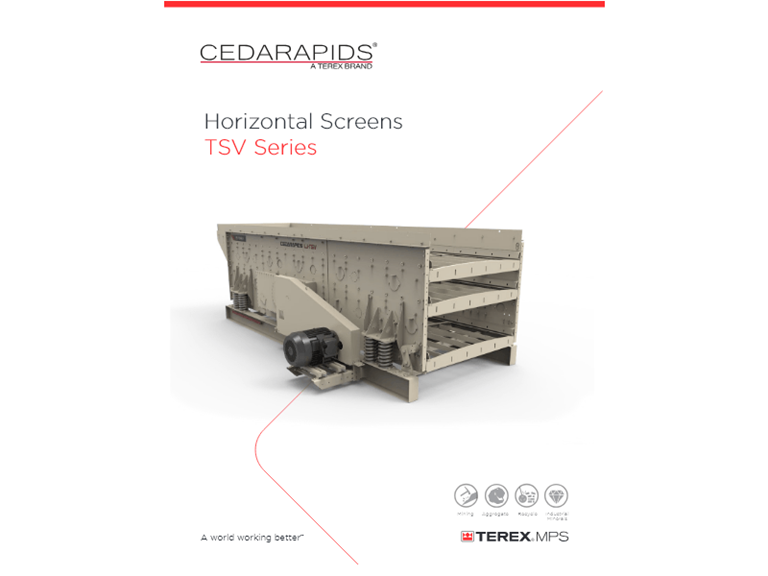

TSV Series

The Cedarapids TSV Series Triple Shaft Horizontal Screen is the original and still the benchmark for high‑production horizontal screening. The TSV combines a high‑g‑force oval-stroke motion with variable-slope operation, delivering performance capabilities that traditional horizontal screens cannot match.

At the core of the TSV is the triple shaft mechanism, which generates an aggressive oval stroke to move material efficiently across the deck while maintaining consistent stratification. Combined with an adjustable slope from 0° to 10° in 2.5° increments, the TSV can be fine‑tuned to optimize production, material flow, and screening efficiency across a wide range of applications.

Additional steel reinforcement in the rock zone provides industry‑leading wear resistance where impact is greatest, extending service life and reducing downtime. Optional bottom deck deflector plates further enhance separation efficiency while improving material control and overall screen performance.

Available in two‑deck and triple‑deck configurations, the TSV Horizontal Screen offers sizes ranging from 5’ x 16’ up to 8’ x 20’, making it a versatile solution for producers who demand flexibility without compromise. Whether used in aggregate production, mining, or construction material processing, the TSV elliptical screen delivers the consistency, capacity, and reliability required for high‑production screening operations.

The Cedarapids TSV Series Triple Shaft Horizontal Screen remains the original that others strive to duplicate. When production matters, and performance can’t be compromised, the TSV Series sets the standard.
