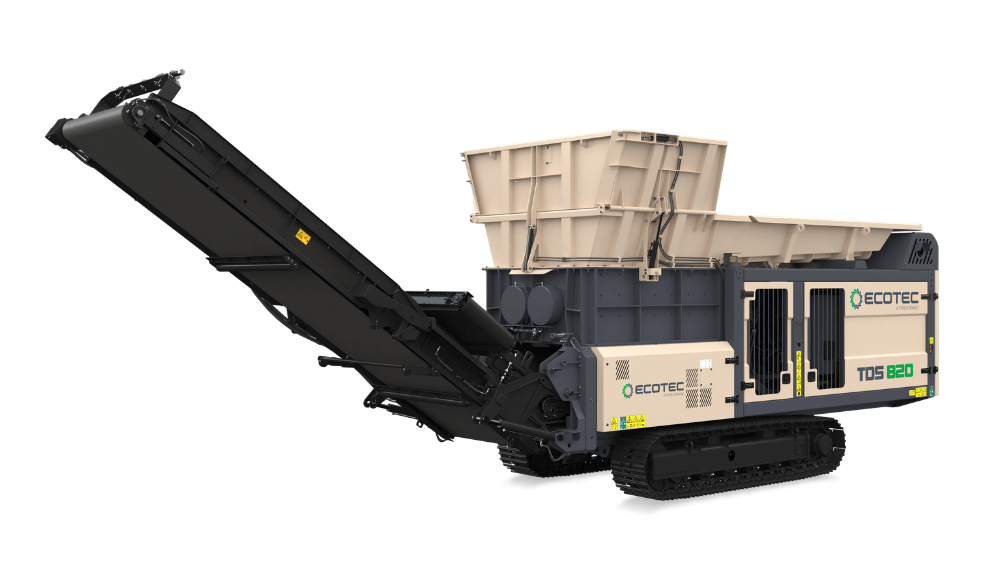

TDS 820

Mobile Slow Speed Shredder

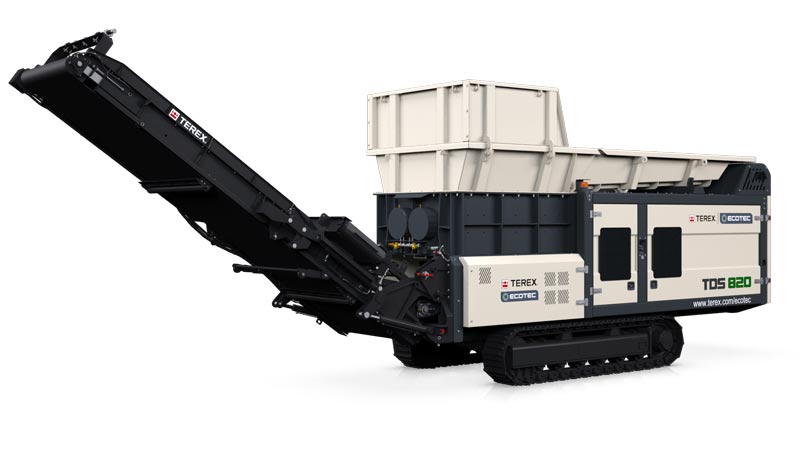

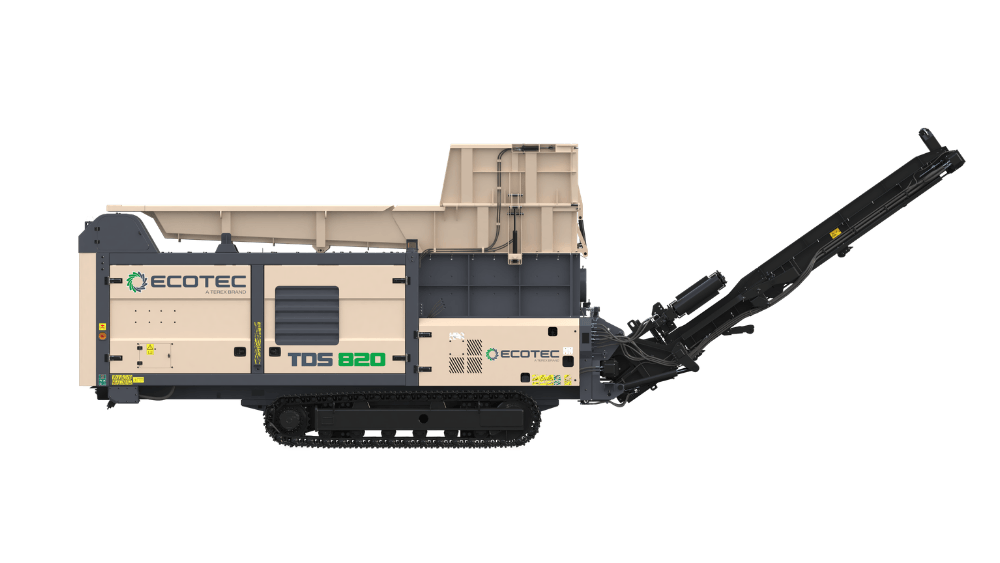

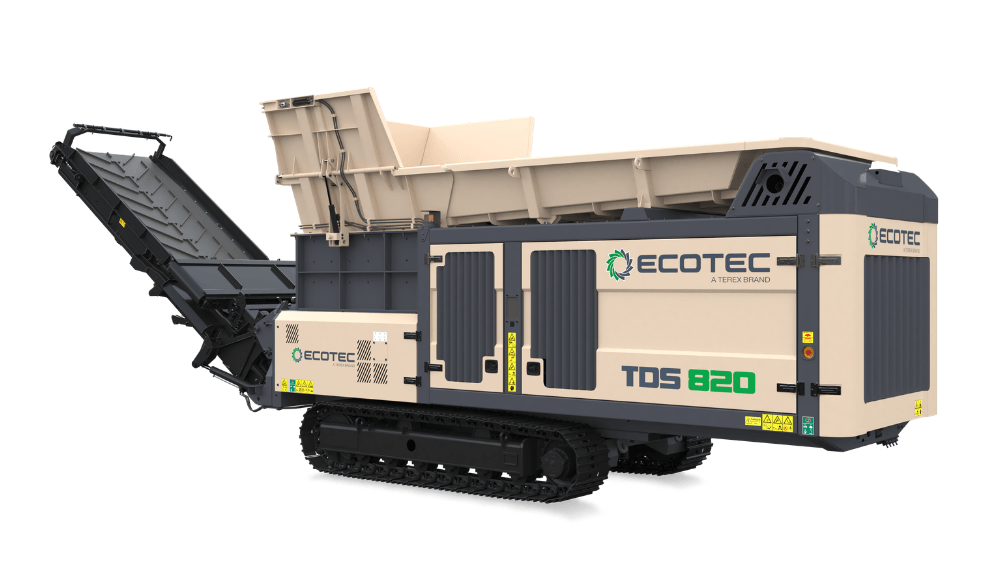

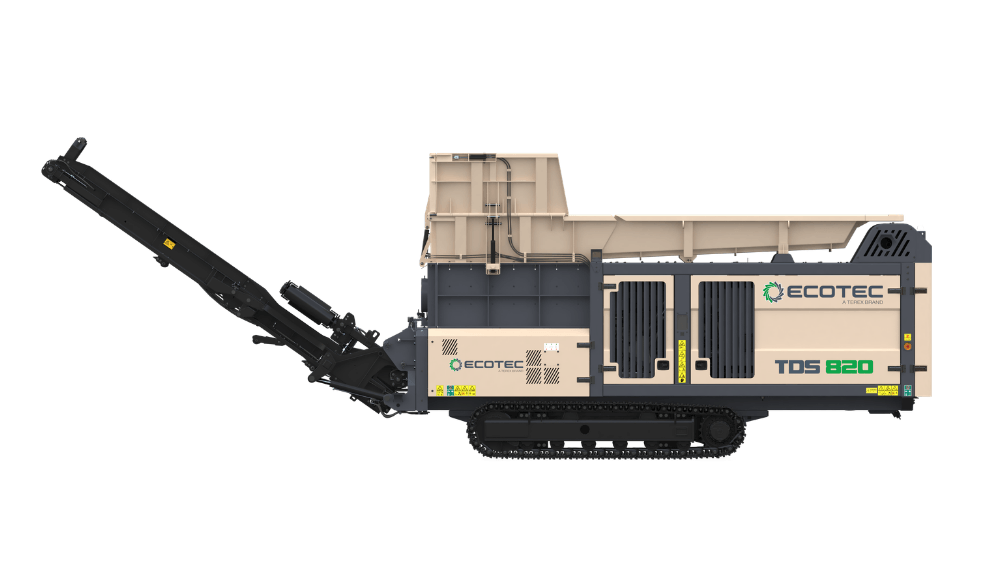

tds 820 Shredder Side View

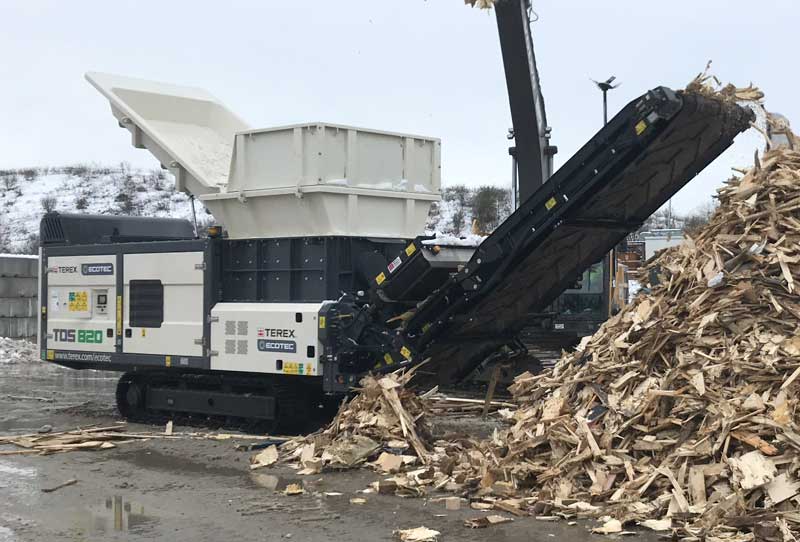

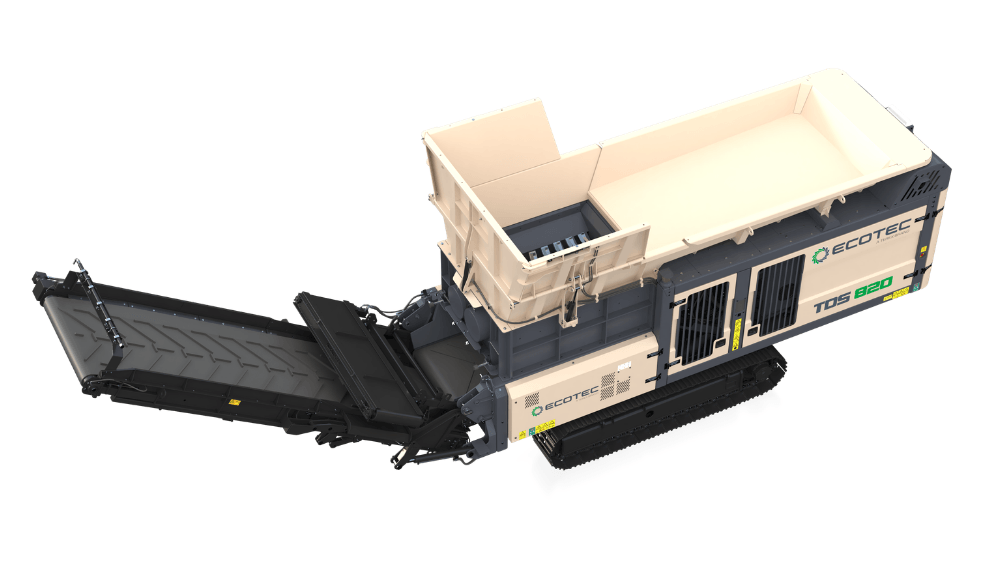

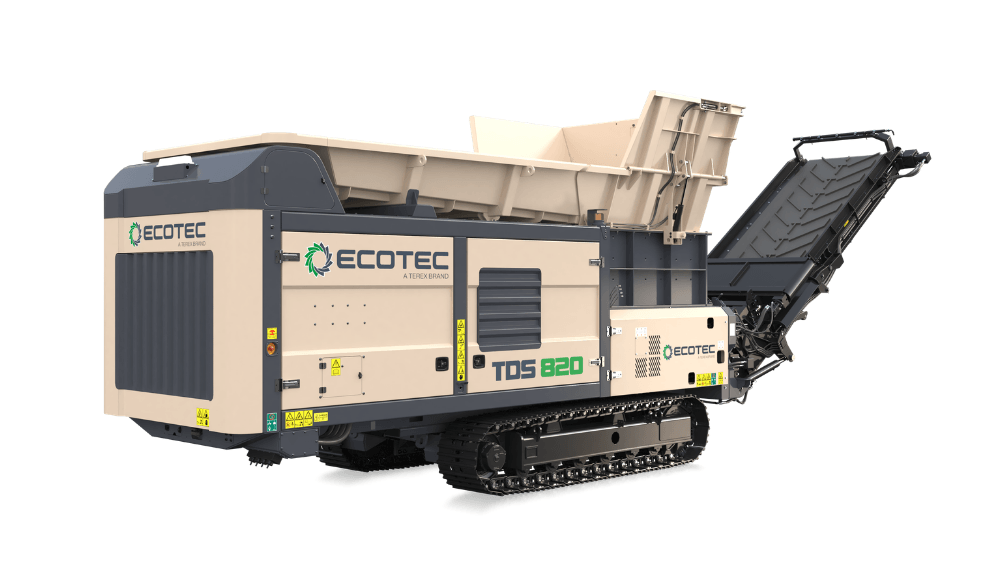

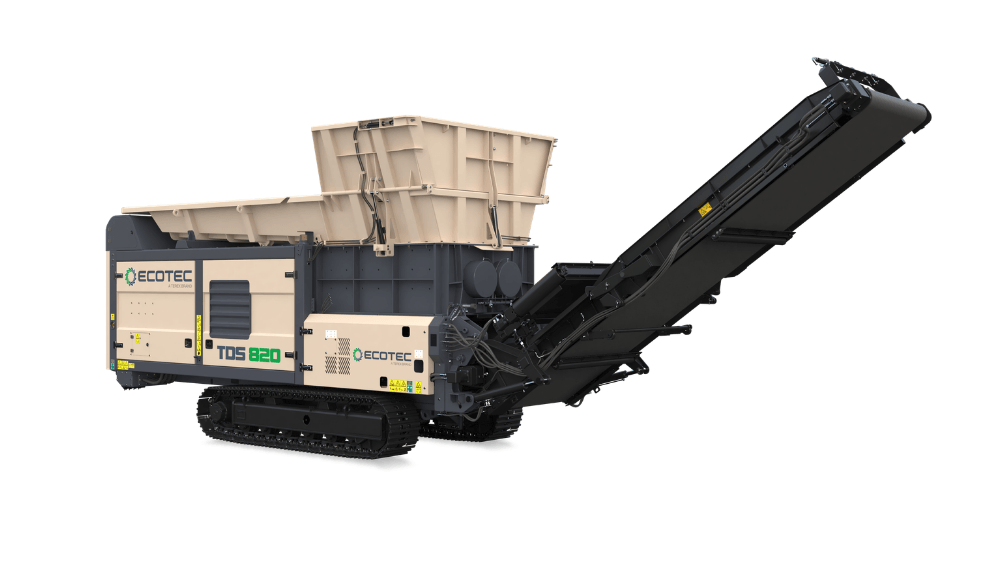

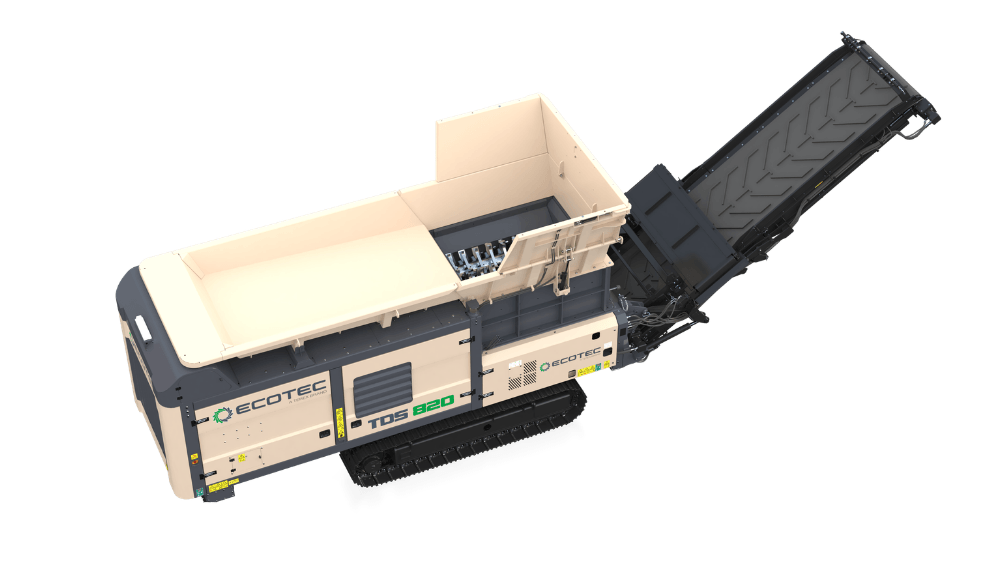

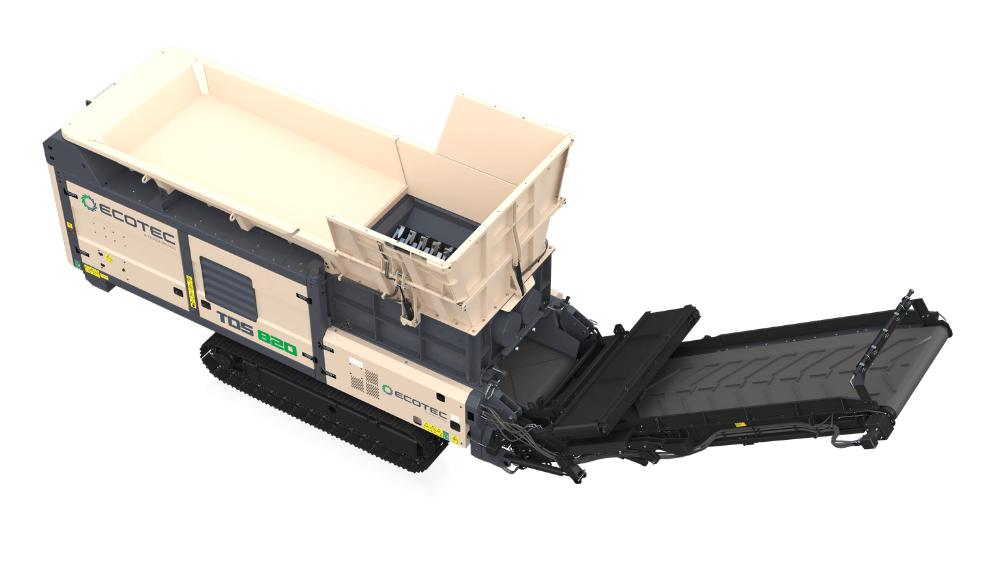

The TDS 820 mobile slow speed shredder features customisable shredding programs that give operators the opportunity to configure the machine to their specific requirements, reduce material wrapping and maximise production. Designed with independently-driven shafts, this double-shaft slow speed shredder is assured to give machine operators excellent performance in even the most challenging of applications.

Key features include hydrostatic drive that provides increased protection against contamination and allows for bi-directional shredding. The 2 metre long shafts are manufactured with a fully-welded tooth configuration, which makes for massive throughput and excellent material reduction. Its independent gearboxes enable each shaft to be run separately reducing material wrappage for effective shredding operations.

Additional features include the tipping feeder which increases the feed area. Hopper extensions provide increased capacity in bulky applications. The machine is manoeuvred via a robust tracked undercarriage making it a great solution for difficult terrain.

Dimensions
Transfer Conveyor
Magnet Conveyor
Product Conveyor

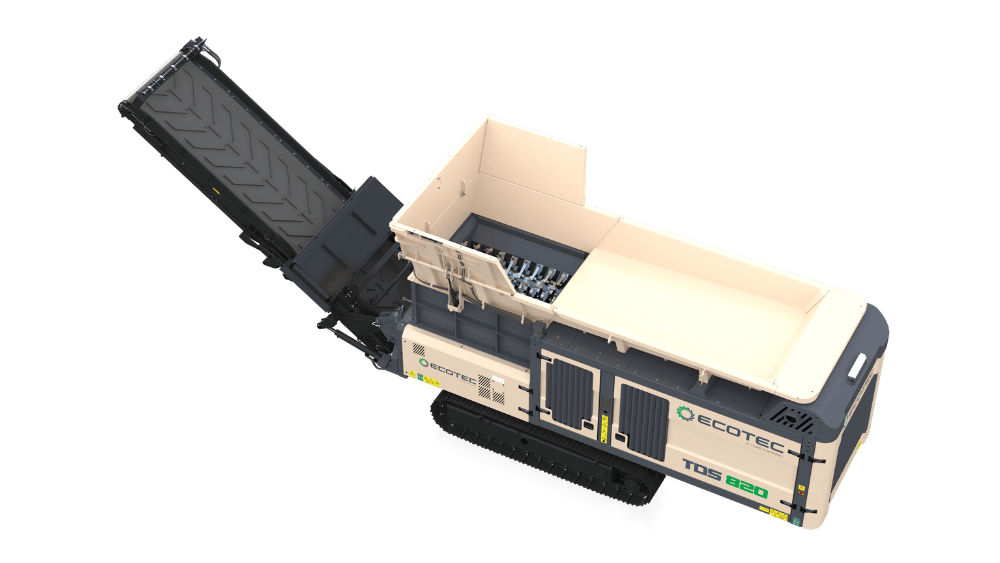

Tipping Feeder & Hopper

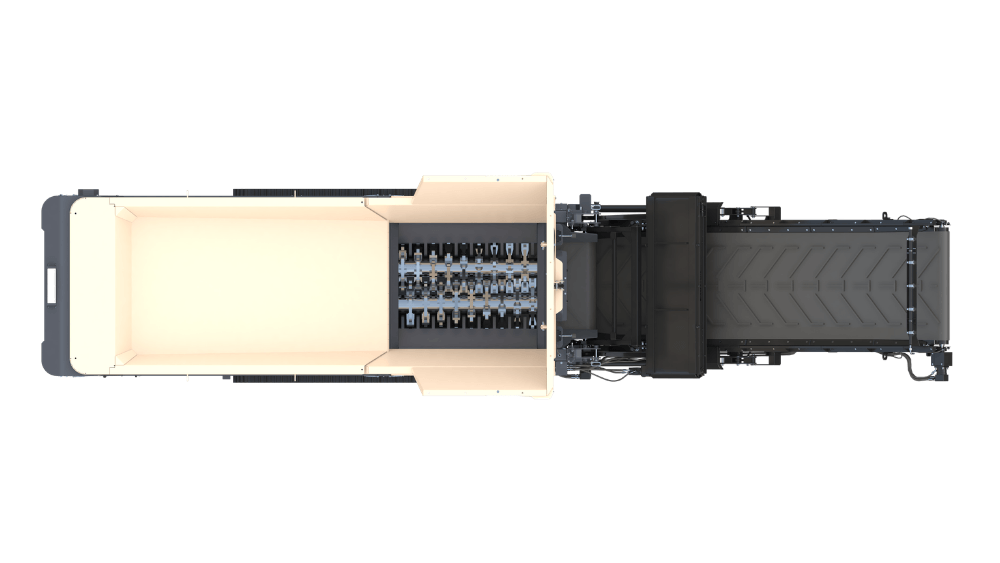

Shredding Chamber
Tracks
Display Screen
Powerunit
Specification Value
Shaft Length 6'7" / 2,000mm
Engine Scania DC13 440HP Stage V (EU) / Scania DC13 331kW Stage V (EU)
Engine Scania DC13 440HP Tier 4 Final (USA) / Scania DC13 331kW Tier 4 Final (USA)
Engine Scania DC13 497HP Stage IIIA Constant Speed (ROW) / Scania DC13 371kW Stage IIIA Constant Speed (ROW)
Weight 60,627lbs / 27,500kg
