MT130I SR

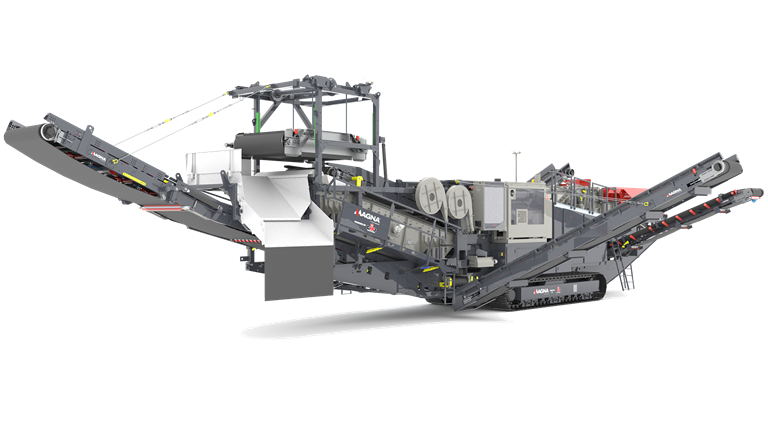

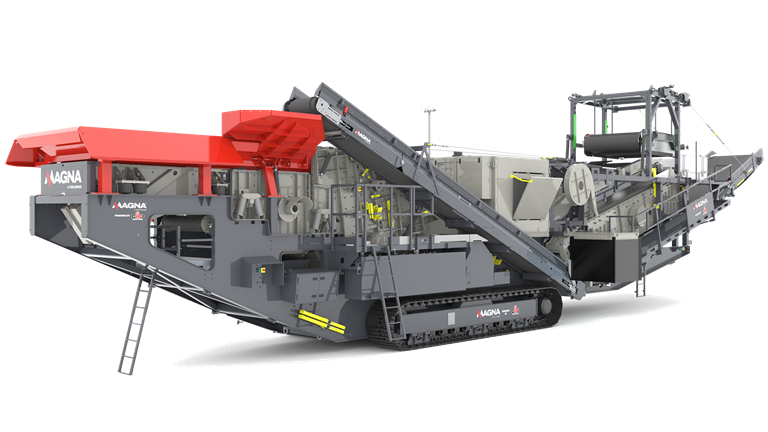

The MAGNA MT130I SR mobile impactor provides the flexibility of a tracked impact crushing and screening plant on one machine. The key component is the on-board detachable single, double or triple deck screen. For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine. The recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product. The machine is built around a robust hydraulic drive 1300mm x 1270mm (50” x 51”) impact chamber crusher.

Technical Documentation

Measurements

Rotor Size 51” x 50” 1300mm x 1270mm
Weight 194,000 lbs – 220,500 lbs 88,000kg - 100,000 kg

Productivity

Output Potential 771 US tph 700 tph
