CRC320

Cone Plant

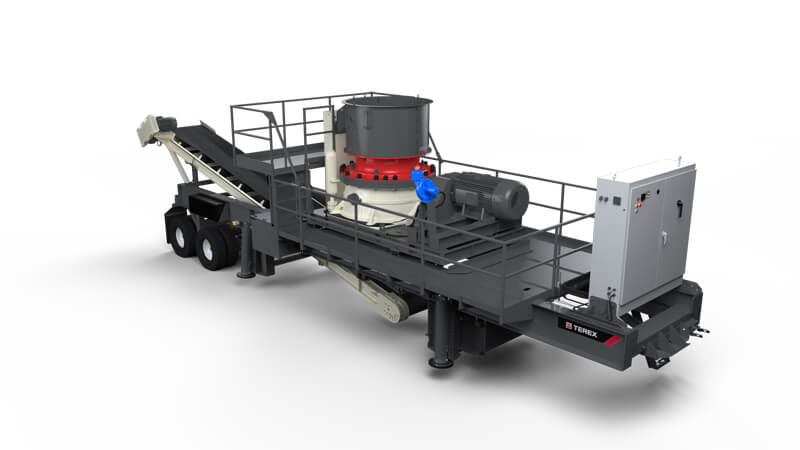

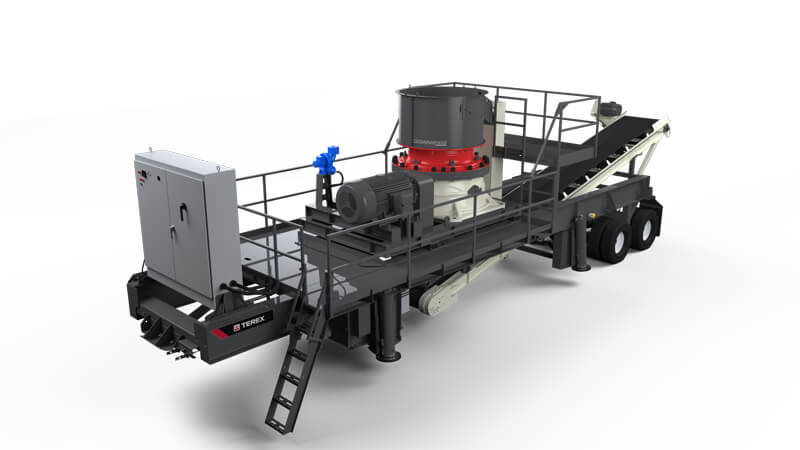

The CRC320 combines the TG320 cone and a 15 hp, 42” wide discharge conveyor on a portable all electric chassis. The crusher is fitted with an overflow chute and removable overflow panel so the overflow can buffer feed surges in a closed circuit application. The trailer width and length allow easy movement from site to site. The plant has a variety of jack options available from simple crank landing to unique patent pending "canted" run-on jacks that stabilizes the movement of the crusher.

Specifications
Downloads

Specification	Value
Weight	75,650 lbs / 34,314 kg
Transport Dimensions	46'10" x 11'11" x 13'9" (LxWxH) / 14275x3632x4191 mm x (LxWxH)
Working Dimensions	45'4" x 11'11" x 14'9" (LxWxH) / 13818x3632x4496 mm (LxWxH)
Axles	2 Axle / 2 Axle
Capacity	419-452 tph / 380-410 mtph
