WC1150S
Cone and Screen Plant
The Terex® MPS WC1150S Cone-Screen plant is a high performance, medium sized wheeled crushing-screening system. At the heart of the plant is the TC1150 cone crusher with hydraulic setting, tramp release & unblocking system. Its unique crushing action provides excellent capacity, high reduction & good product cubicity for the production of high quality aggregate & sub-base materials. Onboard screen allows for sizing product from a single plant. A level sensor over the cone crusher regulates the feed to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life & optimal product shape. Plants comes with added features for simple and easy installation of the plant.
| Specification | Value |
|---|---|
| Weight | 84,878 lbs / 38,500 kg |
| Transport Dimensions | 45'1"x9'3"x13'11" (LxWxH) / 13733x2804x4239 mm (LxWxH) |
| Working Dimensions | 42'11"x17'8"x24'4" (LxWxH) / 13072x5375x7409 mm (LxWxH) |
| Axles | 3 axles / 3 axles |
| Capacity | 165-320 tph / 150-290 mtph |
Image and Video Gallery
Related Products
-
![TC1150_thumbnail]()
-
![WJ3042 jaw plant]()

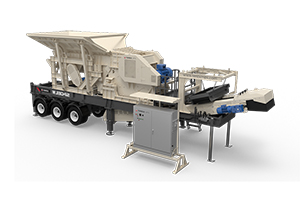

WJ3042
Incorporating a JW42 jaw crusher and a heavy duty vibrating grizzly feeder, the WJ3042 gives optimum production in a range of applications and transports in containers.
