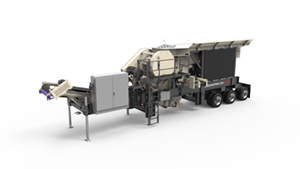

CRJ3042
The Cedarapids® CRJ3042 plant combines the popular JW42 jaw crusher with a high stroke, 42” x 20’ (1067 x 6096 mm) vibrating grizzly feeder resulting in a high production portable crushing machine.
CRJ3255
The Cedarapids® CRJ3255 plant combines the popular JW55 jaw crusher with a high stroke, 52” x 20’ (1321 x 6096 mm) vibrating grizzly feeder resulting in a high production portable crushing machine. This plant includes a hopper design that can handle severe primary crushing applications. The highly mobile CRJ3255 is easy to operate and maintain and offers new levels of reliability and convenience. The jaw crusher features the latest improvements such as wedge release jaw faces and fully hydraulic wedge jaw crusher setting. The tail of the product conveyor lowers for operation, maximizing clearance under the jaw crusher. The conveyor discharge height adjusts to reduce material impact on the receiving conveyor. Multiple options are available, allowing customers to configure the CRJ3255 to meet specific needs.
| Specification | Value |
|---|---|
| Weight | 135,585 lbs / 61,500 kg |
| Transport Dimensions | 51'6"x11'1"x13'5" (LxWxH) / 15697x3378x4090 mm (LxWxH) |
| Working Dimensions | 51'6"x15'2"x14'10" (LxWxH) / 15697x4623x4521 mm (LxWxH) |
| Axles | 4 Axle / 4 Axle |
| Capacity | 255-760 tph / 230-680 mtph |
