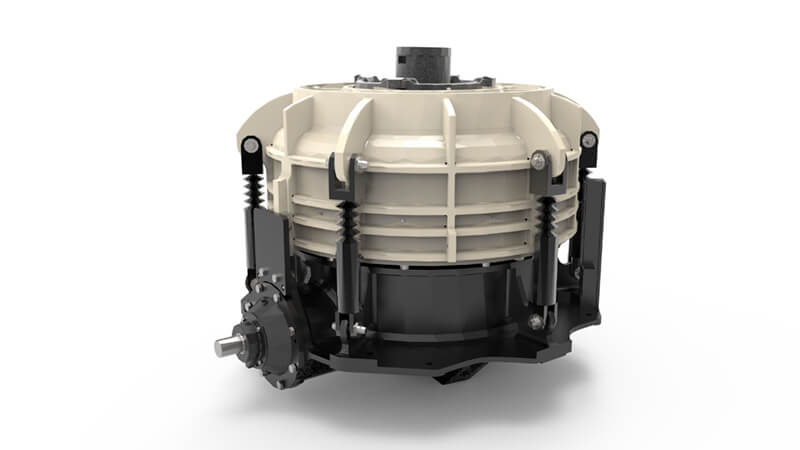

TC1300
Cone Crusher
The Terex® TC1300 Cone Crusher provides excellent reduction and product cubicity for the production of high quality aggregate and sub-base material.
The TC1300 is a 300hp fully loaded cone crusher with a maximum capacity of 180-350 tph.
The TC1300 is a 300hp fully loaded cone crusher with a maximum capacity of 180-350 tph.
| Specification | Value |
|---|---|
| Weight | 48,500 lbs / 22,000 kg |
| Head Diameter | 51" / 1300 mm |
| CSS Range | 1-1 51/64" / 22-45 mm |
| Capacity | 180-350 tph / 165-320 mtph |
| Motor Size | 300 hp / 225 kW |
