JW42
The JW Series is engineered for portability and ease of use. The rugged design delivers the reliability you can expect from Terex MPS.

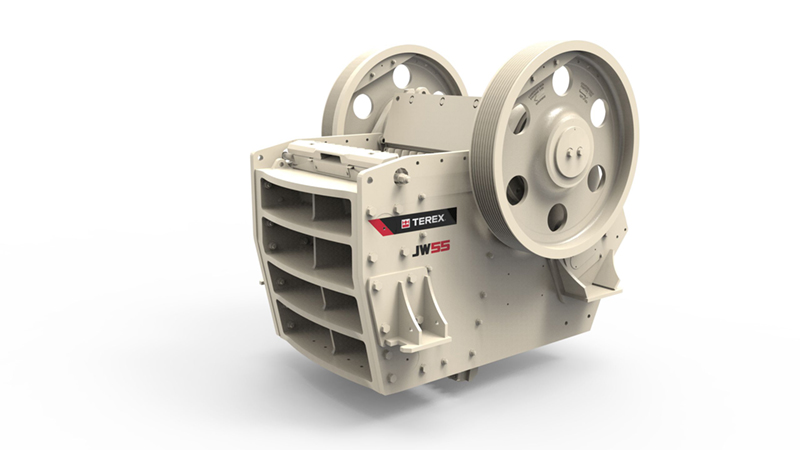

JW55
Jaw Crusher
The JW Series is engineered for portability and ease of use. The rugged design delivers the reliability you can expect from Cedarapids.
They feature a hydraulically actuated wedge system that allows variable closed side-setting adjustments to be made quickly and easily.
Designed to suit track, mobile or static plant installations, these durable crushers utilize heavy duty components for optimum operation and long life.
They feature a hydraulically actuated wedge system that allows variable closed side-setting adjustments to be made quickly and easily.
Designed to suit track, mobile or static plant installations, these durable crushers utilize heavy duty components for optimum operation and long life.
| Specification | Value |
|---|---|
| Weight | 57,860 lbs / 26,250 kg |
| Feed Opening | 32x55" / 820x1400 mm |
| CSS Range | 3.5-9" / 85-225 mm |
| Capacity | 255-760 tph / 230-680 mtph |
| Motor Size | 200 hp / 150 kW |
