MC1350

Cone Crusher Module

The MC1350 Cone Crusher Module is designed around the proven, high-performance TC1300X cone with a head diameter of 51” (1300mm) and high-efficiency tapered roller bearings. The MC1350 structure features a one-piece upper frame for all liner configurations, a no-hit concave, and new mantle liner retention systems. Other enhancements include greater tramp clearance and increased clamp hold-down pressure.

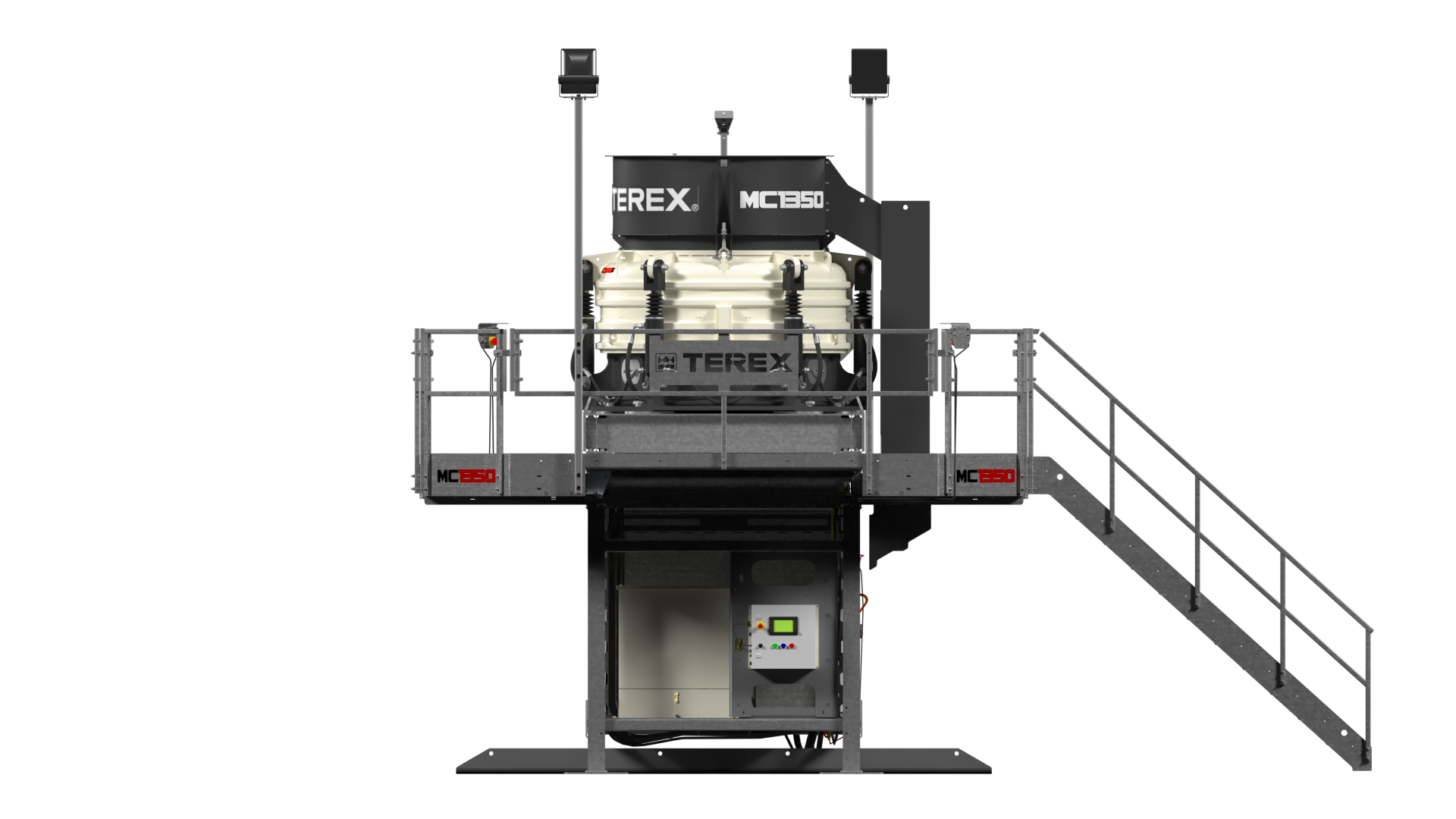

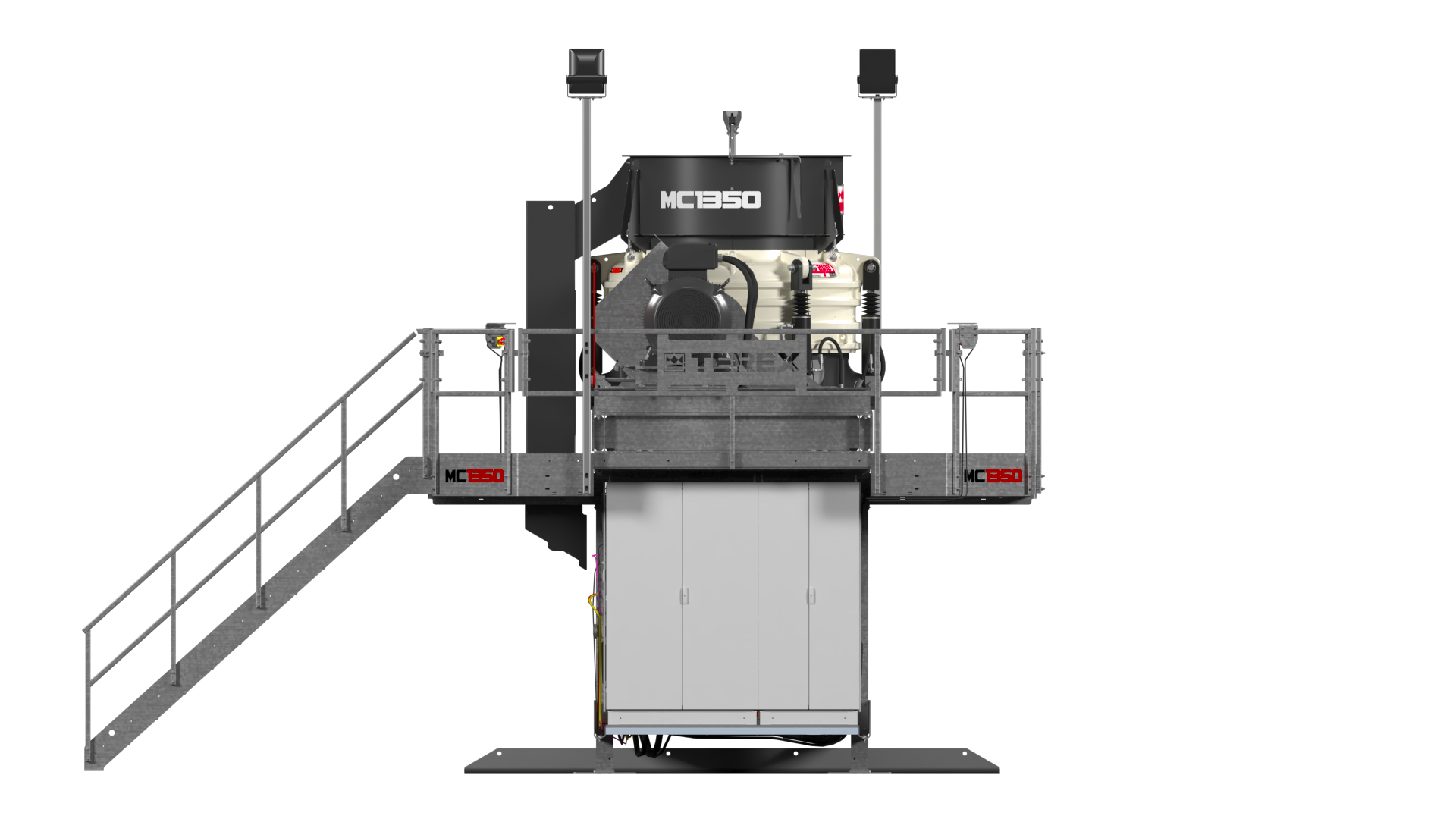

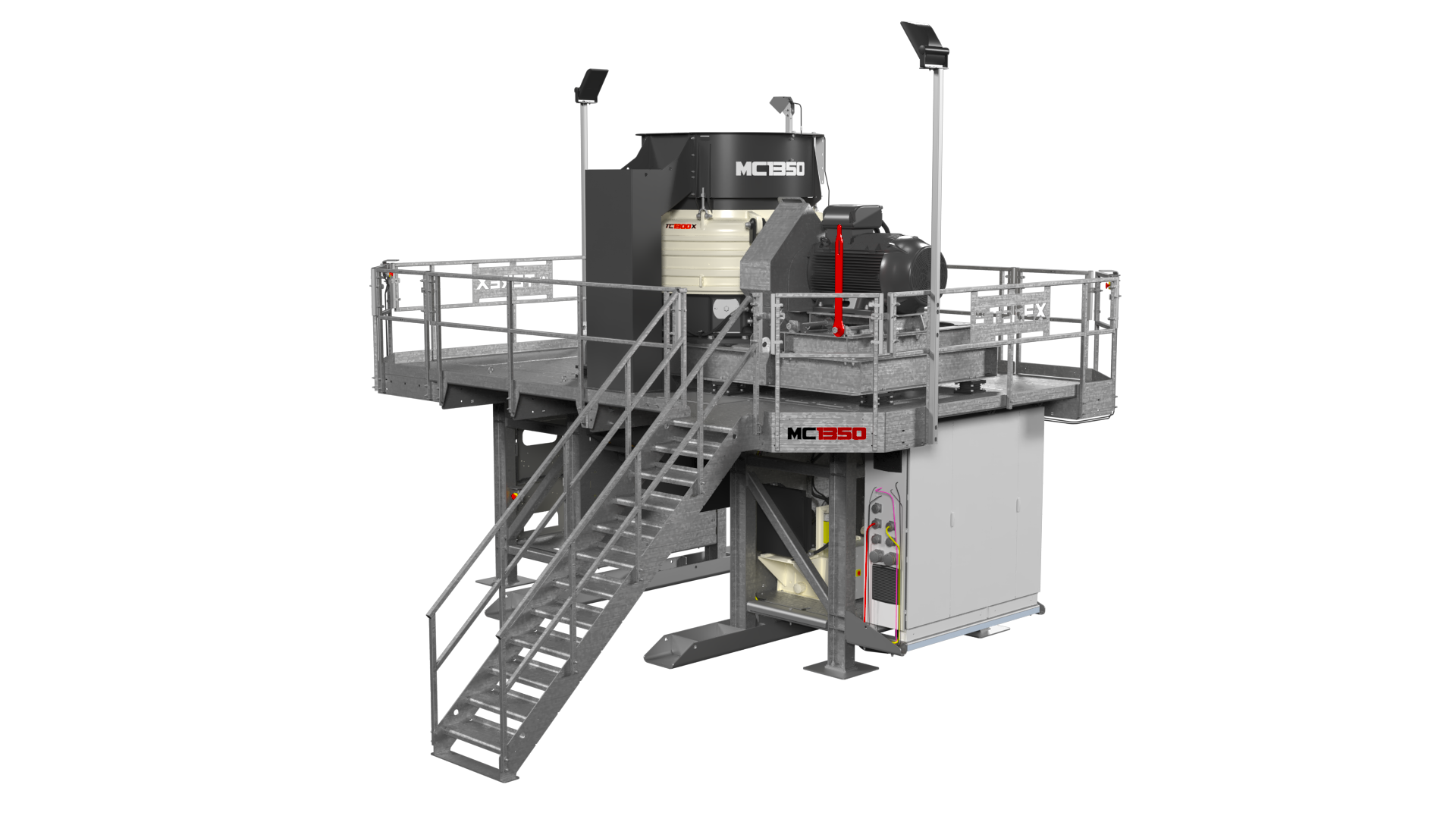

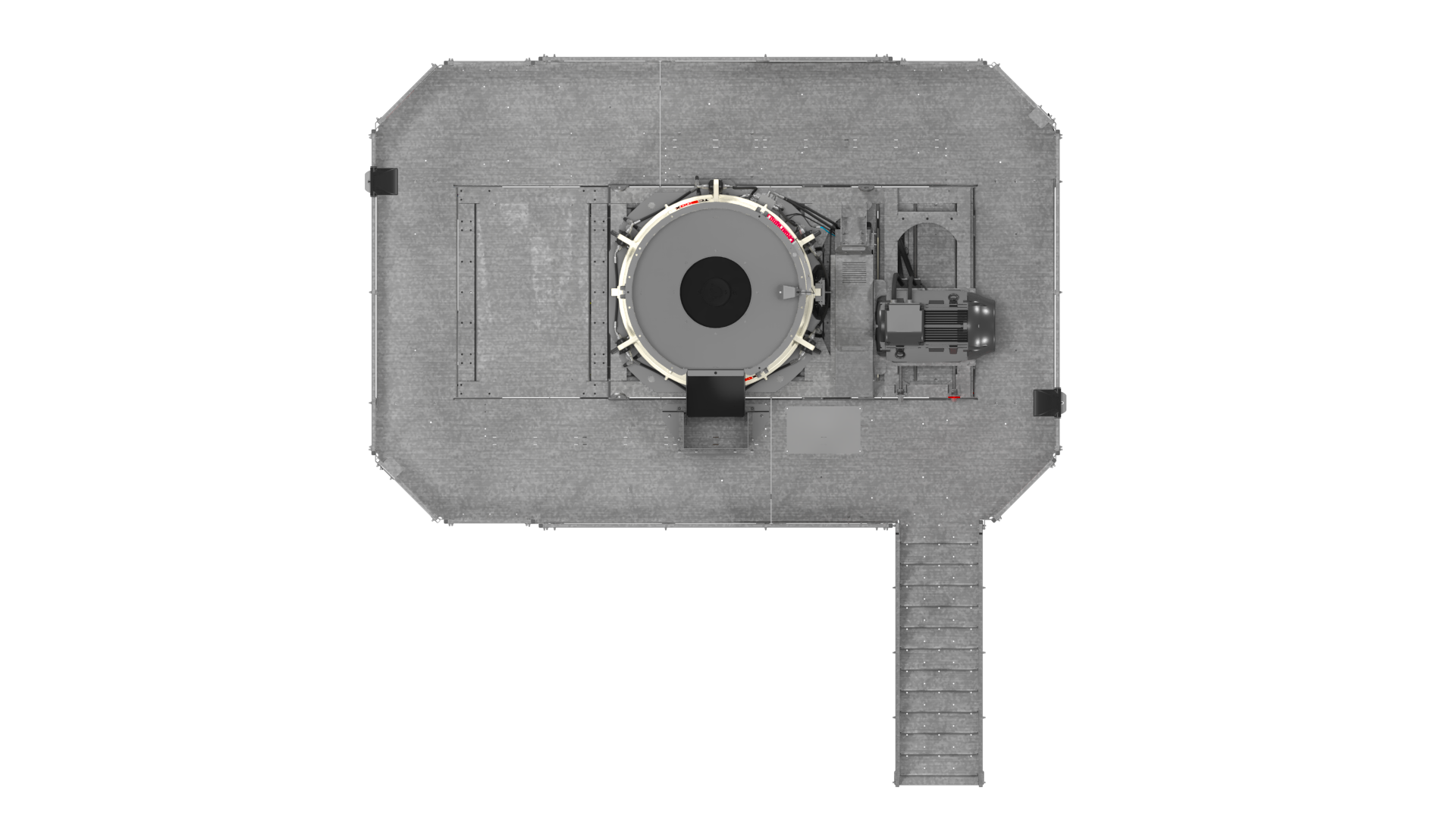

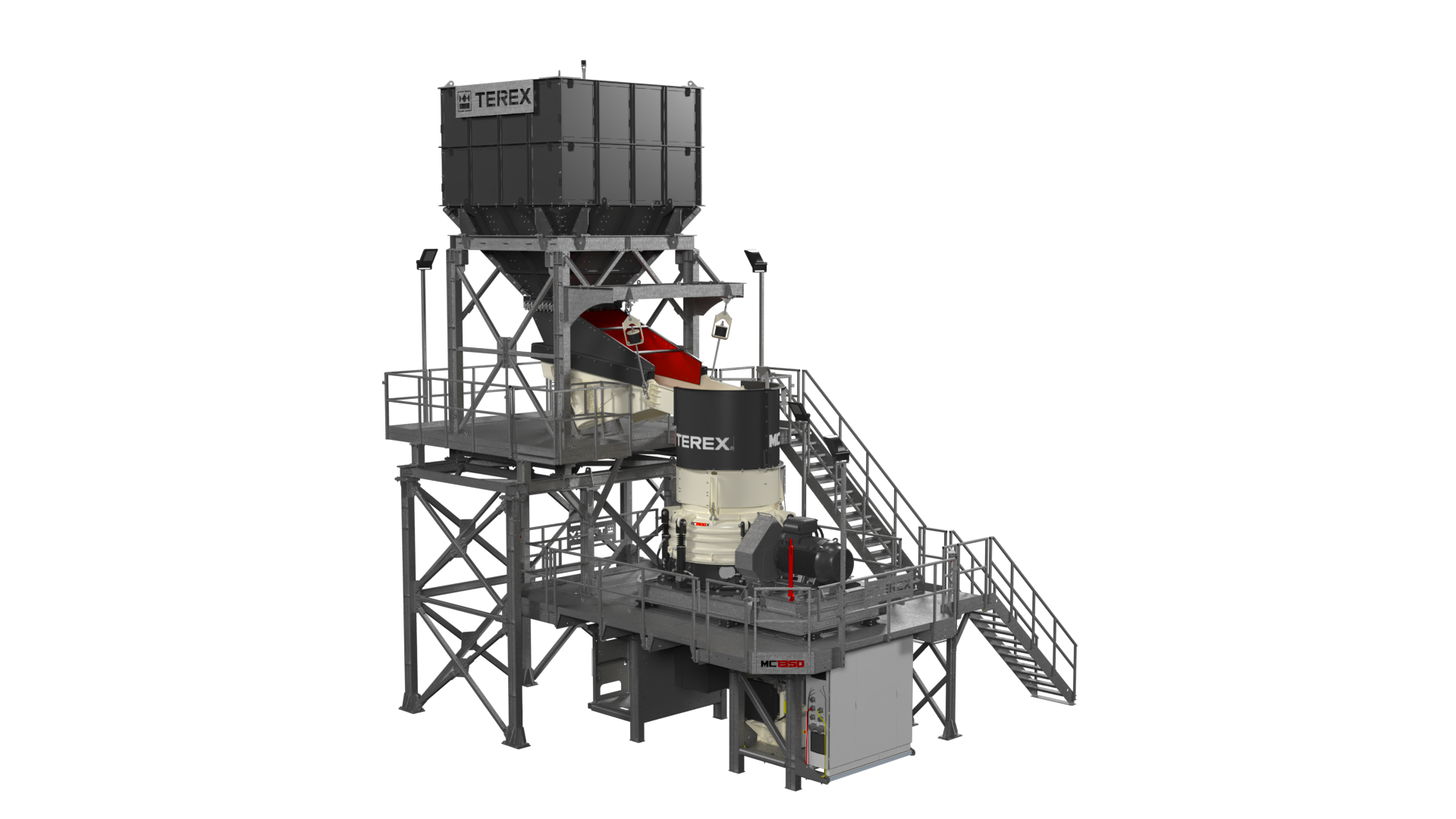

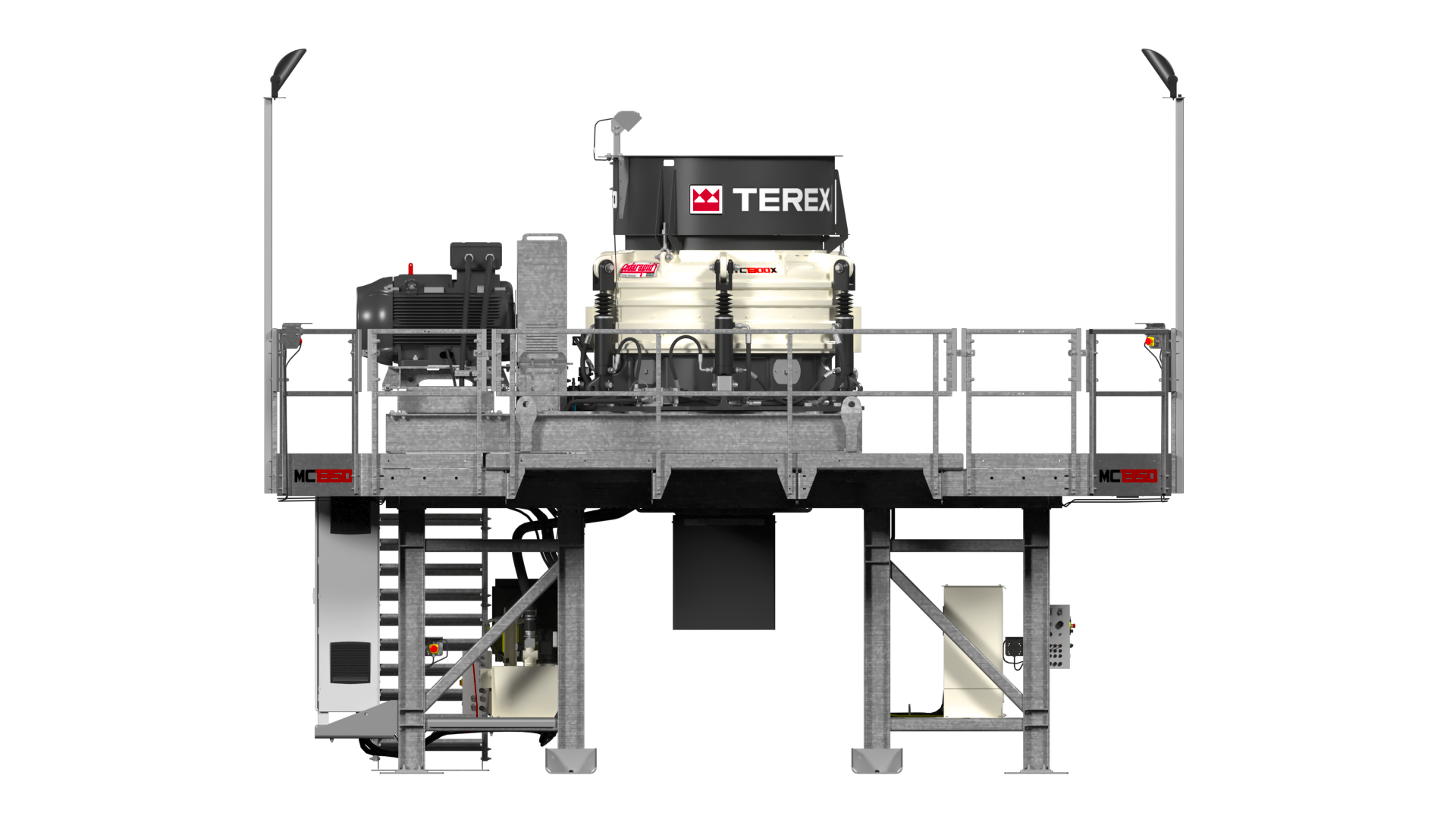

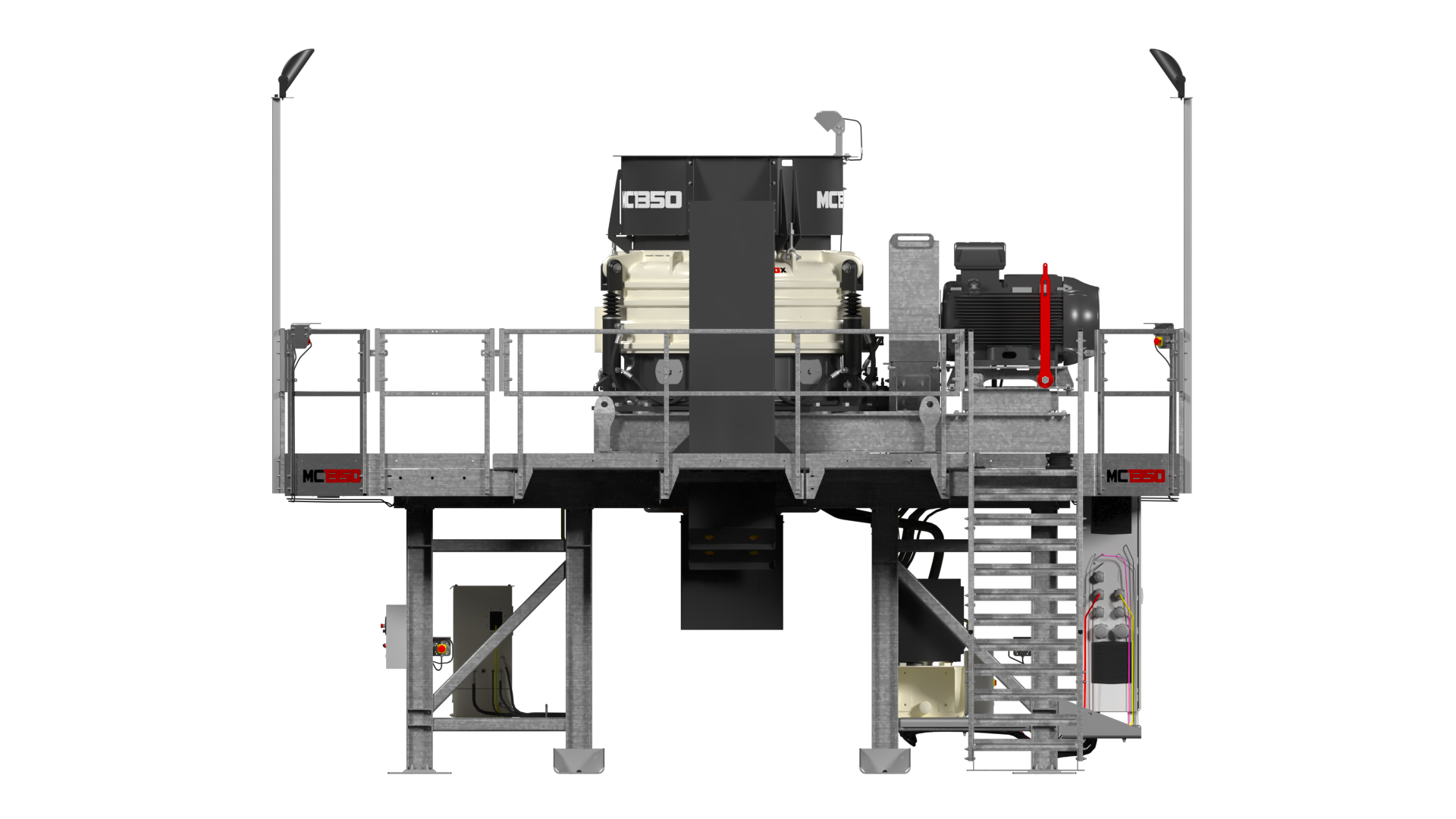

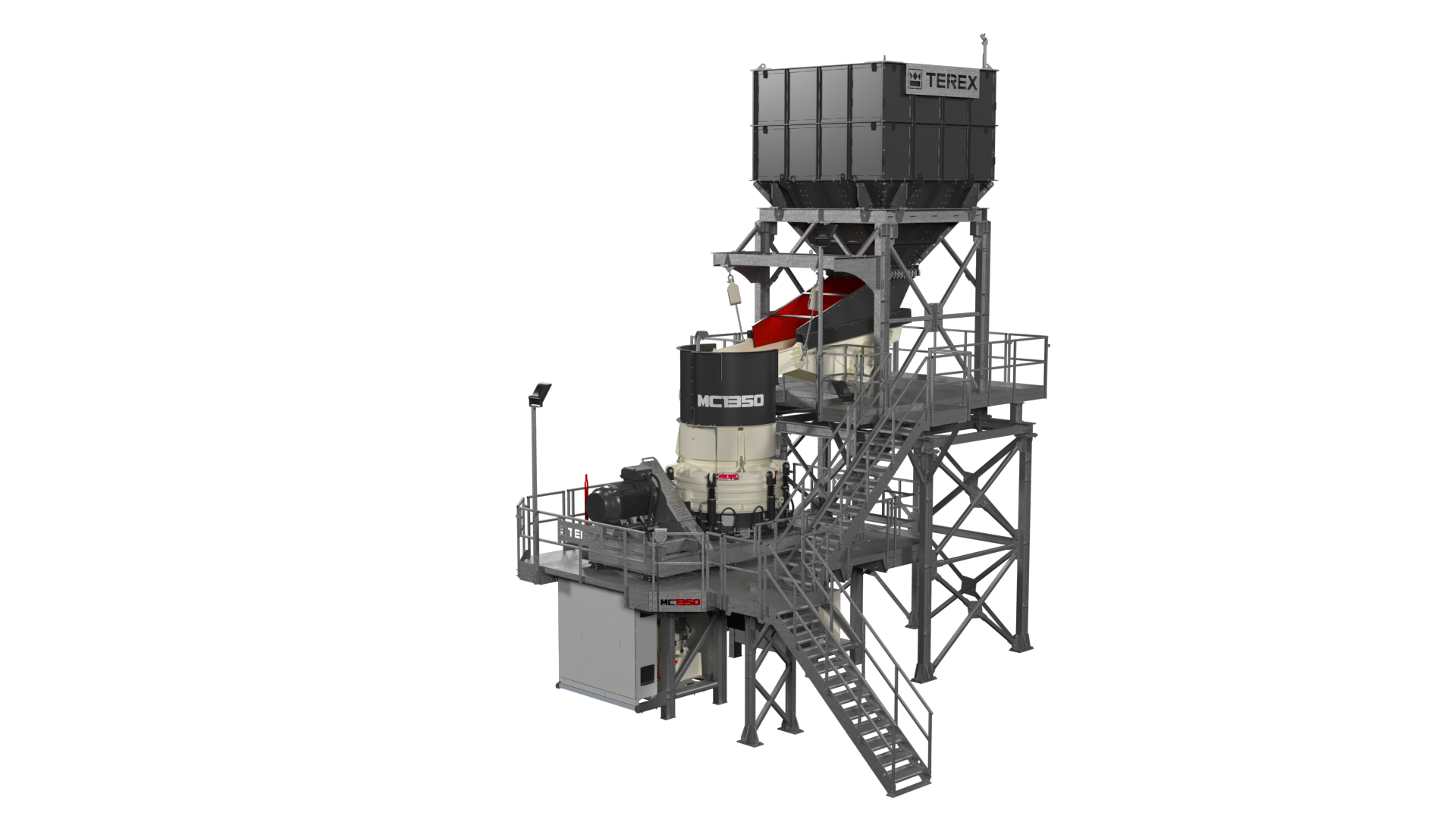

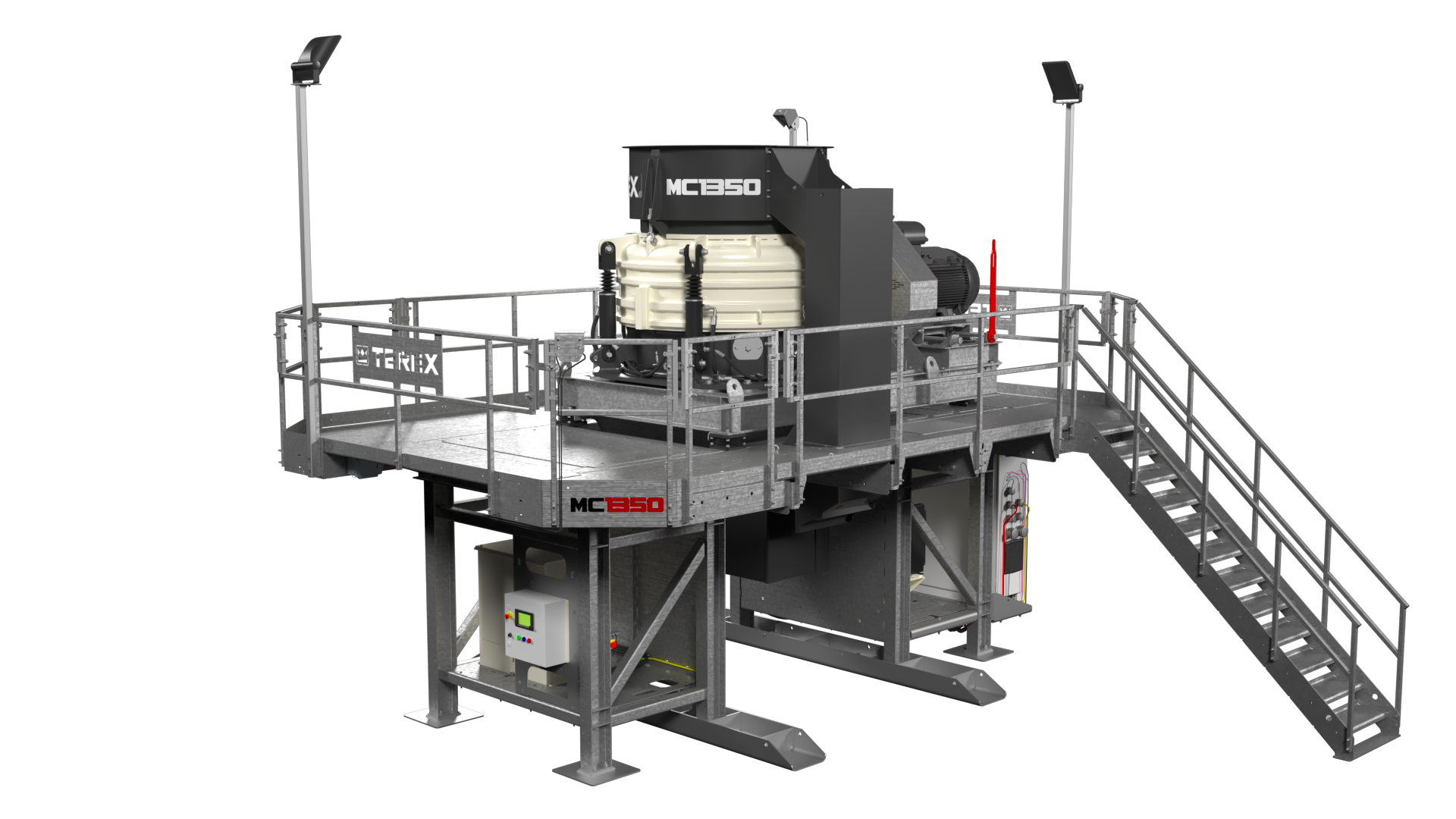

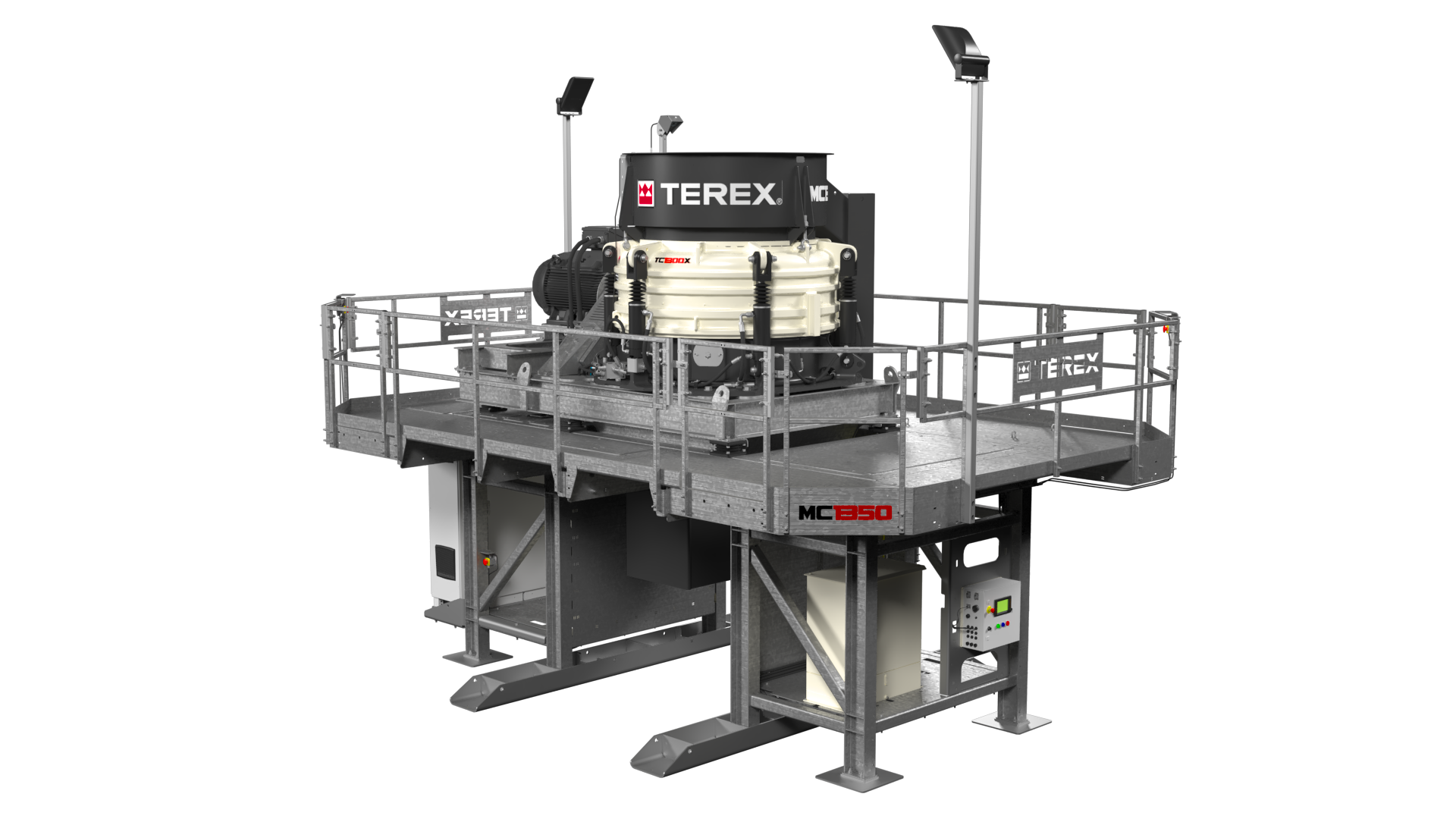

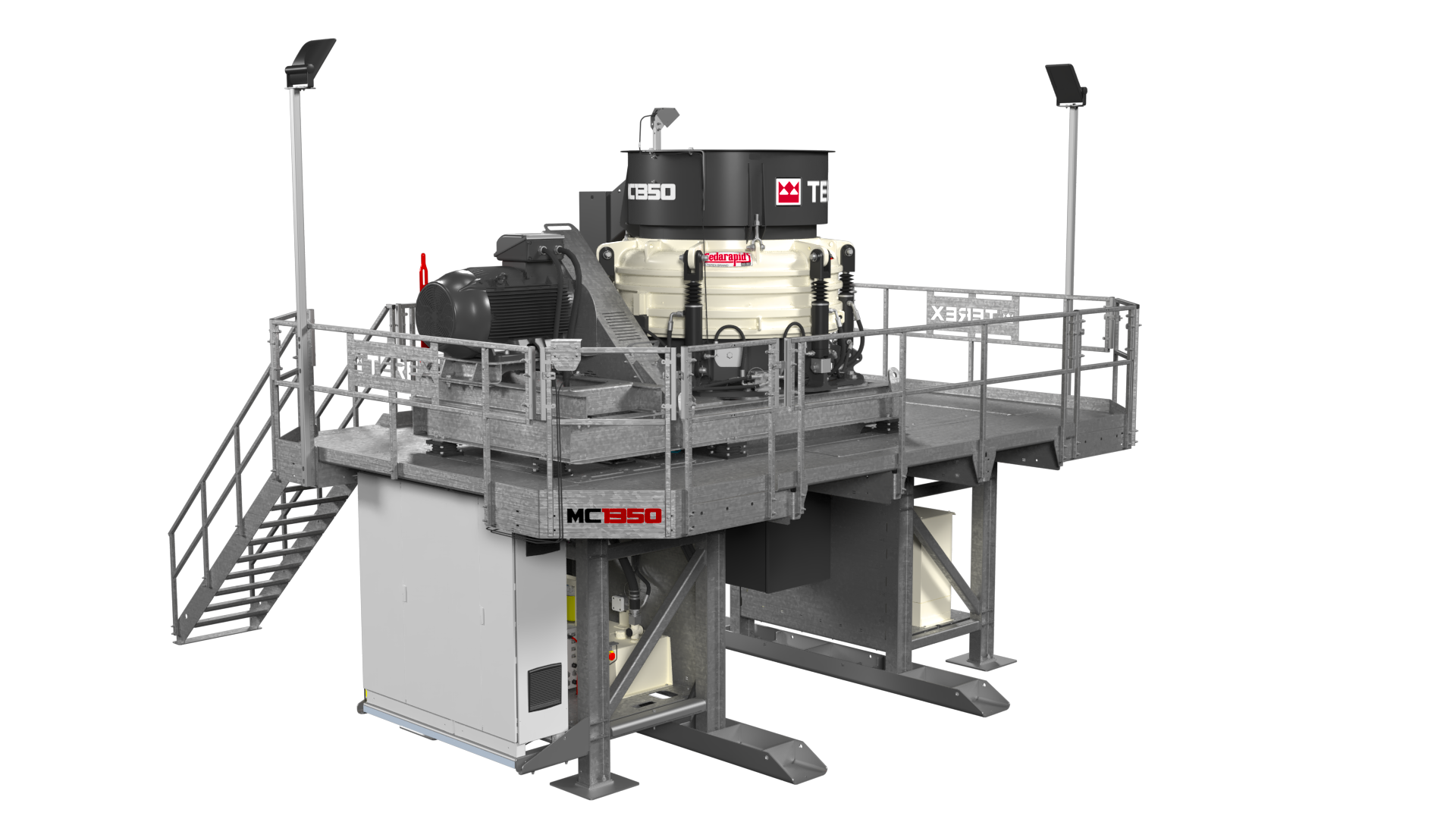

The MC1350 Modular Structure offers unmatched flexibility and convenience. Made from durable galvanized steel, the robust module integrates seamlessly into existing plant configurations. Its quick, on-site assembly with minimal wiring significantly reduces setup time, helping producers get up and running with minimal downtime.

Specifications
Downloads

Specification	Value
Weight	42,000 lbs / 19,000 kg
Working Dimensions	23'3"x16'1"x15'10" (LxWxH) / 7092x4900x4848 mm (LxWxH)
Motor Size	400 hp / 300 kW
Capacity	325-375 tph / 295-340 mtph
