The Cedarapids CRC380XHLS features the MVP380X combined with an LJ-TSV6203 High Lift Screen

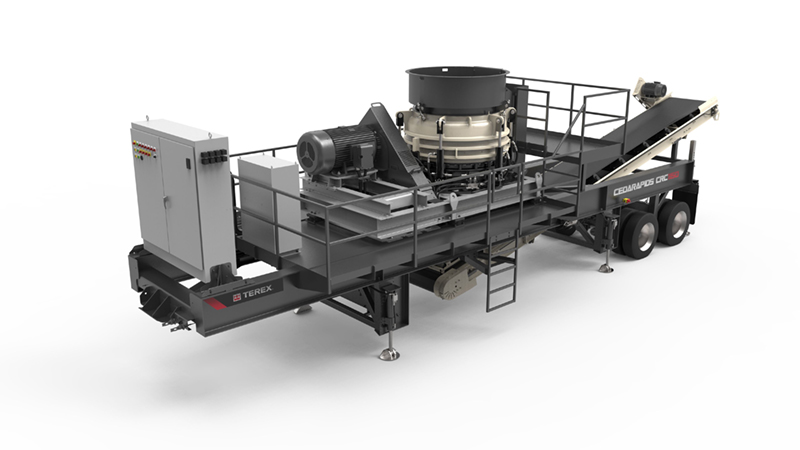

The Cedarapids® CRC1150 cone plant delivers big production at an affordable price. The highly mobile plant features the TC1150 cone crusher that utilizes high efficiency roller bearings and boasts several notable advancements that enhance performance and functionality. Key features include automated cone controls and larger closed side settings. The crusher is powered by a 300 hp (225kW) motor and drive, all mounted on a rubber isolated frame. The plant includes an oversize cone feed hopper extension with overflow chute, “straight-line” undercrusher conveyor, metal detector, and service platforms. Easy maintenance features include conveniently located grease banks and a ground access cone lubrication module.
|Weight||60,900 lbs / 50,800 kg|
|Transport Dimensions||46'11"x11'11"x13'6" (LxWxH) / 14300x3353x4115 mm (LxWxH)|
|Working Dimensions||46'11"x11'11"x14'6" (LxWxH) / 14300x3353x4420 mm (LxWxH)|
|Axles||2 Axle / 2 Axle|
|Capacity||165-320 tph / 150-290 mtph|
