CRC1150S
The CRC1150S is a highly mobile plant that combines a modern TC1150 300 HP Cone crusher with the highly efficient TSV 6x20 3 deck screen.
CRC1350
Cone Plant

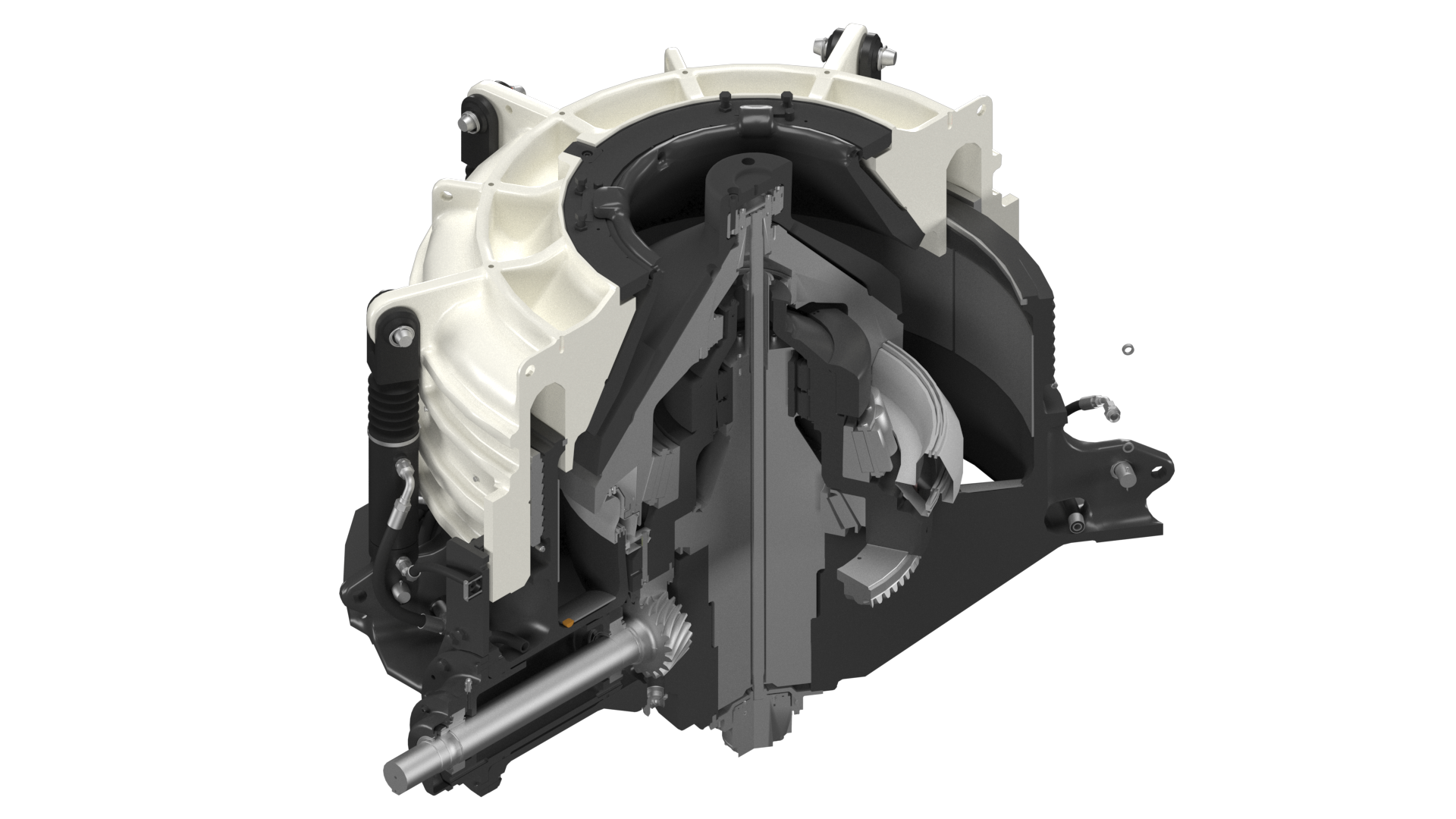

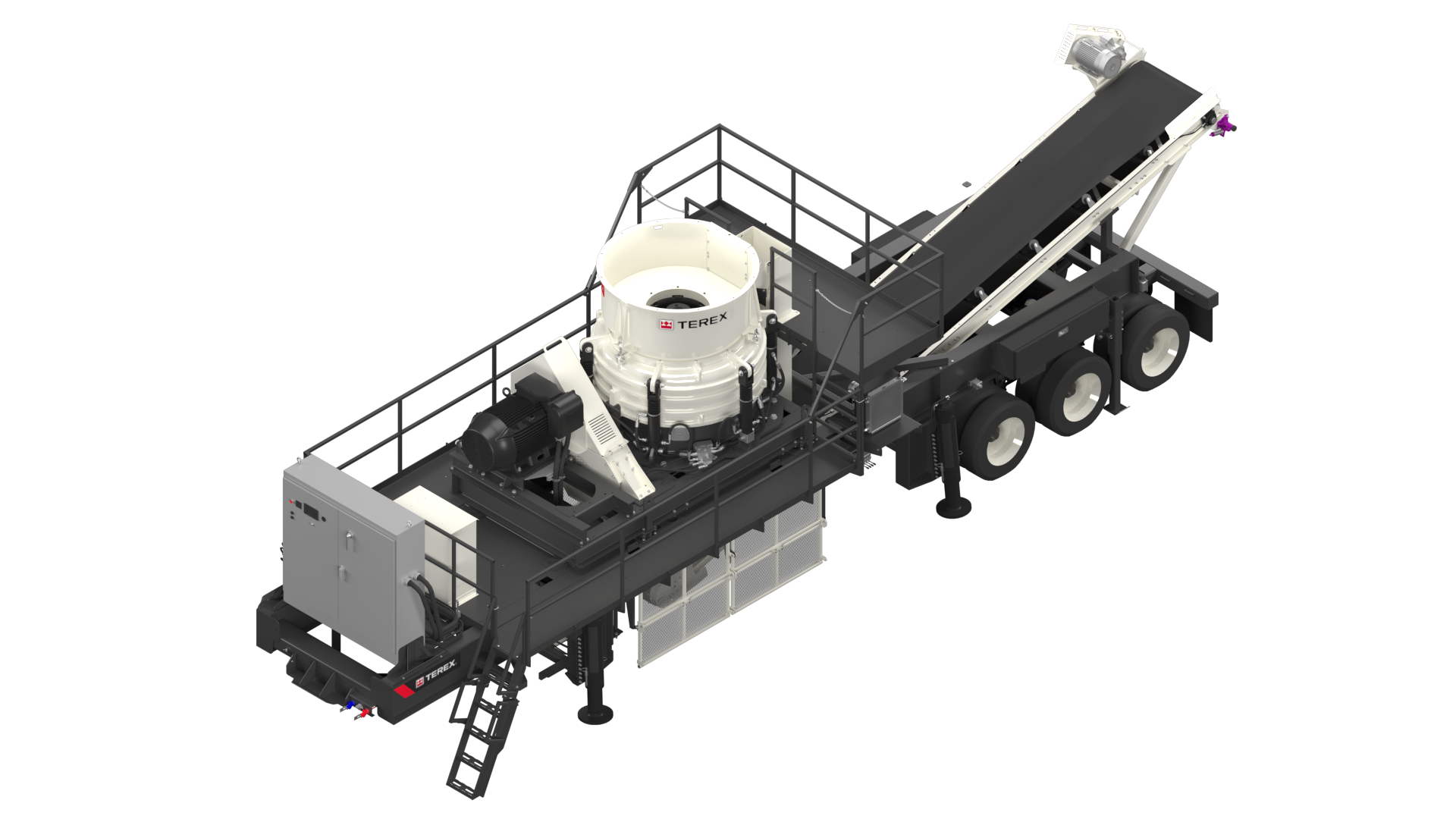

The Cedarapids® CRC1350 cone plant delivers big production at an affordable price. The highly mobile plant features the TC1300X cone crusher that utilizes high efficiency roller bearings and boasts several notable advancements that enhance performance and functionality. Key features include automated cone controls and larger closed side settings. The crusher is powered by a 400 hp (300 kW) motor and drive, all mounted on a rubber isolated frame. The plant includes an oversize cone feed hopper extension with overflow chute, “straight-line” undercrusher conveyor, metal detector, and service platforms. Easy maintenance features include conveniently located grease banks and a ground access cone lubrication module.
| Specification | Value |
|---|---|
| Weight | 82,944 Ibs / 37,623 kg |
| Transport Dimensions | 46'10"x11'11"x13'11" (LxWxH) / 14274x2896x4242 mm (LxWxH) |
| Working Dimensions | 46'10"x11'11"x15'3" (LxWxH) / 14274x2896x4648 mm (LxWxH) |
| Axles | 3 axles / 3 axles |
| Capacity | 325-375 STPH / 295-340 MTPH; Capacity @ 1" setting |
