Cedarapids TG Series Cone Crushers

The range of bronze bushing TG Series cone crushers are the latest addition to the world leading Cedarapids Cone Crusher Range.

These impressive cone crushers can be easily and efficiently set up to perform and deliver the best cost per ton cubicle product by selecting the optimum crushing cavity and eccentric throw to suit the application requirements. From a coarse secondary right through to fine quaternary, the TG series cone crushers will consistently exceed all performance expectations.

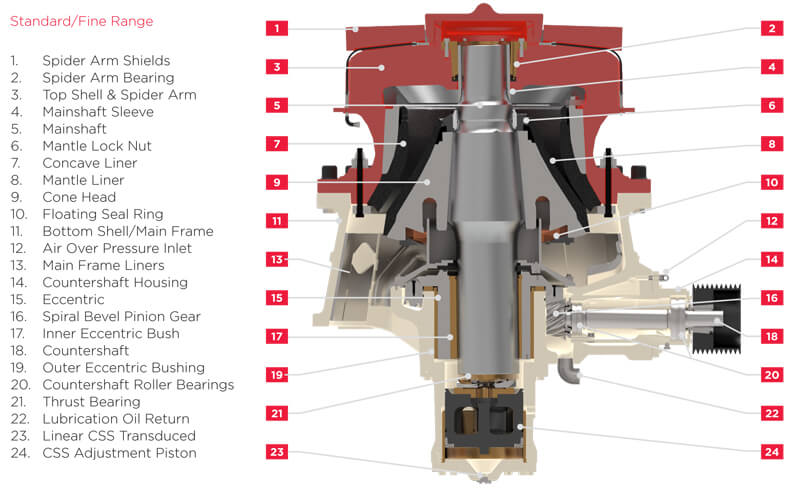

Cross section of standard TG Cone
  • TG120_1_thumbnail

    TG120

    Specification Value
    Motor Size 120 hp 90 kW
    Max Feed Size 5" 125mm
    Weight 12,125 lbs 5,500 kg
    CSS Range 1/4"-1 1/8" 6-29 mm
    Max Capacity 121-143 tph 110-130 mtph
    Learn more

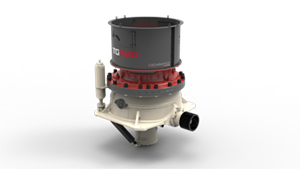

  • TG220_1_thumbnail

    TG220

    Specification Value
    Motor Size 215 hp 160 kW
    Max Feed Size 6 1/2" 165mm
    Weight 20,944 lbs 9,500 kg
    CSS Range 1/4"-1 1/4" 6-32 mm
    Max Capacity 215-237 tph 195-215 mtph
    Learn more
  • TG320_1_thumbnail

    TG320

    Specification Value
    Motor Size 335 hp 250 kW
    Max Feed Size 7 1/2" 190 mm
    Weight 33,069 lbs 15,000 kg
    CSS Range 5/16"-1 1/2" 8-38 mm
    Max Capacity 419-452 tph 380-410 mtph
    Learn more
  • TG420_1_thumbnail

    TG420

    Specification Value
    Motor Size 422 hp 315 kW
    Max Feed Size 9 7/16" 240 mm
    Weight 55,556 lbs 25,200 kg
    CSS Range 1/2"-1 3/4" 13-44 mm
    Max Capacity 705-750 tph 64-680 mtph
    Learn more
  • TG820_1_thumbnail

    TG820

    Specification Value
    Motor Size 805 hp 600 kW
    Max Feed Size 1' 5/8" 320 mm
    Weight 110,231 lbs 50,000 kg
    CSS Range 1/2"-2 1/2" 13-64 mm
    Max Capacity 1543-1709 tph 1400-1550 mtph
    Learn more
  • TG1020_1_thumbnail

    TG1020

    Specification Value
    Motor Size 1006 hp 750 kW
    Max Feed Size 1' 2" 355 mm
    Weight 169,756 lbs 77,000 kg
    CSS Range 1/2"-2 3/4" 13-70 mm
    Max Capacity 2315-2535 tph 2100-2300 mtph
    Learn more
