Cedarapids TGS Series Cone Crushers

The TGS cone utilises the same base mount, drive train and power rating as its equivalent TG cone and is the ideal choice for large feed secondary applications. It can be utilised in a control fed sand & gravel primary application.

The TGS cone can accept a 65-80% larger feed in size compared to all other types of cones in the same power rating, and the steep angled head design accounts for an increased throughput in capacity and the ability to sustain an on/off feed. The consistent feed in opening, through the full wear life of the liners, results in no reduction in maximum feed size and limited fluctuation in output gradings.

Cross section of TGS Cone

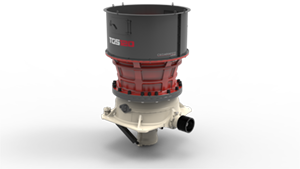

  • TGS120_1_thumbnail

    TGS120

    Specification Value
    Motor Size 120 hp 90 kW
    Max Feed Size 7 1/2" 190 mm
    Weight 15,102 lbs 6,850 kg
    CSS Range 3/8"-1 3/8" 9-35 mm
    Max Capacity 146-158 tph 132-143 mtph
    Learn more
  • TGS220_1_thumbnail

    TGS220

    Specification Value
    Motor Size 215 hp 160 kW
    Max Feed Size 10 13/16" 275 mm
    Weight 26,676 lbs 12,100 kg
    CSS Range 3/4"-1 3/8" 19-35 mm
    Max Capacity 358-379 tph 325-344 mtph
    Learn more
  • TGS320_1_thumbnail

    TGS320

    Specification Value
    Motor Size 335 hp 250 kW
    Max Feed Size 1'1" 330 mm
    Weight 42,990 lbs 19,500 kg
    CSS Range 1 1/8"-1 7/8" 29-48 mm
    Max Capacity 634-662 tph 575-601 mtph
    Learn more
  • TGS420_1_thumbnail

    TGS420

    Specification Value
    Motor Size 422 hp 315 kW
    Max Feed Size 1'3 3/16" 385 mm
    Weight 80,469 lbs 36,500 kg
    CSS Range 1 1/2"-2 3/4" 38-70 mm
    Max Capacity 1102-1157 tph 1000-1050 mtph
    Learn more
