The TGS cone utilises the same base mount, drive train and power rating as its equivalent TG cone and is the ideal choice for large feed secondary applications. It can be utilised in a control fed sand & gravel primary application.
The TGS cone can accept a 65-80% larger feed in size compared to all other types of cones in the same power rating, and the steep angled head design accounts for an increased throughput in capacity and the ability to sustain an on/off feed. The consistent feed in opening, through the full wear life of the liners, results in no reduction in maximum feed size and limited fluctuation in output gradings.

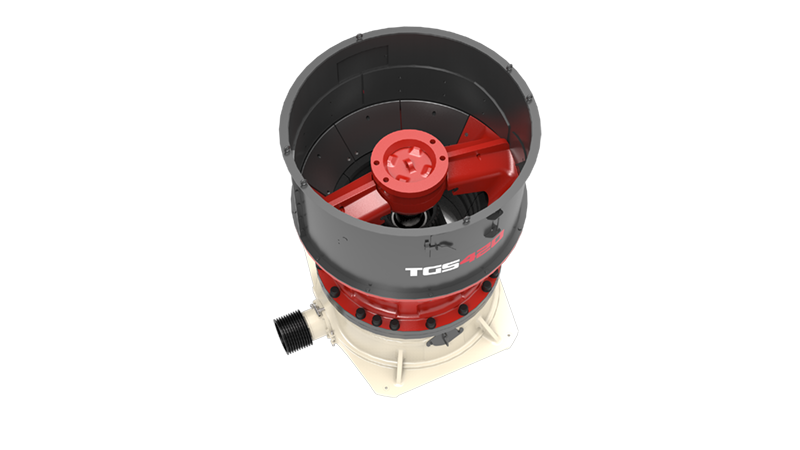

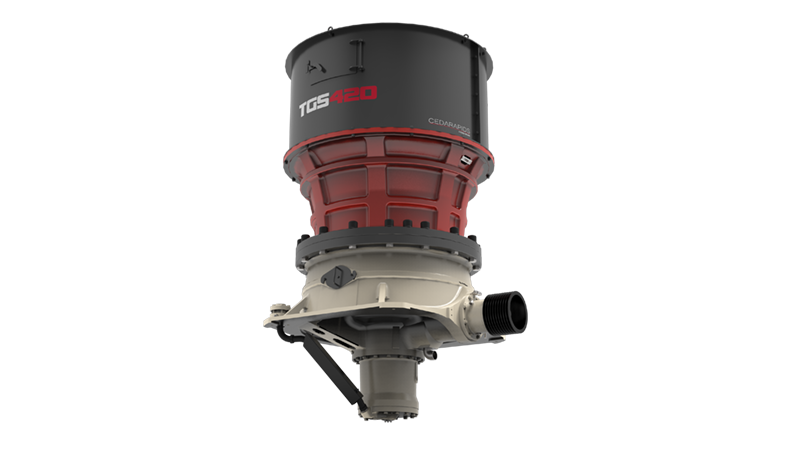

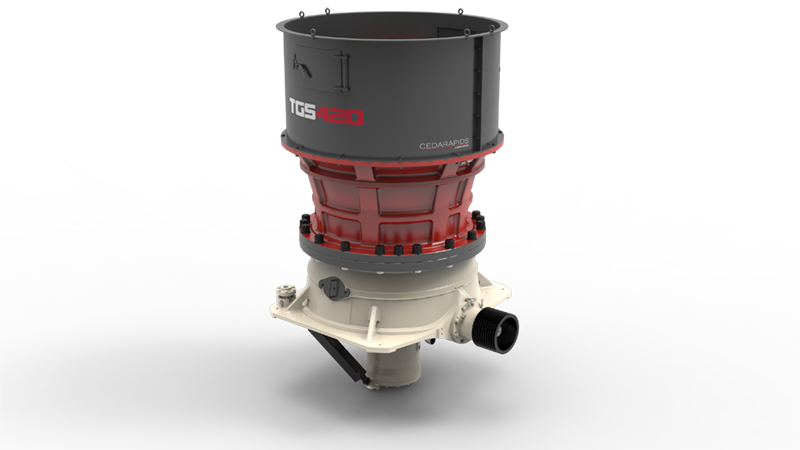

TGS420
Cone Crusher
The Cedarapids TGS420 Cone Crusher brings 422 hp of efficient power to demanding secondary crushing applications and is equally effective in controlled-feed primary sand & gravel operations. Built on the same base platform as the TG Series, the TGS420 is optimized to accept significantly larger feeds up to 65–80% more than similarly rated crushers, making it ideal for high-throughput environments.
Its steep-angle head design enhances material flow and allows for steady production, even under variable on/off feed conditions. With a consistent feed opening that remains effective throughout the life of the liners, the TGS420 ensures stable gradation and sustained performance.
| Specification | Value |
|---|---|
| Motor Size | 422 hp / 315 kW |
| Max Feed Size | 1'3 3/16" / 385 mm |
| Weight | 80,469 lbs / 36,500 kg |
| CSS Range | 1 1/2"-2 3/4" / 38-70 mm |
| Max Capacity | 1102-1157 tph / 1000-1050 mtph |
