TTS-620SE

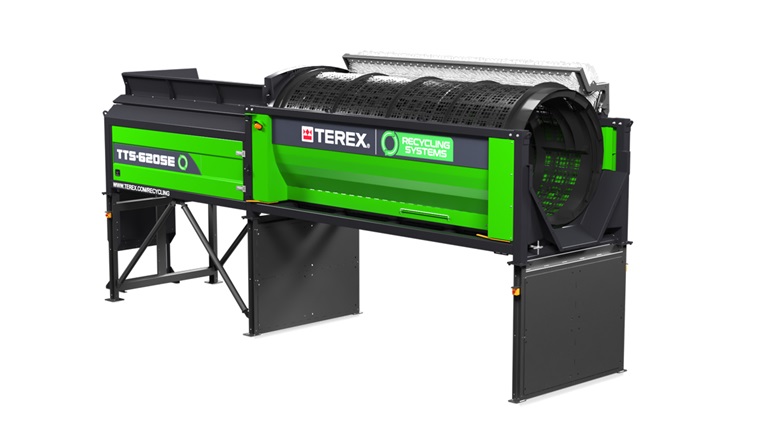

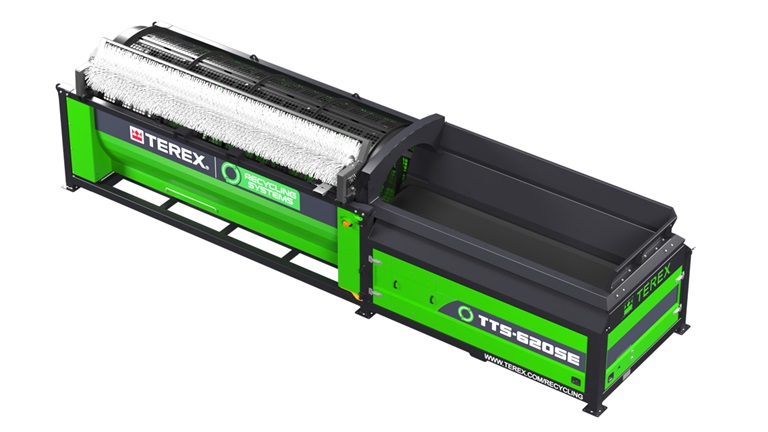

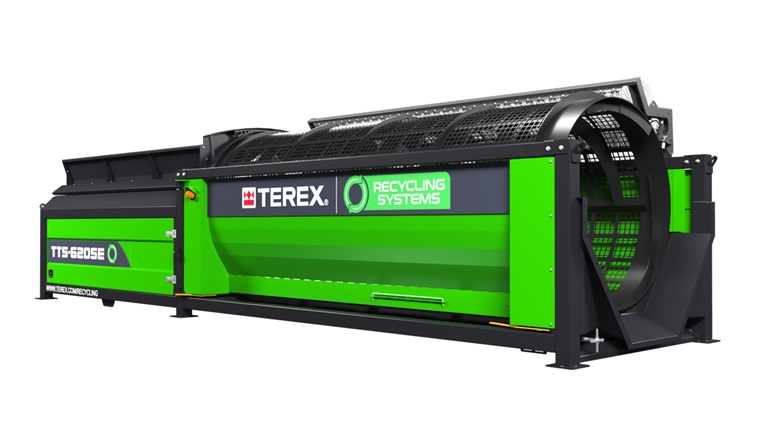

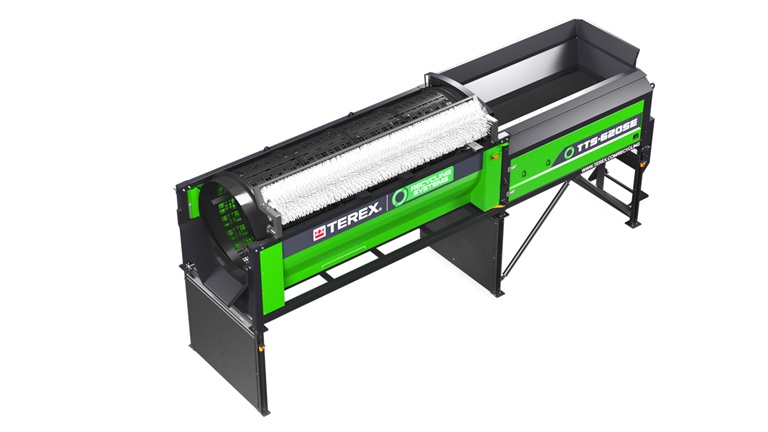

Terex Recycling Systems TTS-620SE Static Electric Trommel Screen offers operators unparalleled versatility in applications, production rates and effortless serviceability. Specifically designed for screening compost/organics, biomass, soil, gravel and waste, it stands as an ideal choice for your needs.

The TTS-620SE Static Trommel benefits from an electric head driven feed conveyor to prevent the slippage associated with a tail drive configuration whilst under load. This ensures a consistent material feed onto the screening drum, enhancing screening efficiency and throughput. Due to this, you can enjoy heightened operational efficiency, improved screening quality, and reduced maintenance needs. The controlled material feed minimises wear and tear, extending equipment lifespan, while the user-friendly design adds operator convenience. With increased versatility and optimised performance, the TTS-620SE Electric Trommel stands as a reliable solution for your diverse screening needs. Supplied with a free-standing control panel, the intuitive user interface allows for easy set up and running. Simple controls allow for quick adjustments to the feeder and drum speeds to tailor the trommel screen to suit your application.

Due to ever changing market conditions and demands of the modern trommel the machine will be available as a standalone unit or it can be incorporated into an existing plant or part of a new recycling plant. This will allow for easy customisation and adaptation to different applications and environments.

Sign Up For More Info
Contact Us

Feeder/Hopper

  • Electric Head Drum Drive System
  • Variable Belt Speed
  • Hopper Extensions
  • Fully Sealed to Reduce Spillage
  • Belt Options Available
  • Slide Out Feeder Cassette

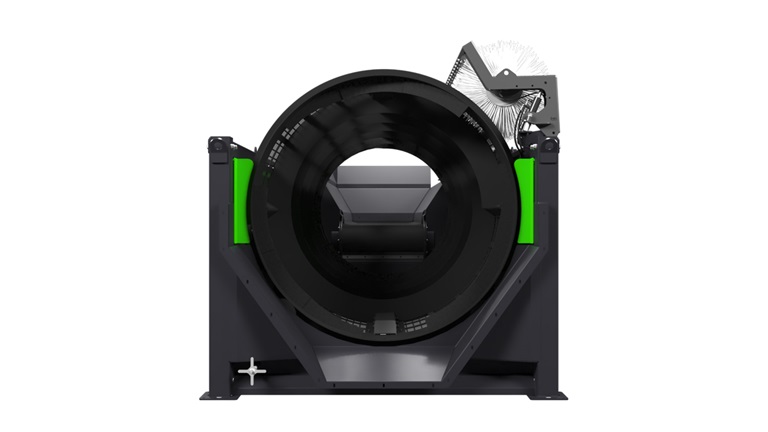

Drum

  • Horizontal drum with spiral design for material transfer
  • Variable drum speed
  • Various drum apertures available to suit screen material

Retractable Brush

  • 700mm (2’ 4”) brush to help clean the drum during operation
  • Easily removable for maintenance and application flexibility

Optional Support Legs

  • Leg structure 2m in length (other heights available on request)

Service Access

  • Full-length drum door opening on both sides, giving access for drum inspection and maintenance
  • Easily replaced drum which is compatible with other manufacturers screening drums

Access Doors

  • Double Sided Doors for easy maintenance access

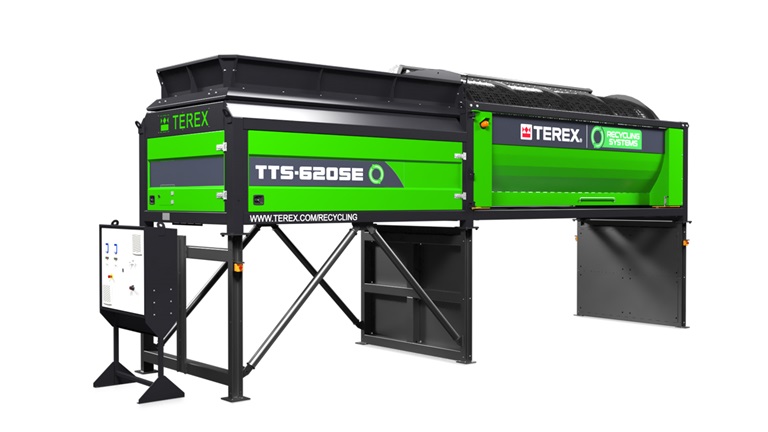

Control Panel

  • Free Standing Control Panel with Easy Operation Controls
  • Optional Intelligent Feed Setup

Technical Documentation

Measurements

Hopper Capacity 7.2yd cubed 5.5m cubed
Drum Length 18' 1" 5.5m
Drum Diameter 6 ft 7 in 2 m

Downloads

Others

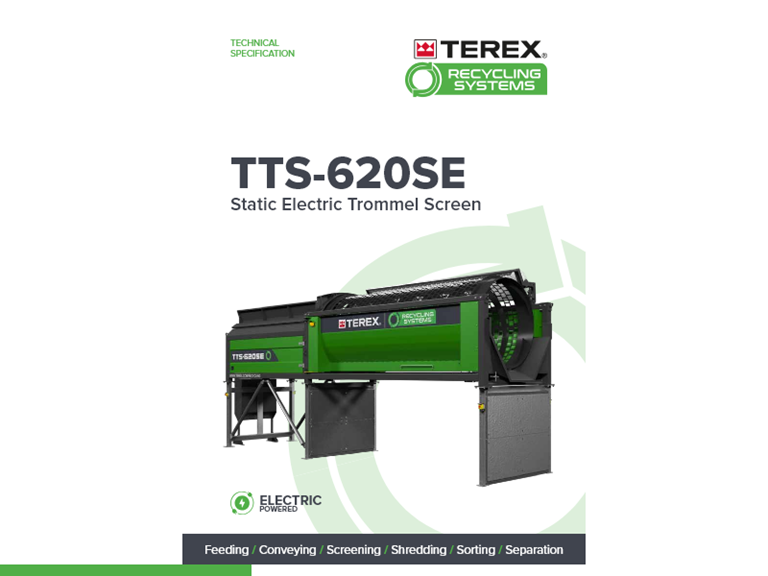

.pdf TTS-620SE Trommel Screen Brochure_ecaa8994-ae31-49af-98c2-90f0c849c4a4
TTS-620SE Trommel Screen Brochure

Related products

TSD-280 Pre-sorting Drum Screen Thumbnail

TSD-280

Drum Length 19’ 8”, 24’ 7” and 29’ 6”
Feeder 5’ 11” wide with 2’ 11” high sides
